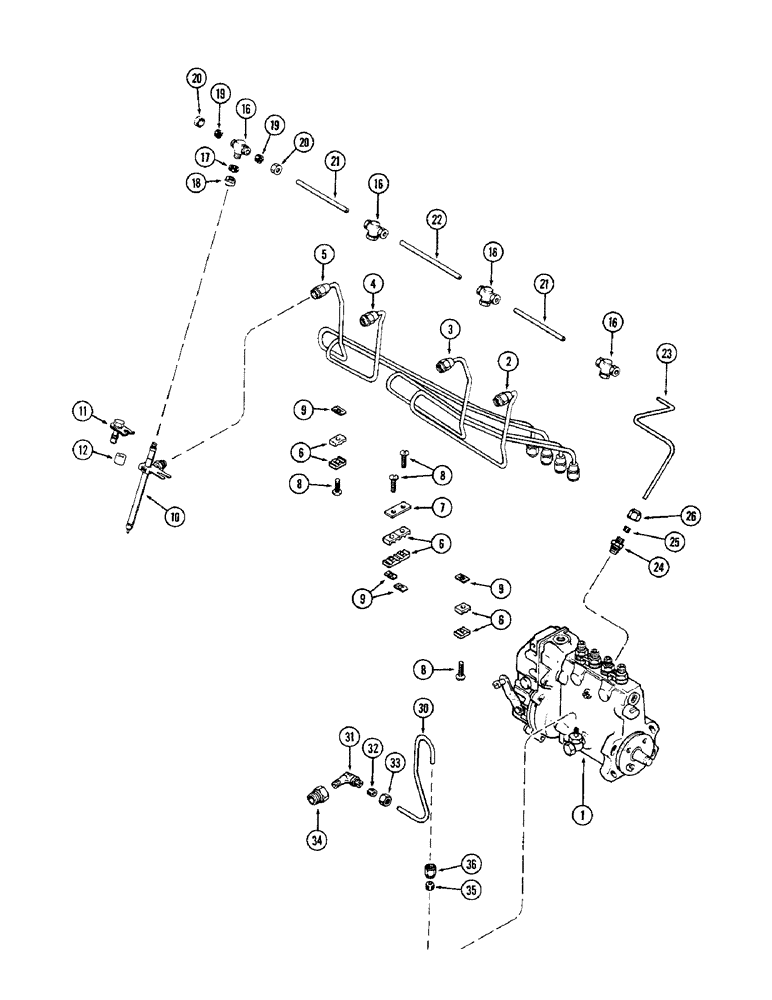

Запчасти Case 680CK (030) - FUEL INJECTION SYSTEM, (301B) DIESEL ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A62453
PUMP, FUEL INJECTION
PUMP ASSY. - fuel injection, See Figure 36
1шт.
2
A58702
TUBE
ASSY. - fuel injection, no. 1 cylinder
1шт.
3
A58703
TUBE
ASSY. - fuel injection, no. 2 cylinder
1шт.
4
A58704
TUBE
ASSY. - fuel injection, no. 3 cylinder
1шт.
5
A58705
TUBE
ASSY. - fuel injection, no 4 cylinder
1шт.
6
A58709
BRACKET
- clamp, injection tubes
8шт.
7
A58710
PLATE
- bracket
1шт.
8
163-19
SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"
- bracket (#10 x 1" N.C., sltd. hex. hd.)
4шт.
9
131-612
SPRING NUT,Flat, #10 - 24, 0.022" Thk
NUT - #10 Tinnerman
4шт.
10
A62809
NOZZLE CAP
NOZZLE ASSY. - fuel injector, See Figure 36
4шт.
A138322R
REMAN-INJECT NOZZLE
680CK SERIES-C (S/N 9111009 & AFTER) REMAN FOR NEW P/N A62809
4шт.
A138322C
CORE-NOZZLE, INJECT
Return Number
1шт.
11
A58695
CLAMP
ASSY. - nozzle
4шт.
12
A58696
SPACER
- nozzle clamp
4шт.
16
A58960
TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT
TEE ASSY. - nozzle leak-off
4шт.
17
A58962
GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk
-, Serial Range: tee-nozzle
4шт.
18
A58961
NUT
-, Serial Range: tee-nozzle
4шт.
19
222-102
SLEEVE,1/4" Tube
8шт.
20
87017024
TUBE NUT,1/2"-24
NUT - (For 1/4" tube)
8шт.
21
A58965
TUBE
- leak-off (4-5/8" long)
2шт.
22
A58964
TUBE
- leak-off (5-5/8" long)
1шт.
23
A58963
TUBE
- leak-off, no. 1, Serial Range: nozzle-valve
1шт.
24
A28098
VALVE
ASSY. - check (One way), Includes: Ref. 25 and 26
1шт.
25
222-102
SLEEVE,1/4" Tube
1шт.
26
87017024
TUBE NUT,1/2"-24
NUT - (For 1/4" tube)
1шт.
30
A59226
TUBE
- heat exchanger to injection pump
1шт.
31
222-43
ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF
ASSY., Includes: Ref. 32 and 33
1шт.
32
222-102
SLEEVE,1/4" Tube
1шт.
33
87017024
TUBE NUT,1/2"-24
NUT - (For 1/4" tube)
1шт.
34
222-53
ELBOW,3/8"-24 x 1/8 NPTF
BUSHING - reducer (3/4" P.T. to 1/4" P.T.)
1шт.
35
222-102
SLEEVE,1/4" Tube
1шт.
36
87017024
TUBE NUT,1/2"-24
NUT - (For 1/4" tube)
1шт.
Выбрано товаров: 32
