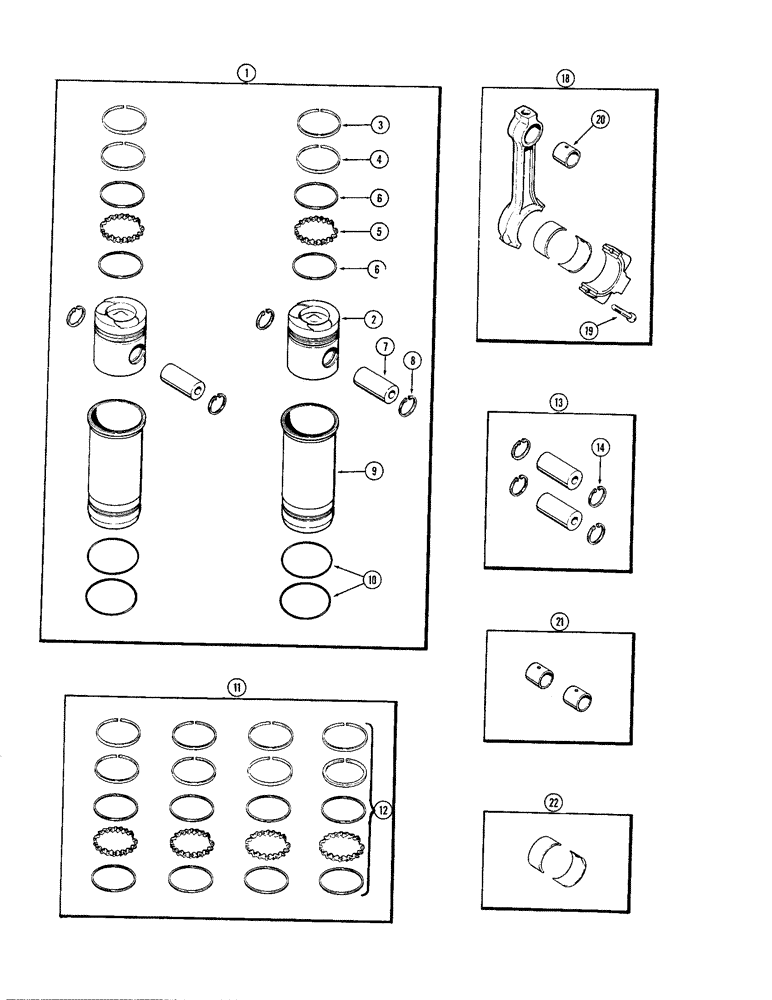

Запчасти Case 680CK (020) - PISTONS, (301B) DIESEL ENGINE, CONNECTING RODS (10) - ENGINE

1

A43714

KIT

PISTON KIT - (Set of 2), Includes: Ref. 2 - 10

2шт.

2

A64766

PISTON

- (4-3/8" dia.)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11 or 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11or 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 11 or 12)

4шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - oil control ring (Order ref. 11 or 12)

2шт.

7

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

2шт.

8

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

9

A59093

SLEEVE

- cylinder liner

2шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve (4-1/2 x 4-3/4 x 1/8")

4шт.

11

A43031

KIT

RING KIT - piston re-ring (Set of 4), Includes: Ref. 12

1шт.

12

A43028

RING, SET

RING KIT - piston re-ring (Set of 1)

4шт.

13

A21725

KIT

PIN KIT - piston (Set of 2)

2шт.

14

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

18

A62952

ROD

ASSY. - connecting, Includes: Ref. 19 and 20

4шт.

19

A66618

FLANGE BOLT

BOLT - conn. rod cap (Replaces A65757)

2шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 21)

1шт.

21

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

22

A43173

BEARING LINER

LINER SET - conn. rod brg. (Standard) (Set of 2)

4шт.

22

A42478

BEARING LINER

LINER SET - conn. rod. brg. (-.002") (Set of 2)

4шт.

22

A42479

BEARING LINER

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

22

A42480

BEARING LINER

LINER SET - conn. rod. brg. (-.020") (Set of 2)

4шт.

22

A42481

BEARING LINER

LINER SET - conn. rod. brg. (-.030") (Set of 2)

4шт.
