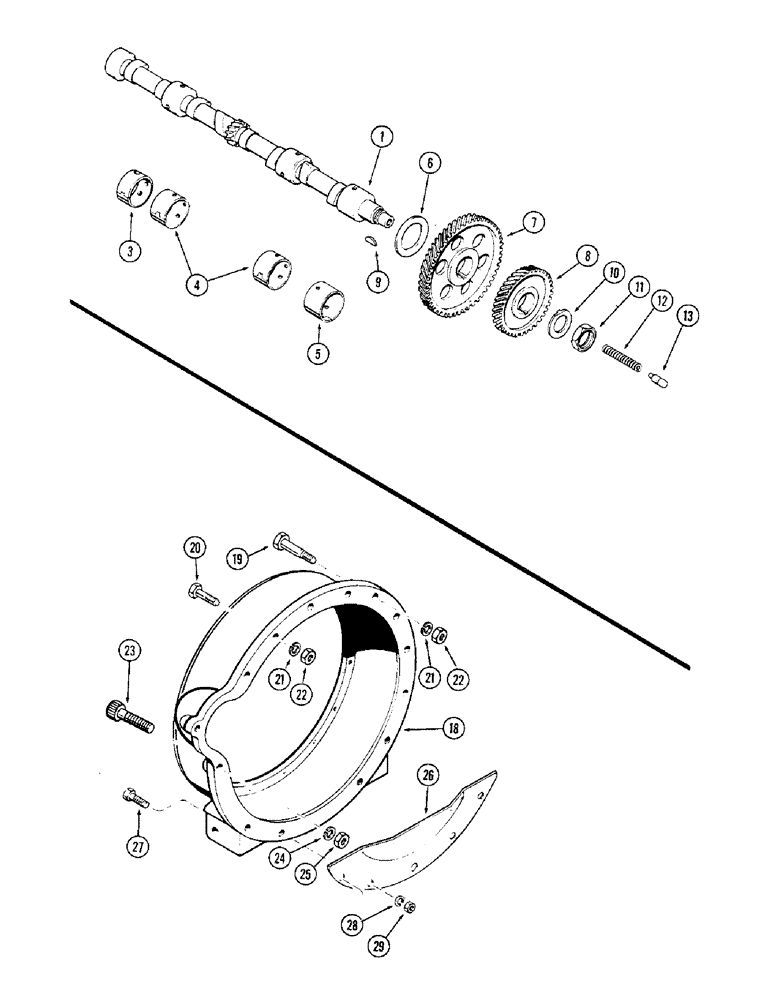

Запчасти Case 680CK (019A) - CAMSHAFT, (301B) DIESEL ENGINE, FLYWHEEL HOUSING (10) - ENGINE

1

A62733

SHAFT

CAMSHAFT

1шт.

A23577

KIT

BUSHING SET - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust (2-1/4 x 3-1/4 x 1/8")

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (5/16 x 1-5/16" hi-pro)

1шт.

10

A58594

LOCK WASHER

- tab, camshaft nut lock

1шт.

11

A58595

NUT

- camshaft

1шт.

12

CASA27853

SPRING

- thrust plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.

18

A9397

HOUSING

- flywheel

1шт.

19

A61040

STEP BOLT

BOLT - shoulder (1/2 x 3" N.C. hex.)

1шт.

19

A61041

STEP BOLT

BOLT - shoulder (1/2 x 2-7/16" N.C. hex.)

1шт.

20

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Housing Hex, 1/2"-13 x 1 5/8", G5

3шт.

20

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- housing (1/2 x 2-1/4" N.C. hex.)

3шт.

21

92-8

LOCK WASHER,1/2"

6шт.

22

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

23

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - housing (3/4 x 3" N.C., 12 pt. hd.)

2шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25

25-1012

NUT,3/4"-10, G5

2шт.

26

A58931

GUARD

SHIELD - dust, flywheel

1шт.

27

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- shield (1/2 x 3/4" N.C. hex.)

2шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.
