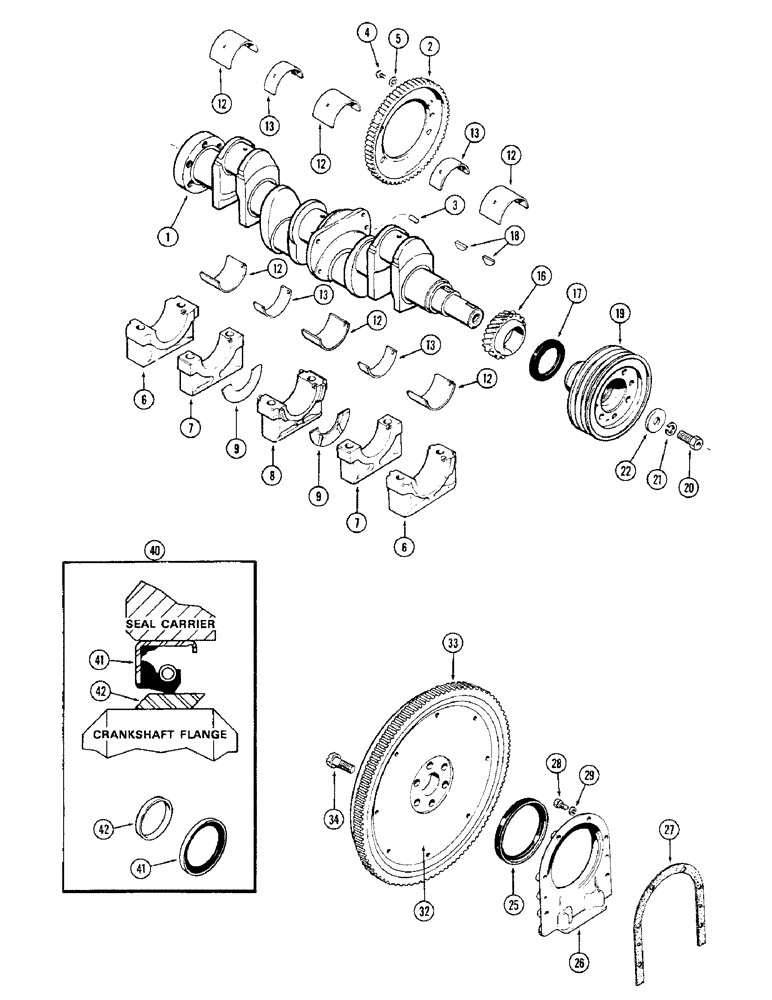

Запчасти Case 680CK (018) - CRANKSHAFT AND FLYWHEEL, (301B) DIESEL ENGINE, WEAR SEAL KIT (10) - ENGINE

1

A58889

CRANKSHAFT

1шт.

2

A62450

GEAR

- balancer drive

1шт.

3

A8134

PIN

- balancer gear locating (3/8 x 3/4")

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - drive gear (3/8 x 3/4" N.F. flat sckt. hd.)

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A58783

BEARING CAP

CAP - main bearing, front & rear (Wide) (Repalces A58573)

2шт.

7

A58784

BEARING CAP

CAP - main bearing, intermediate (Narrow)

2шт.

8

A58785

BEARING CAP

CAP - main bearing, thrust, center (Wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing (Standard) (.185")

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing (Oversize) (.191")

2шт.

12

A43163

BEARING LINER

LINER SET - main brg., wide (Std.) (Set of 2)

3шт.

12

A42486

LINING

LINER SET - main brg., wide (-.002") (Set of 2)

3шт.

12

A42487

LINER

SET - main brg., wide (-.010") (Set of 2)

3шт.

12

A42488

LINER

SET - main brg., wide (-.020") (Set of 2)

3шт.

12

A42489

BEARING

LINER SET - main brg., wide (-.030") (Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main brg., narrow (Std.) (Set of 2)

2шт.

13

A42482

LINING

LINER SET - main brg., narrow (-.002") (Set of 2)

2шт.

13

A42483

LINING

LINER SET - main brg., narrow (-.010") (Set of 2)

2шт.

13

A42484

KIT

LINER SET - main brg., narrow (-.020") (Set of 2)

2шт.

13

A42485

LINING

LINER SET - main brg., narrow (-.030") (Set of 2)

2шт.

16

A58573

GEAR

- crankshaft

1шт.

17

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A60012

PULLEY

- fan drive

1шт.

20

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex, sckt. hd.)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

25

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See ref. 40)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil seal retainer

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

29

92-6

LOCK WASHER,3/8"

6шт.

32

A60500

FLYWHEEL ASSY., Includes: Ref. 33

1шт.

33

A58778

GEAR

- ring, starter

1шт.

34

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.F. hex.)

6шт.

40

A43194

KIT

SEAL KIT - wear, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-/4 x 1/2")

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16")

1шт.
