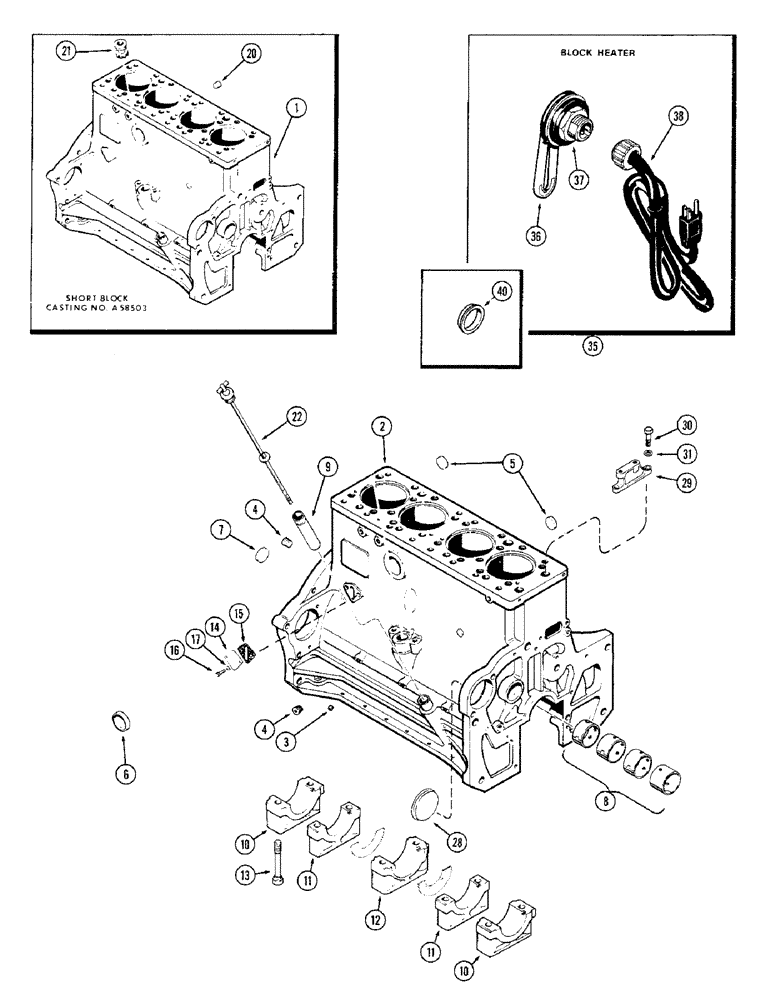

Запчасти Case 680CK (016) - CYLINDER BLOCK, (301B) DIESEL ENGINE, CYLINDER BLOCK HEATER (10) - ENGINE

1

A43053

BLOCK

ASSY. - short (Casting no. A58503) (Incl. stripped block, piston assy., conn. rods & brgs., crankshaft & brgs., camshaft & timing gears), Includes: Ref. 2 - 17

1шт.

2

NLS

NO LONGER SERVICED

ASSY. - stripped (Casting no. A58506), Includes: Ref. 3 - 17

1шт.

3

221-1041

PLUG

- oil gallery (1/8" P.T., sltd. hd.)

3шт.

4

221-1843

PLUG

- oil gallery (3/8" P.T., sckt. hd.)

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23577

KIT

BUSHING - camshaft

1шт.

9

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

10

A58783

BEARING CAP

CAP - main bearing, front & rear

2шт.

11

A58784

BEARING CAP

CAP - main bearing, intermediate

2шт.

12

A58785

BEARING CAP

CAP - main bearing, thrust, center

1шт.

13

A58566

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" N.C. hex.)

10шт.

14

G11702

COVER

- fuel pump opening

1шт.

15

A65561

GASKET

- cover

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Cover Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

20

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - L.H. side (3/4" P.T., sckt. hd.)

1шт.

21

A34266

DRIVE

ASSY. - tachometer

1шт.

22

A20739

GAUGE

DIPSTICK ASSY. - oil level

1шт.

28

A29268

PLUG

COVER - pump opening (3-1/4" cup type)

1шт.

29

A61155

BRACKET

- compressor mounting

1шт.

30

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Mounting bracket Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

35

A42279

HEATER

ASSY. - block, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

37

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - element (1-3/4 x 2 x 1/8")

1шт.

38

A42297

LAMP

CORD ASSY. - heater

1шт.

A44006

SLEEVE

KIT - block heater adapter, Includes: Ref. 40

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - heater (2-1/16" O.D.)

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - heater (2-1/8" O.D.)

1шт.
