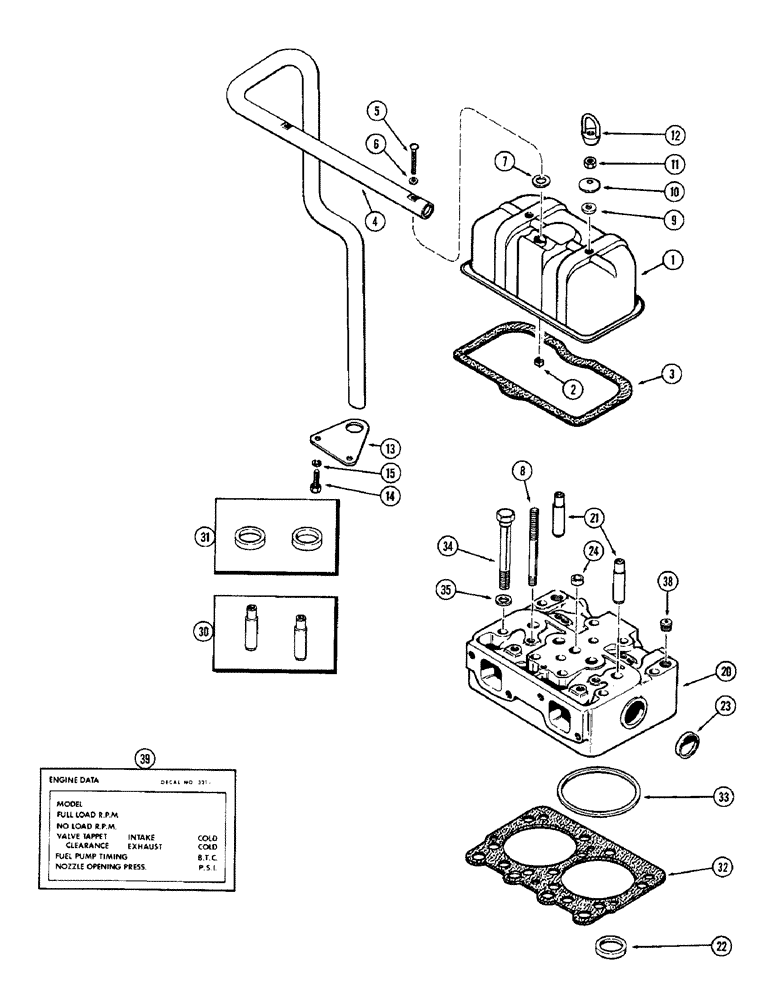

Запчасти Case 680CK (012) - CYLINDER HEAD AND COVER, (301B) DIESEL ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
ASSY. - cylinder head, Includes: Ref. 2
2шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - 1/4" N.C. Tinnerman
1шт.
3
A65734
CYLINDER HEAD GASKET
- cover
2шт.
4
A58733
TUBE
- breather
1шт.
5
75-440
SCREW
- breather tube (1/4 x 2-1/2" N.C., rd. hd.)
2шт.
6
A34133
GASKET
- tube, upper (9/32 x 1/2 x 3/64" fiber)
2шт.
7
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
- tube, lower (11/16 x 1-1/4 x 1/4")
2шт.
8
A60885
STUD
- cover & head (7/16" N.C. x 6-7/16")
4шт.
9
A23684
GASKET
GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)
4шт.
10
A23683
WASHER
- cover stud (Dished)
4шт.
11
25-107
NUT,7/16"-14, G5
- cover stud (7/16" N.C. hex.)
2шт.
12
A60567
EYE
- engine lifting
2шт.
13
A58734
BRACKET
- breather tube
1шт.
14
193-528
SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"
BOLT - bracket & oil pan (3/8 x 1-1/2" N.C. Sems)
2шт.
15
195-25
WASHER,3/8"
- spacer (13/32 x 13/16 x 1/16")
1шт.
20
A58867
CYLINDER
HEAD ASSY. - cylinder (Casting no. A58522), Includes: Ref. 21 - 24
2шт.
21
NSS
NOT SOLD SEPARAT
GUIDE - valves (Order ref. 30)
4шт.
22
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order ref. 31)
2шт.
23
A34124
PLUG,Cup, 1 5/8", Stainless
- (1-5/8" cup type)
2шт.
24
A58620
PLUG,Cup, 3/4", Stainless
- (3/4" cup type)
3шт.
30
A41781
GUIDE
KIT - valves (Set of 2)
4шт.
31
A44010
INSERT
KIT - exhaust valve seat (Set of 2) (Replaces A57485)
2шт.
32
A62216
GASKET
- cylinder head
2шт.
33
A59095
GASKET
RING - fire (Standard) (1/16" thick, plain)
4шт.
33
A42595
GASKET
RING - fire (Oversize) (5/64" thick w/blue stripe)
4шт.
34
A62732
STEP BOLT
BOLT - cyl. head to block (5/8 x 5-5/8" N.C. hex.)
20шт.
35
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - cyl. head bolt (21/32 x 1 x 3/16")
20шт.
39
321-2314
DECAL - engine data (On cover)
1шт.
Выбрано товаров: 29
