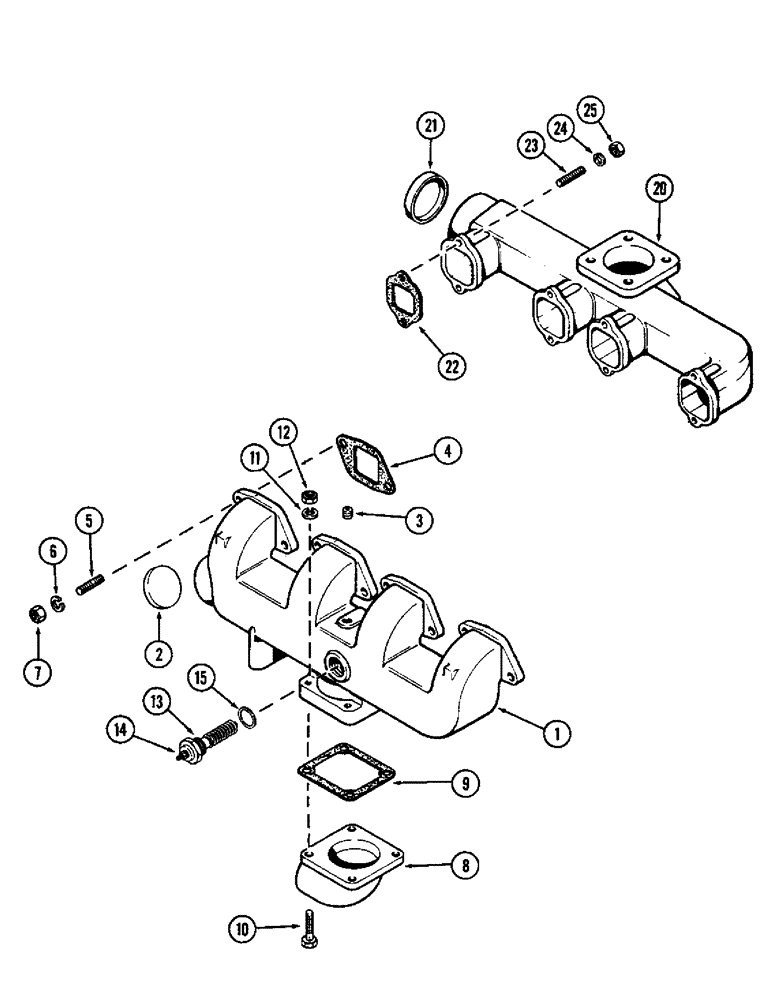

Запчасти Case 680CK (010) - MANIFOLDS, (301B) DIESEL ENGINE (10) - ENGINE

1

A59225

MANIFOLD

ASSY. - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.)

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A59077

STUD

- intake manifold (3/8" N.C. x 1-13/16")

8шт.

6

92-6

LOCK WASHER,3/8"

8шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

8

A60458

ELBOW

- intake manifold

1шт.

9

A58910

GASKET

-, Serial Range: elbow-manifold

1шт.

10

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

Elbow Hex, 3/8"-16 x 1 5/8", G5

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

13

A37775

HEATER

ASSY. - intake manifold

1шт.

14

129-503

NUT,1/4"-20, Brass

Heater terminal 1/4"-20, Brass

1шт.

15

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

20

A64967

MANIFOLD

ASSY. - exhaust, Includes: Ref. 21

1шт.

21

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type)

1шт.

22

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

23

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-13/16")

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., Seez-Pruf

8шт.
