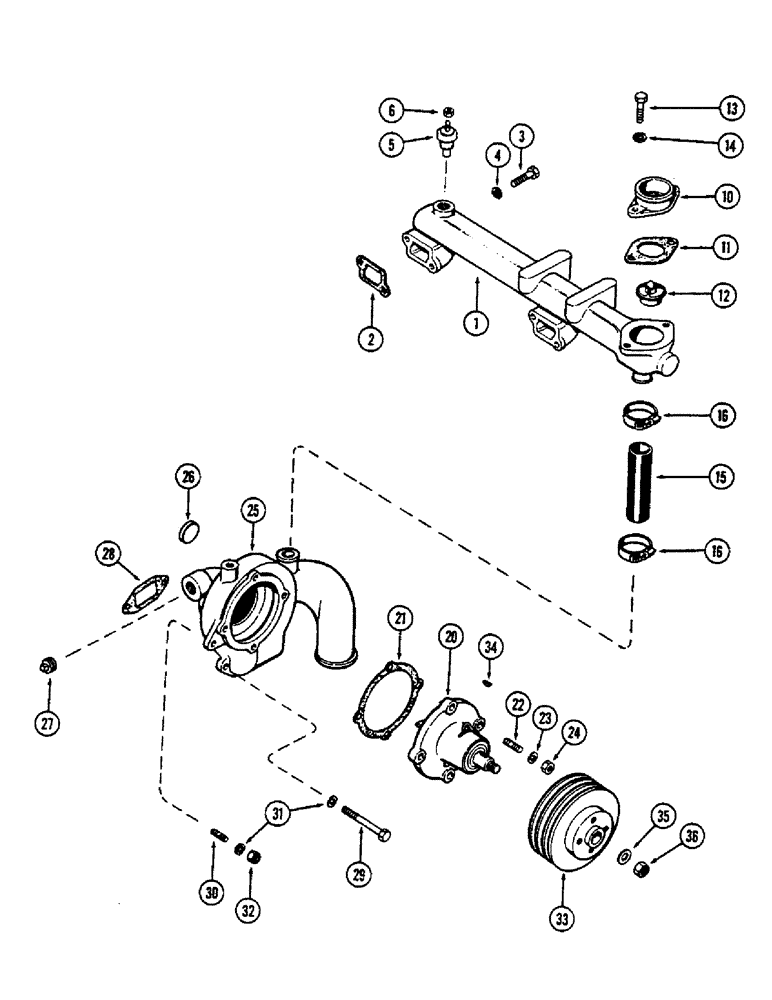

Запчасти Case 680CK (008) - WATER MANIFOLD AND THERMOSTAT, (301B) DIESEL ENGINE, WATER (10) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

A58637

MANIFOLD GASKET

- water manifold

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- manifold (3/8 x 1-1/2" N.C. hex.)

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

5

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

- unit terminal (#10 N.F. hex., brass)

1шт.

10

A58736

HOUSING

- thermostat

1шт.

11

G46907

GASKET

-, Serial Range: housing-manifold

1шт.

12

A57641

THERMOSTAT

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to pump (1-1/4" I.D. x 5")

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

20

A61266

PUMP

ASSY. - water

1шт.

21

A58646

GASKET

-, Serial Range: pump-body

1шт.

22

A62234

STUD

- pump to body (3/8" N.C. x 1-5/16")

4шт.

23

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

24

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" hex., jam

4шт.

25

A59220

BODY

ASSY. - water pump

1шт.

26

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type)

1шт.

27

221-1005

PLUG - (3/8" P.T., sq. hd.)

1шт.

28

A58649

GASKET

-, Serial Range: body-block

1шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Body Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

30

G11204

STUD

- body (3/8" N.C. x 1-7/16")

2шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

33

A60690

PULLEY

- fan

1шт.

34

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

35

A58651

WASHER

- (17/32 x 1-1/16 x 3/32")

1шт.

36

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.
