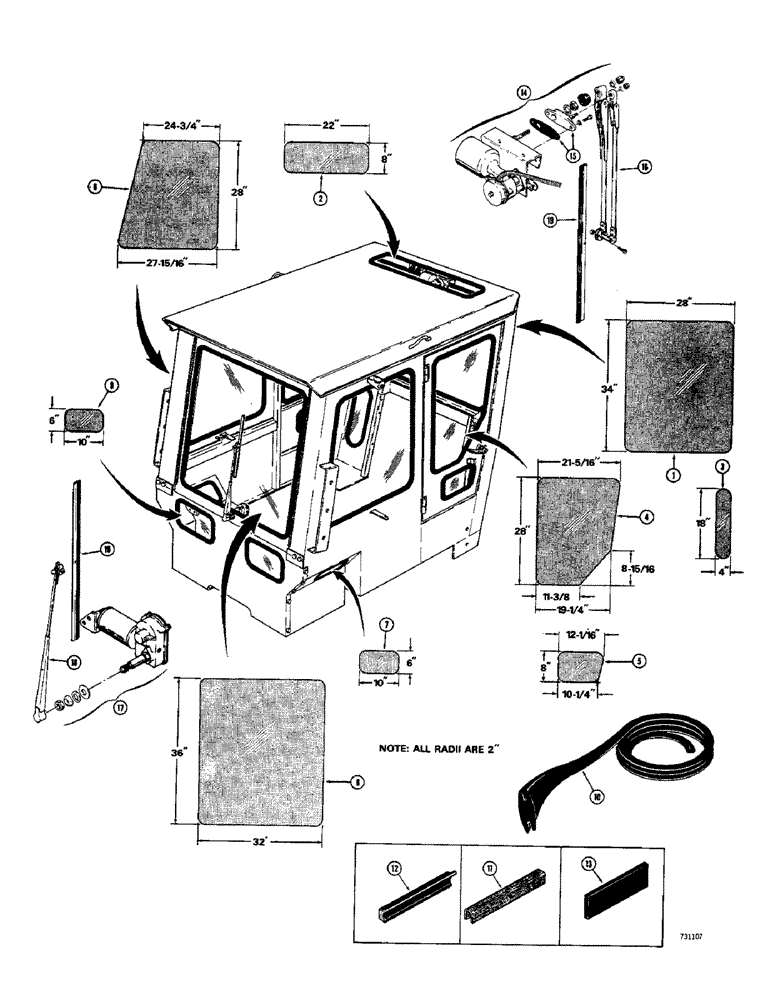

Запчасти Case 680CK (247C) - L53952 AND L54484 ROPS OPERATOR CAB, WINDOW GLASS, MOULDINGS AND WINDSHIELD WIPERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

L53952

CAB - operator (Used on backhoe models), Inlcudes: Ref. 1 - 19

1шт.

L54484

CAB - operator (Used on counterweight models), Inlcudes: Ref. 1 - 19

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - sky light

1шт.

3

REF

INSTRUCTION

GLASS - cowl

2шт.

4

REF

INSTRUCTION

GLASS - door, upper

2шт.

5

REF

INSTRUCTION

GLASS - door, lower

2шт.

6

REF

INSTRUCTION

GLASS - side panel

2шт.

7

REF

INSTRUCTION

GLASS - rear corner

2шт.

8

REF

INSTRUCTION

GLASS - rear window

1шт.

9

REF

INSTRUCTION

GLASS - rear filler panel

2шт.

10

L35717

GASKET

MOULDING - glass (50 ft. roll)

1шт.

11

L35759

WINDLACE - rear window (50 ft. roll)

1шт.

12

L35732

STRIP

WEATHERSTRIP - door (50 ft. roll)

1шт.

13

L35819

RUBBER SEAL

SEALER STRIP - adhesive, front cowl (50 ft. roll)

1шт.

14

L35262

MOTOR

- wiper, windshield (12 volt) Includes mounting hardware

1шт.

15

L35753

ADAPTER

- wiper (Includes mounting gasket)

1шт.

16

L35263

ARM

- windshield wiper (18" long)

1шт.

17

L35264

WIPER MOTOR

MOTOR - wiper, rear window (12 volt)

1шт.

18

F42213

ARM

- rear window wiper (16" long)

1шт.

19

A42580

WIPER BLADE,203.2mm L

BLADE - wiper, windshield and rear window (16" long)

2шт.
