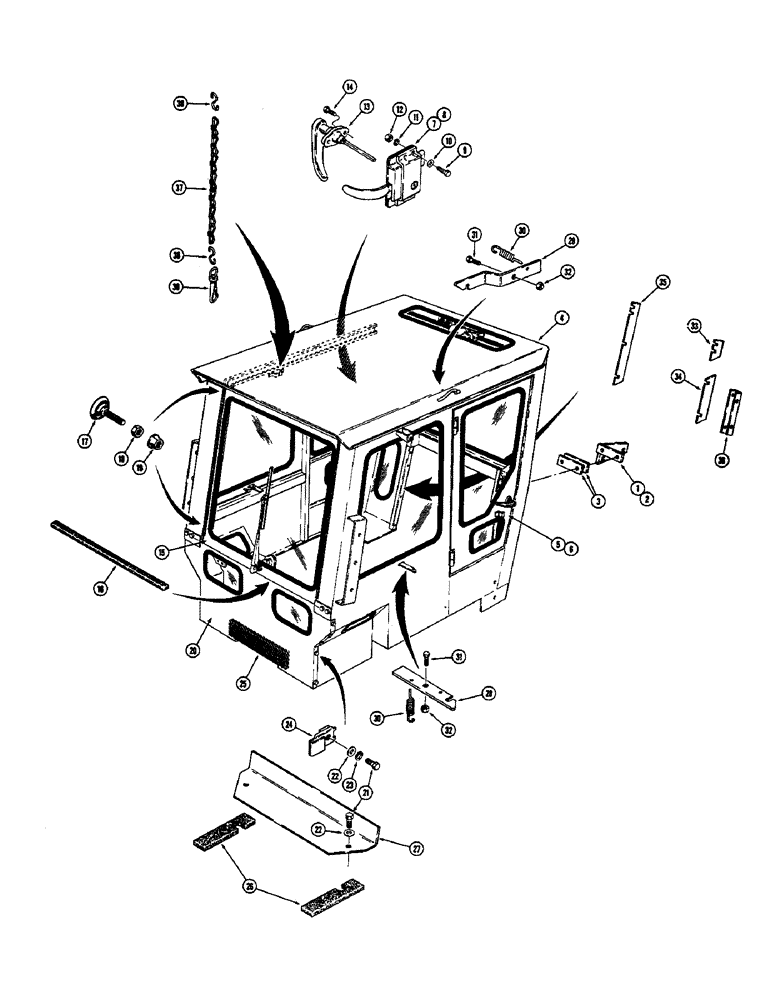

Запчасти Case 680CK (247A) - L53952 AND L54484 ROPS OPERATOR CAB, DOORS, REAR WINDOW AND MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

L53952

CAB - operator (Used on backhoe models), Inlcudes: Ref. 1 - 39

1шт.

L54484

CAB - operator (Used on counterweight models), Inlcudes: Ref. 1 - 39

1шт.

1

L35808

BRACKET - mounting, front (R.H.) see page 246 for hardware

1шт.

2

L35809

BRACKET - mounting, front (L.H.) not shown (See page 246 for hardware)

1шт.

3

L35827

SHIM - front mounting plate (1/4" thick)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - cab

1шт.

5

L35964

DOOR - cab, R.H.

1шт.

6

L35963

DOOR - cab, L.H. (Not shown)

1шт.

7

L35738

LATCH

- door, R.H. (Not shown)

1шт.

8

L35737

LATCH

- door, L.H.

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

195-102

WASHER,1/4"

- plain () 1/4"

8шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

13

L35829

HANDLE

- door (Outer)

2шт.

(Non-Locking Handle)

1шт.

14

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

4шт.

15

L35965

WINDOW - rear rollup

1шт.

16

L35817

SEALER - rear window

1шт.

17

T42587

ROLLER

AND SHAFT - rear window

4шт.

18

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

19

131-912

LOCK NUT,Flg, 1/2"-13

NUT - "Whiz-lock"

4шт.

20

NLS

NO LONGER SERVICED

PANEL - backhoe, rear

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

22

195-522

WASHER,5/16"

- plain () 5/16"

12шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

24

131-97

SPRING NUT,Tinn, U, 5/16"-18

- retainer (Clip on type)

10шт.

25

L35820

PANEL - backhoe rear (Rubber)

1шт.

26

L35814

SEAL - cab base, rubber

2шт.

27

L35822

PANEL - rear floor

1шт.

28

L35800

LATCH ASSY.

ARM - door latch

2шт.

29

L35832

ARM - latch, rear rollup window

1шт.

30

L35748

SPRING

- latch

3шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

32

86625061

NUT,1/4"-20, GB

NUT - hex. lock (1/4" - 20 NC)

3шт.

33

L35823

STRIP - seal, R.H. (Top)

1шт.

34

L35824

STRIP - seal, R.H. (Lower)

1шт.

35

L35825

STRIP - seal, L.H.

1шт.

36

L35826

BRACKET - mounting, cowl

1шт.

37

L35833

CHAIN - safety

1шт.

38

L35834

HOOK - "S"

2шт.

39

L35835

RING, SNAP

SNAP - chain

1шт.
