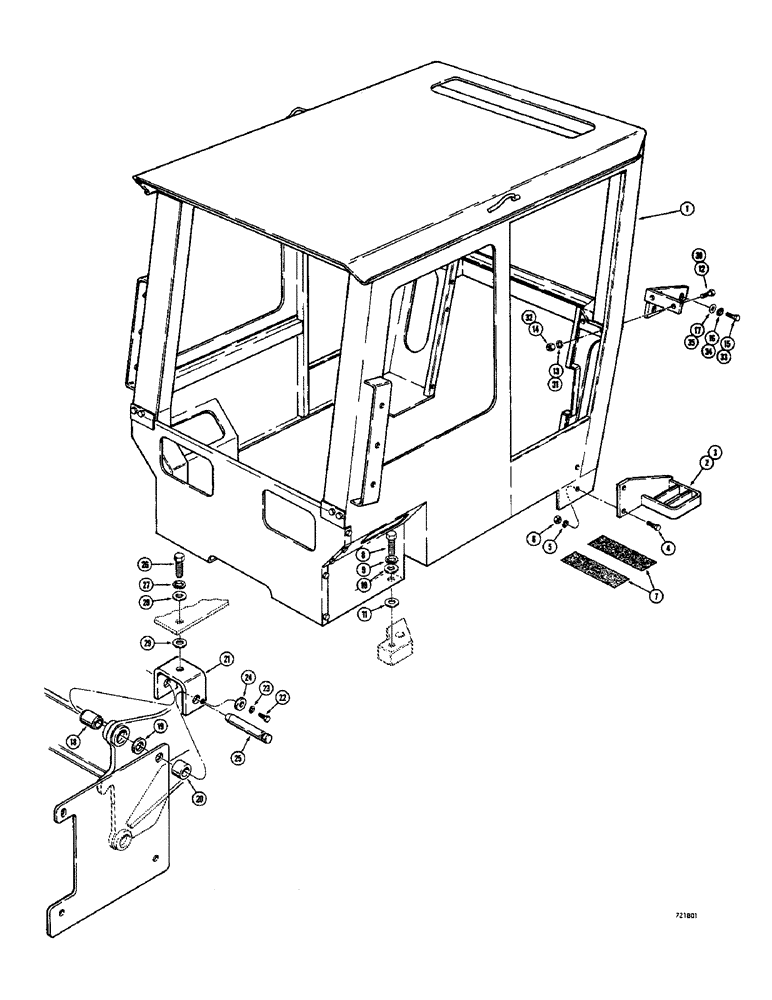

Запчасти Case 680CK (246) - ROPS CANOPY, USED ON BACKHOE AND COUNTERWEIGHT MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L53951

CANOPY - ROPS (Used on models with backhoe)

1шт.

1

L54483

CANOPY - ROPS (Used on models with counterweight)

1шт.

2

L15161

STEP - operator cab, R.H.

1шт.

3

L15162

STEP - operator cab, L.H.

1шт.

4

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

6

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4шт.

7

A55582

PAD

- non slip

4шт.

8

113-906

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8, Full Thd

HHCS - 1" - 8 NC x 2-3/4" (Cab or canopy rear mounting), parts

2шт.

9

92-16

LOCK WASHER,1"

WASHER, LOCK, , Mounting parts 1"

2шт.

10

195-2100

WASHER,1 1/32" x 2" x .238"

- plain (1"), mounting parts

2шт.

11

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (Spacer), mounting parts

1шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Canopy or cab front mounting, parts Hex, 1/2"-13 x 2", G5

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting parts 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting parts 1/2"-13, G5

4шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cab bracket mounting, mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting parts 1/2"

4шт.

17

195-106

WASHER,1/2"

- plain (), mounting parts 1/2"

4шт.

18

D44549

BUSHING

- tractor chassis, mounting parts

2шт.

19

L53147

SPACER - bracket (Inner), mounting parts

2шт.

20

L53148

SPACER - bracket (Outer), mounting parts

2шт.

21

L53146

BRACKET - canopy or cab mounting, mounting parts

2шт.

22

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4", mounting parts

2шт.

23

92-8

LOCK WASHER,1/2"

med. sect., mounting parts 1/2"

2шт.

24

L40681

LOCK WASHER

- pin retainer, mounting parts

2шт.

25

L53143

PIN - bracket to chassis, mounting parts

2шт.

26

113-906

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8, Full Thd

HHCS - 1" - 8 NC x 2-3/4" (Rear mounting), parts

2шт.

27

92-16

LOCK WASHER,1"

WASHER, LOCK, , Mounting parts 1"

2шт.

28

195-2100

WASHER,1 1/32" x 2" x .238"

- plain (1"), mounting parts

2шт.

29

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (Spacer), mounting parts

1шт.

30

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Canopy or cab front mounting, mounting parts Hex, 1/2"-13 x 2", G5

4шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting parts 1/2"

4шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting parts 1/2"-13, G5

4шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cab bracket mounting, mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting parts 1/2"

4шт.

35

195-106

WASHER,1/2"

- plain (), mounting parts 1/2"

4шт.
