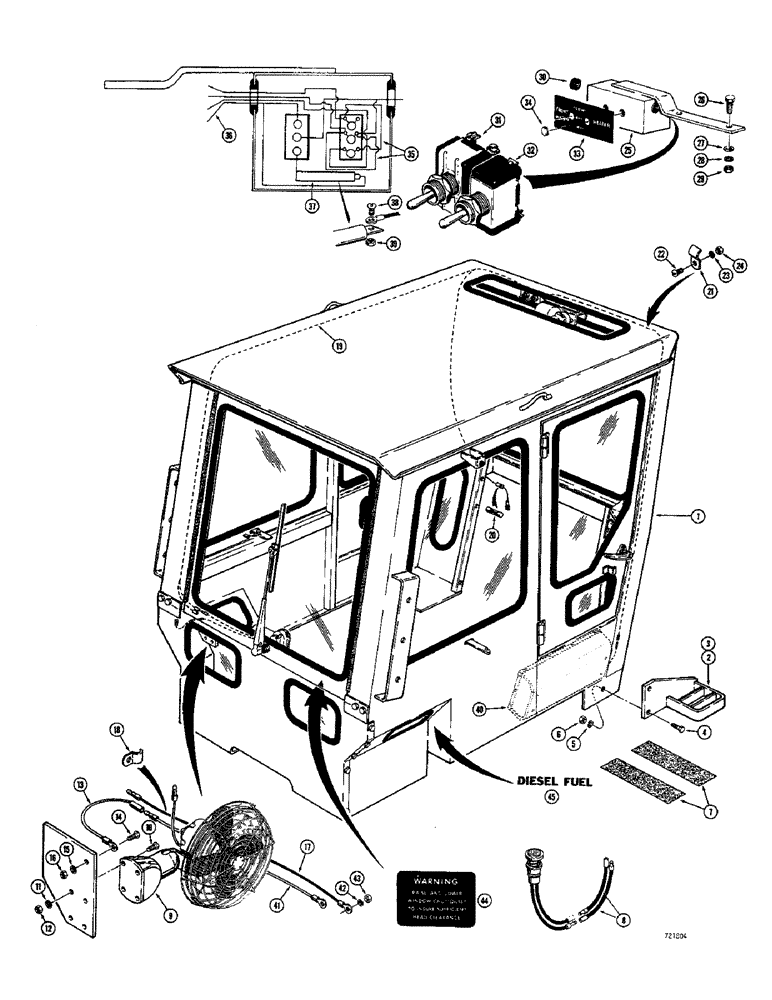

Запчасти Case 680CK (244) - ROPS CAB AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L53952

CAB - operator control, ROPS (Used on backhoe models) see fig. 246 for mounting parts and Figures 247A thru 247C for component parts.

1шт.

1

L54484

CAB - operator control, ROPS (Used on counterweight models) see fig. 246 for mounting parts and Figures 247A thru 247C for component parts.

1шт.

2

L15161

STEP - operators cab, R.H.

1шт.

3

L15162

STEP - operators cab, L.H.

1шт.

4

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

6

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4шт.

7

A55582

PAD

- non slip

4шт.

8

L17980

WIRE - rear engine indicator light

2шт.

9

L13468

FAN

- defroster, rear window, Parts list Figure 250

1шт.

10

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

RHMS - #10 - 32 NF x 1/2"

4шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

12

129-37

NUT,#10-32

4шт.

13

L17982

WIRE - rear wiper ground (Short)

1шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2"

1шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

16

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

1шт.

17

L41288

WIRE - wiper motor

1шт.

18

L19840

CLIP

- roller nut, rear wiper wires

1шт.

19

L54124

HARNESS

- cab wiring (Wipers, heater and fan)

1шт.

20

223-20

FUSE,20 Amp, Type SFE

- protective, 20 amp.

1шт.

21

L19840

CLIP

- wire

5шт.

22

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

CAPSCREW - truss head

5шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

5шт.

25

L15167

PANEL

- front, heater and wiper

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

28

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

30

F54096

GROMMET

- rubber

2шт.

31

L15168

SWITCH - front wiper

1шт.

32

L15170

SWITCH

- heater

1шт.

33

321-1199

DECAL - heater wiper panel

1шт.

34

205-21

CAPSCREW

PLUG - button (Used models without heater)

1шт.

35

L15169

WIRE - switch crossover

2шт.

36

L17984

WIRE -, Serial Range: switchbox-heater

1шт.

37

A55708

RESISTOR - heater switch

1шт.

38

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4"

1шт.

39

129-6

NUT,#8-32

1шт.

40

A12897

HEATER - 12 volt, See Figure 248 for related parts

1шт.

41

L17981

WIRE - rear wiper ground (Long)

1шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

43

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

1шт.

44

321-1291

DECAL - warning, rear window clearance

1шт.

45

321-230

DECAL

- diesel fuel

1шт.

D70621

ROLLER

for rear window

1шт.
