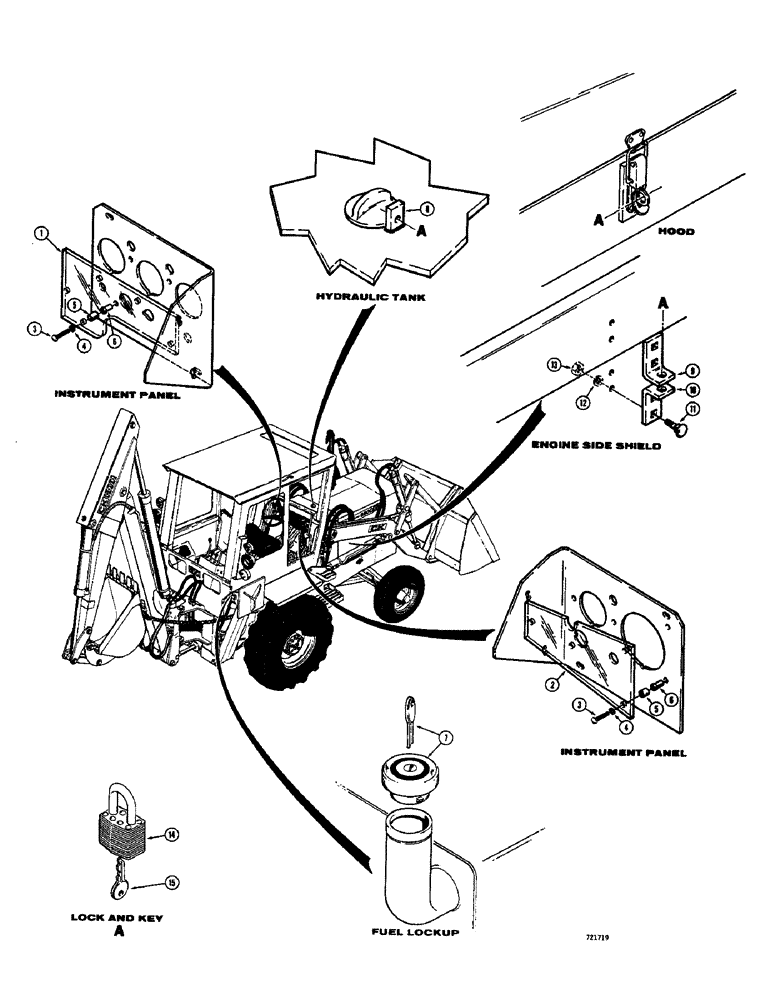

Запчасти Case 680CK (242) - LOCKUP PARTS, INSTRUMENT PANEL LOCKUP, FUEL LOCKUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L54191

COVER - instrument panel, L.H.

1шт.

2

L54192

COVER - instrument panel, R.H.

1шт.

3

182-208

SCREW,Slotted Pan Hd, 1/4"-20 X 1 1/4"

- machine, pan head (1/4" - 20 NC x 1-1/4")

9шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

5

A31224

SPACER

9шт.

6

151-300

NUT - rivet (1/4" - 20 NC)

9шт.

7

A32120

CAP

AND KEY ASSEMBLY - complete, fuel lockup

1шт.

8

L54190

STRIP

BRACKET - retaining, hydraulic tank lock, fuel lockup

1шт.

9

L50251

BRACKET - lock retaining, upper, engine side shield lockup

2шт.

10

L53151

BRACKET - lock retaining, lower, engine side lockup

2шт.

11

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - square shoulder (1/4" - 20 NC x 5/8"), engine side lockup

8шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Engine side lockup 1/4"

8шт.

13

25-104

NUT,1/4"-20, G5

Engine side lockup 1/4"-20, G5

8шт.

14

D40678

LOCK

- padlock, lock and key

5шт.

15

D40679

KEY

- padlock, lock and key

2шт.
