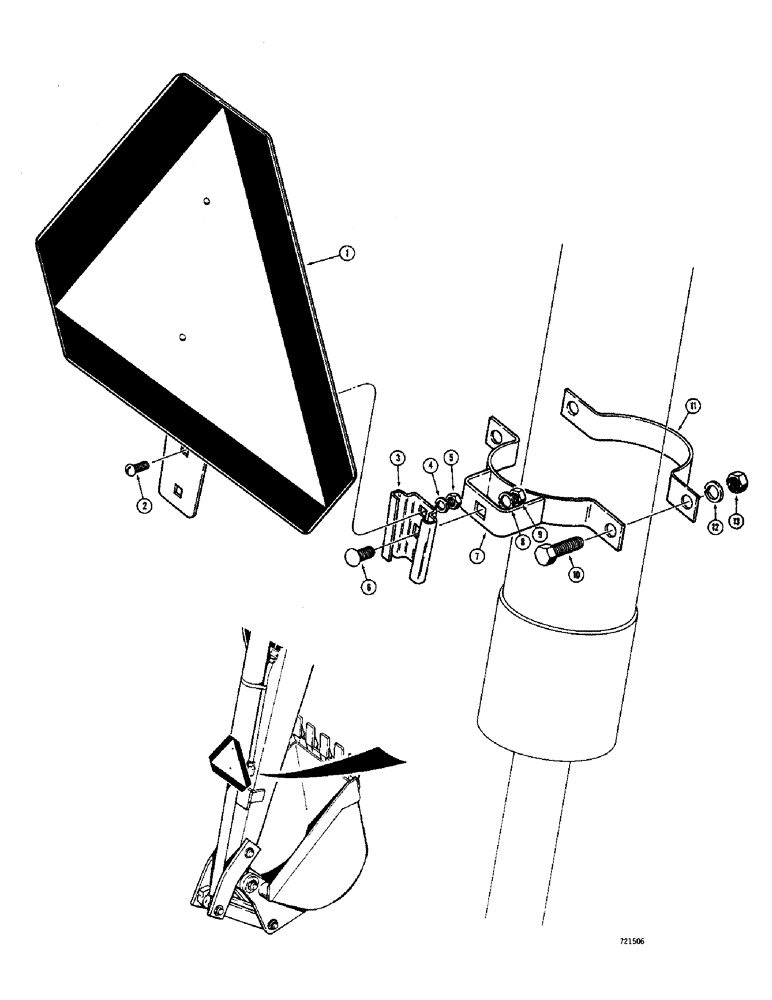

Запчасти Case 680CK (238) - SLOW MOVING VEHICLE EMBLEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A59450

WARNING SIGN

EMBLEM AND BRACKET ASSEMBLY - slow moving vehicle

1шт.

2

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- mach., pan head (5/16" - 18 NC x 5/8") zinc plated

2шт.

3

A60977

BRACKET

SOCKET - slow moving vehicle emblem

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

111-418

BOLT - round head square neck (7/16" - 14 NC x 3/4") zinc plated Short NK, 7/16"-14 x 3/4", G2

1шт.

7

L47091

CLAMP ASSY. - socket mounting, emblem

1шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

129-104

NUT,7/16"-14, G5

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

L47088

CLAMP - emblem to cylinder mounting

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
