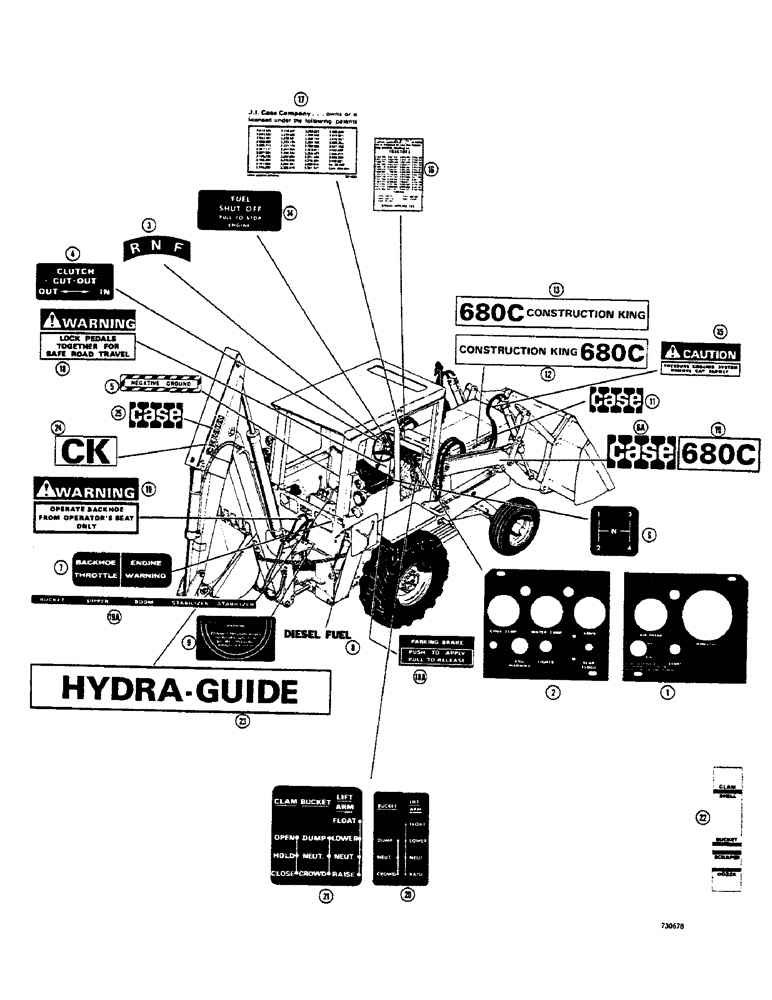

Запчасти Case 680CK (236) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

L35406

DECAL

KIT - 680CK, series "C", Inlcuded: Ref. 1 - 19A

1шт.

1

321-2582

DECAL

- instrument panel, R.H.

1шт.

Not components of Decal Kit, P/N L35406. Order separately if needed.

1шт.

2

321-2583

DECAL

- instrument panel, L.H.

1шт.

Not components of Decal Kit, P/N L35406. Order separately if needed.

1шт.

3

321-2465

DECAL

- forward and reverse shift pattern

1шт.

4

321-2464

DECAL - clutch release information

1шт.

5

321-704

DECAL

- negative ground

1шт.

6

321-1000

DECAL

- transmission shift pattern

1шт.

6a

321-1573

DECAL

- "CASE" (5" high)

2шт.

7

321-1261

DECAL

- backhoe throttle and engine warning light

1шт.

8

321-230

DECAL

- diesel fuel

1шт.

9

321-1301

DECAL - backhoe removal warning

1шт.

10

321-2535

DECAL

- "680C", at loader lift frame

2шт.

11

321-1572

DECAL

- "CASE" (Hood support channels)

2шт.

12

321-1874

DECAL

- "CONSTRUCTION KING 680" (R.H.) hood support channel

1шт.

13

321-1873

DECAL

- "680 CONSTRUCTION KING" (L.H.) hood support channel

1шт.

14

321-1775

DECAL - "FUEL SHUT OFF"

1шт.

15

321-122

DECAL

- cooling system, at radiator cap

1шт.

16

321-246

DECAL

- tractor patents

1шт.

17

321-663

DECAL

- patent

1шт.

18

321-2478

DECAL

- brake pedal warning

1шт.

18a

321-2537

DECAL - parking brake

1шт.

19

321-2091

DECAL

- backhoe, operator warning

1шт.

19a

321-2495

DECAL - backhoe control (At console)

1шт.

20

321-1075

DECAL

- bucket control, 2 spool valve

1шт.

21

321-2466

DECAL

- bucket control, 3 spool valve

1шт.

22

321-1225

DECAL - bucket position, drott 4-in-1 bucket

1шт.

23

321-1831

DECAL

- "Hydra-Guide"

2шт.

24

321-1482

DECAL

- "CK" (Dipper sides)

2шт.

25

321-1440

DECAL

- "CASE" (At control console and dipper sides)

3шт.
