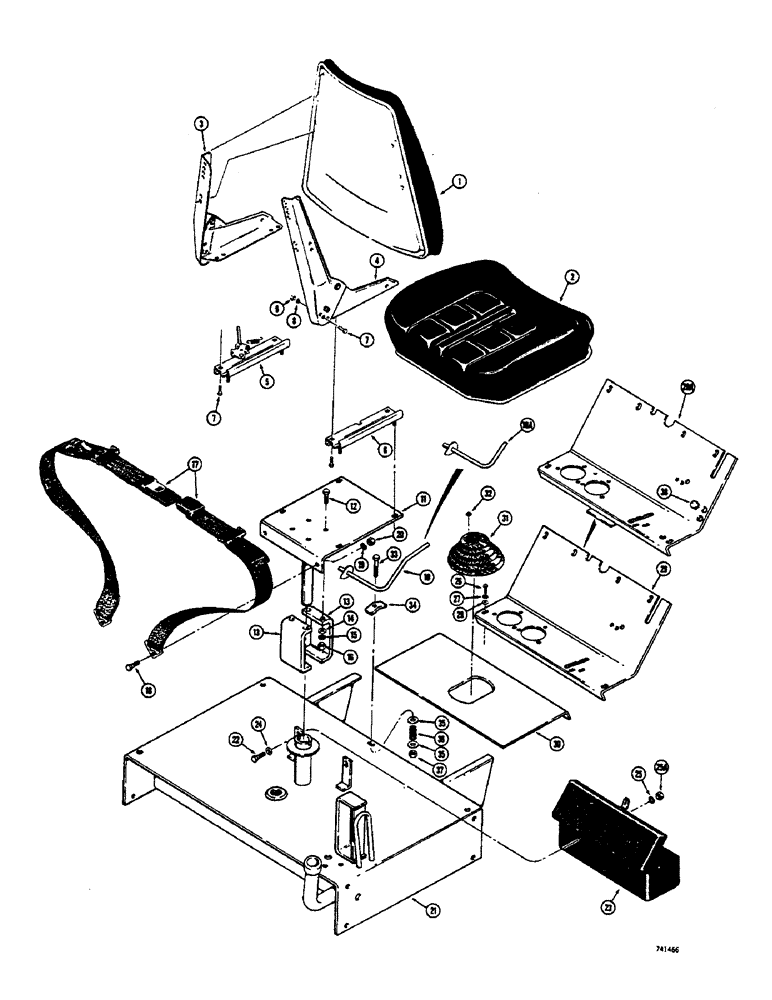

Запчасти Case 680CK (138) - FUEL TANK, FLOOR PLATES AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

L54089

SEAT

ASSEMBLY - operator's, Includes: Ref. 1 - 9

1шт.

1

D56884

BACKREST

- seat

1шт.

2

D56883

SEAT

CUSHION - seat

1шт.

3

D56885

RAIL ASSY.

FRAME - seat, L.H.

1шт.

4

D56886

RAIL ASSY.

FRAME - seat, R.H.

1шт.

5

L35629

ADJUSTER

RAIL - seat slide, L.H. (Adjustment side)

1шт.

6

L35272

ADJUSTER

RAIL - seat slide, R.H.

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

14шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

L16245

LEVER

- seat adjustment (Before tractor ser. no. 9111207)

1шт.

10a

L55029

LEVER

- seat adjustment (Tractor ser. no. 9111207 and after)

1шт.

11

L54710

POST - seat, inside

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13

L54713

CLAMP - seat post

2шт.

14

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

D60615

SAFETY BELT ,3.00" W

(Machinery item) 3.00" W

1шт.

18

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

21

L53247

TANK ASSEMBLY - fuel

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tool box mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

23

D55624

TOOL

BOX - tractor

1шт.

24

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

25a

25-106

NUT,3/8"-16, G5

- (3/8" - 16 NC)

2шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Floor plate to chassis) Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

28

95-4

WASHER,1/4"

- plain () 1/4"

6шт.

29

L53762

PLATE - floor, front (Used on tractors without clutch cut-out valve)

1шт.

29a

L55310

PLATE - floor, front (Used on tractors equipped with clutch cut-out valve)

1шт.

30

L53987

PLATE - floor, rear

1шт.

31

L54087

BOOT

- transmission, shift lever

1шт.

32

95-8

WASHER,1/2"

- plain (Boot retainer) 1/2"

1шт.

33

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

34

L11056

LATCH - rear floor plate

1шт.

35

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

36

A33749

SPRING

- compression, latch

1шт.

37

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

38

L55550

PLUG - floor plate (Used if heater is not installed)

2шт.
