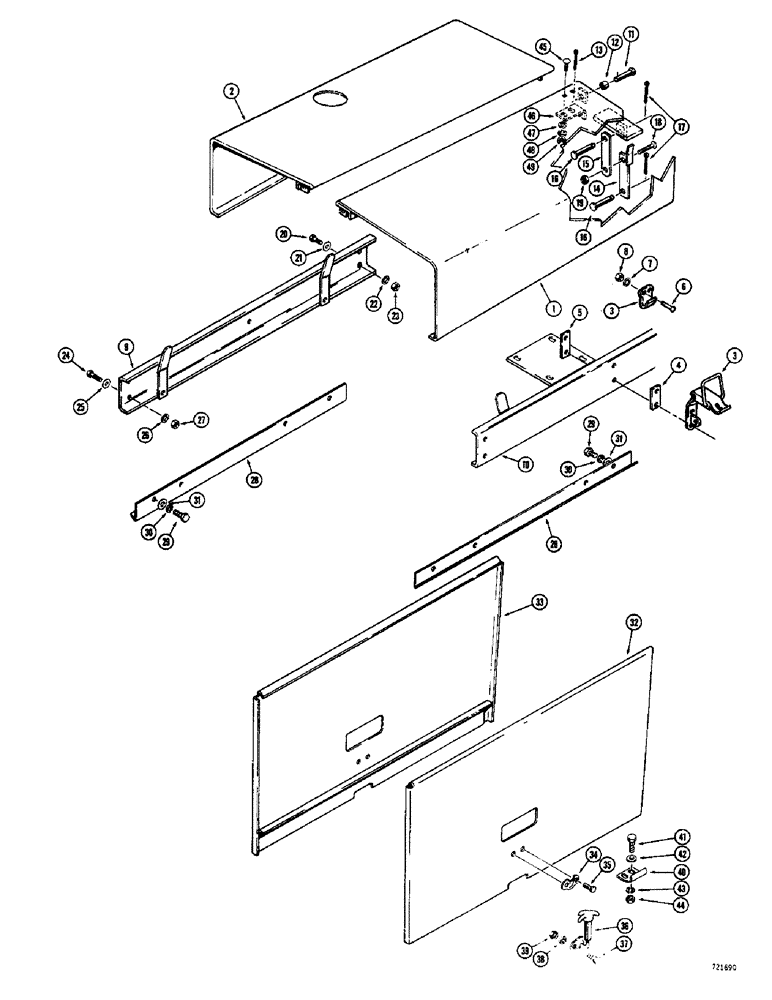

Запчасти Case 680CK (134) - HOOD AND ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L53027

HOOD - enigne, R.H. side

1шт.

2

L53275

HOOD

- engine, L.H. side

1шт.

3

L51715

LATCH ASSY.

LATCH - hood

2шт.

4

L53280

SPACER - hood latch

2шт.

5

L53257

PLATE - hood latch

2шт.

6

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

RHMS - #10 - 24 NC x 1"

8шт.

7

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

8

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

9

L53251

CHANNEL - hood support, L.H.

1шт.

10

L53252

CHANNEL - hood support, R.H.

1шт.

11

T11231

AXLE PIN

PIN - clevis (7/16")

2шт.

12

D44696

BUSHING

SPACER - hood

2шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

14

L17619

LINK - hood support, lower

1шт.

15

L17622

DRAG LINK

LINK - hood support, upper

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

2шт.

17

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

18

78-410

SCREW - machine, truss head (1/4" - 28 NF x 5/8")

1шт.

19

131-30

LOCK NUT,1/4"-28, G8

NUT - hex, lock (1/4"-28 NF)

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Front channel mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

21

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

22

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC 1-3/4" (Rear channel mounting)

4шт.

25

95-8

WASHER,1/2"

- plain 1/2"

4шт.

26

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

28

L46825

SUPPORT - hood and side panel

2шт.

29

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

4шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

31

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

32

L25710

PANEL ASSY.

PANEL - engine side, R.H., Includes: Ref. 34 and 35

1шт.

33

L25709

PANEL - engine side, L.H., Includes: Ref. 34 and 35

1шт.

34

A17237

HOOK

CATCH - panel latch

1шт.

35

151-551

RIVET - button head (3/16" dia. x 1/8")

2шт.

36

A17232

LATCH ASSY.

LATCH - engine side panel

2шт.

37

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

25-104

NUT,1/4"-20, G5

4шт.

40

L11440

RETAINER

- side panels

4шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

42

195-18

WASHER,1/4"

- plain () 1/4"

8шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

44

25-104

NUT,1/4"-20, G5

8шт.

45

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - carriage (5/16" - 18 NC x 7/8")

4шт.

46

L46384

BRACKET

- pivot, hood mounting

2шт.

47

195-521

WASHER,5/16", SAE

- plain (5/16")

4шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

49

9635082

NUT,5/16" - 18, Gr 5

4шт.
