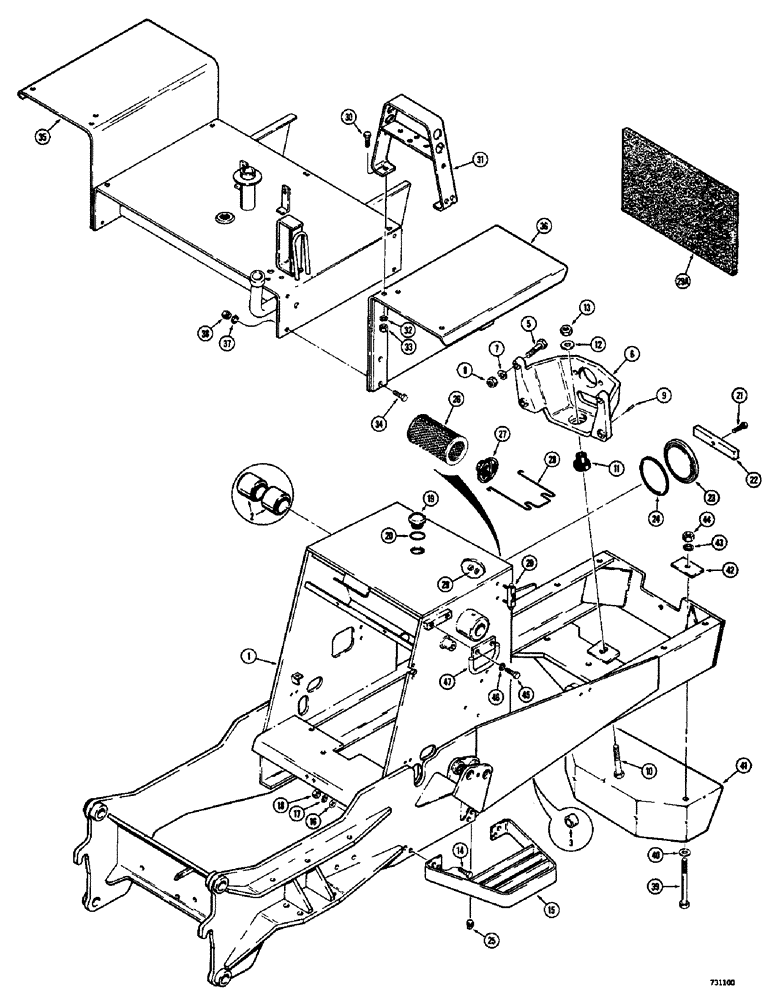

Запчасти Case 680CK (132) - CHASSIS, FENDERS AND STEPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L53499

CHASSIS ASSEMBLY - tractor, Includes: Ref. 2 and 3

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- loader lift frame pivot bracket

4шт.

3

L46294

BUSHING

- radius rod pivot

1шт.

5

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

6

L46461

BRACKET

- equipment pump and engine mounting

1шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

25-1012

NUT,3/4"-10, G5

4шт.

9

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, #5 x 1-1/2"

2шт.

10

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

11

A19066

MOUNTING PARTS

MOUNT - engine, rubber

1шт.

12

195-48

WASHER,3/4" x 2 7/8" x .165"

- plain (3/4")

1шт.

13

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

15

L53454

STEP - cockpit entry

2шт.

16

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

19

A26009

PLUG

CAP - filler, hydraulic tank

1шт.

20

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O"ring, filler cap

1шт.

21

22-836

SCREW - hex. tap (1/2" - 13 NC x 2-1/4")

1шт.

22

L50741

BAR

- cover holddown

1шт.

23

L55406

COVER

- access, hydraulic filter (Replaces L50743)

1шт.

24

L52161

SEALING RING

- "O"ring, access cover

1шт.

L55410 Seal, Used on later units

1шт.

25

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, tank drain (3/4" NPT)

1шт.

26

L52764

ELEMENT

FILTER - hydraulic tank

1шт.

27

L52765

VALVE

RELIEF VALVE - filter

1шт.

28

L52759

VALVE SPRING

SPRING - retainer, filter

1шт.

29

L53208

GAUGE

- hydraulic oil level

1шт.

29a

L54670

INSULATOR

- heat, hydraulic tank (Foam material)

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

31

L26326

BRACKET

- mounting, rear light

2шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

34

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

35

L26222

FENDER - rear, L.H.

1шт.

36

L26347

FENDER - rear, R.H.

1шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

38

25-108

NUT,1/2"-13, G5

hex. (1/2" - 13 NC)

8шт.

39

13-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8"

2шт.

40

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

41

L18639

COUNTERWEIGHT - front (Standard)

1шт.

42

L18638

PLATE - counterweight mounting

2шт.

43

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

44

25-1012

NUT,3/4"-10, G5

2шт.

45

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Handle mounting Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

46

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

47

L57190

HANDLE - operator assist

2шт.
