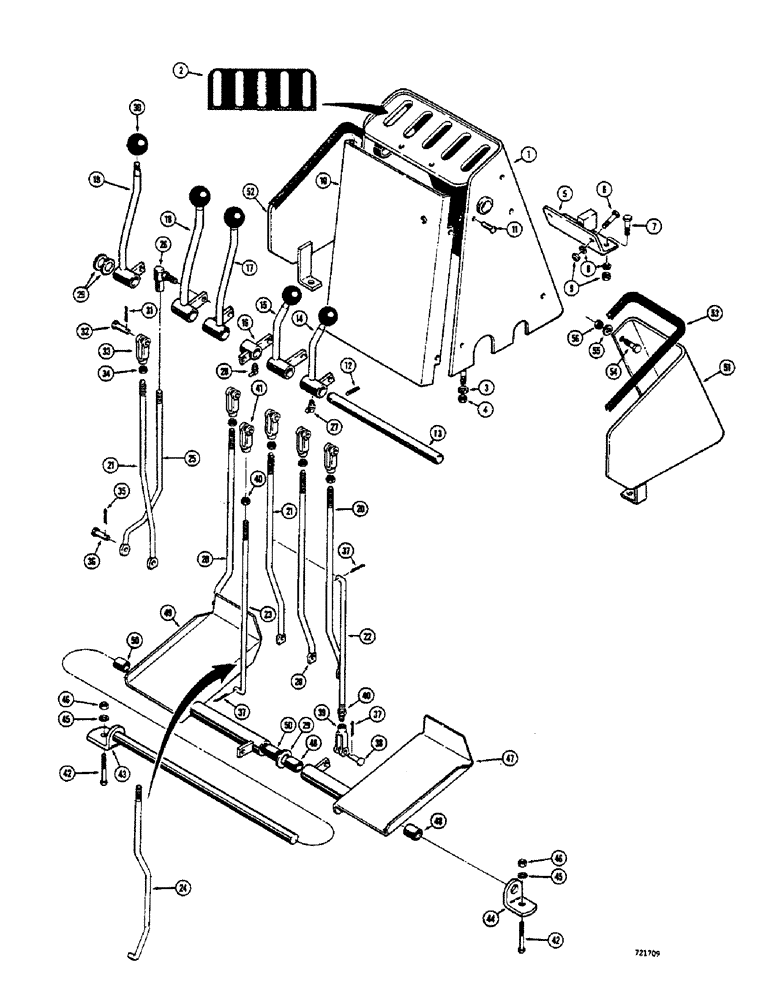

Запчасти Case 680CK (188) - INDIVIDUAL LEVER BACKHOE CONTROL, (FOOT SWING) (84) - BOOMS, DIPPERS & BUCKETS

1

D45375

CONSOLE - backhoe control

1шт.

2

321-1264

DECAL

- control console

1шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

5

L53462

BRACKET - console mounting (Has tapped block for hose clamp)

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

10

D40292

COVER - console, rear (Models without dipper light)

1шт.

10

L43733

COVER - console, rear (Models with dipper light)

1шт.

11

75-58

BOLT (MACHINE),5/16" x 1/2"

RHMS - 5/16" - 18 NC x 1/2"

4шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

D30817

SHAFT

- control levers

1шт.

14

L46693

HANDLE

LEVER - control, R.H. stabilizer

1шт.

15

L46692

HANDLE

LEVER - control, L.H. stabilizer

1шт.

16

D48270

LEVER

- pivot, swing

1шт.

17

L46694

HANDLE

LEVER - control, boom

1шт.

18

L46695

HANDLE

LEVER - control, dipper

1шт.

19

L46696

HANDLE

LEVER - control, bucket

1шт.

20

D45372

ROD - connecting, R.H. and L.H. stabilizer and boom

3шт.

21

D38314

ROD

- connecting, swing and bucket control

2шт.

22

D21762

ROD

- connecting, R.H. swing control

1шт.

23

D30819

ROD

- connecting, L.H. swing control (Models without hydra-guide)

1шт.

24

L50123

ROD - connecting, L.H. swing control (Hydra-guide models only)

1шт.

25

L51110

ROD - connecting, dipper control

1шт.

26

D38296

JOINT

BALL JOINT - dipper control rod

1шт.

27

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree

5шт.

28

219-39

FITTING

- grease, 45 degree

1шт.

29

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

30

D49996

KNOB

- control lever

5шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

34

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

6шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

37

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

38

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

39

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

40

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

2шт.

41

D37600

YOKE

- connecting rod

1шт.

42

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

43

D40859

SHAFT

- swing pedals

1шт.

44

D40858

BRACKET - shaft

1шт.

45

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

47

D47224

PEDAL

- swing, R.H., Includes: Ref. 48

1шт.

48

D30706

BUSHING

- pedal

2шт.

49

D47225

PEDAL - swing, L.H., Includes: Ref. 50

1шт.

50

D30706

BUSHING

- pedal

2шт.

51

L48666

GUARD - swing pedal, R.H.

1шт.

52

L48667

GUARD - swing pedal, L.H.

1шт.

53

D47936

LINING

TRIM - pedal guard

2шт.

54

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

55

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

56

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
