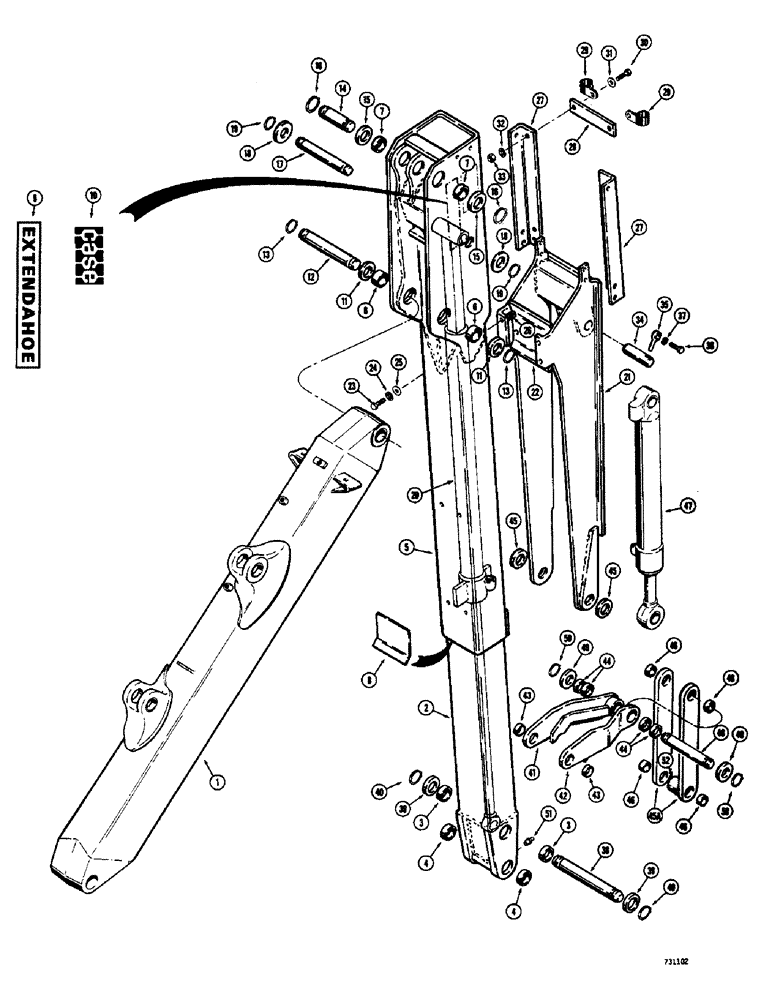

Запчасти Case 680CK (179A) - HYDRAULIC EXTENDABLE DIPPER, FOUR FOOT EXTENSION MECHANICAL PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

L55761

BOOM - backhoe, extendahoe

1шт.

This boom uses same bushings as D44693. See Refs. 16 thru 21, Figure 176.

1шт.

2

L54358

DIPPER

EXTENSION - dipper arm, Includes: Ref. 3 and 4

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- extension at bucket link

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- extension at bucket

2шт.

5

L54385

DIPPER ARM ASSEMBLY - extendahoe, Includes: Ref. 6 - 8

1шт.

6

L54515

BUSHING - boom pivot

2шт.

7

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- dipper cylinder pivot

2шт.

8

L57012

PLATE ASSY.

PLATE - wear, dipper arm

1шт.

9

321-2058

DECAL

- extendahoe

2шт.

10

321-1572

DECAL

- "CASE" (4" high)

2шт.

11

195-2155

WASHER,2 1/16" x 3" x .109"

SPACER - dipper to boom

2шт.

12

D44734

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

14

D37607

PIN

- dipper, Serial Range: cylinder-dipper

1шт.

15

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel

2шт.

16

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

17

L54400

PIN

- extension, Serial Range: cylinder-dipper

1шт.

18

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- plain (1-1/2")

2шт.

19

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

20

G34426

CYLINDER

- hyd., dipper extension, Parts list Figure 269C

1шт.

21

L54945

GUIDE - bucket cylinder, Includes: Ref. 22

1шт.

22

L54741

PLATE

- wear

1шт.

23

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

24

92-6

LOCK WASHER,3/8"

med. sect., zinc plated 3/8"

4шт.

25

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat (3/8") zinc plated

4шт.

26

A29277

WASHER

SPACER - wear plate

1шт.

27

L54940

ANGLE

- bucket cylinder hose support

2шт.

28

L54429

BAR

- hose support

1шт.

29

D40471

CLAMP

- hose

2шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

195-104

WASHER,3/8"

- flat () zinc plated 3/8"

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

34

L53181

PIN

- bucket cylinders to bucket cylinder guide

1шт.

35

R17756

ROD,12.7mm OD x 109.54mm L

LOCK - pin retaining

1шт.

36

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

38

L54408

PIN - dipper extension cylinder and bucket cylinder guide to dipper extension

1шт.

39

A13406

WASHER

- flat (1-1/2")

2шт.

40

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

41

L55727

DRAG LINK

LINK - guide ass'y (L.H.)

1шт.

42

L55726

LINK

- guide ass'y (R.H.), Includes: Ref. 43 and 44

1шт.

43

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- guide link, at bar end

1шт.

44

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- guide link, at boss end

2шт.

45

A13406

WASHER

- flat (1-1/2")

2шт.

45a

L54321

LINK - dump ass'y, Includes: Ref. 46

2шт.

46

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket

2шт.

47

G33834

CYLINDER

- bucket, Parts list Figures 270 and 271A

1шт.

48

L54407

AXLE PIN

PIN - bucket cylinder and guide link to dump link ass'y

1шт.

49

A13406

WASHER

- flat (1-1/2")

4шт.

50

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

52

L55723

SPACER

- dump link

1шт.
