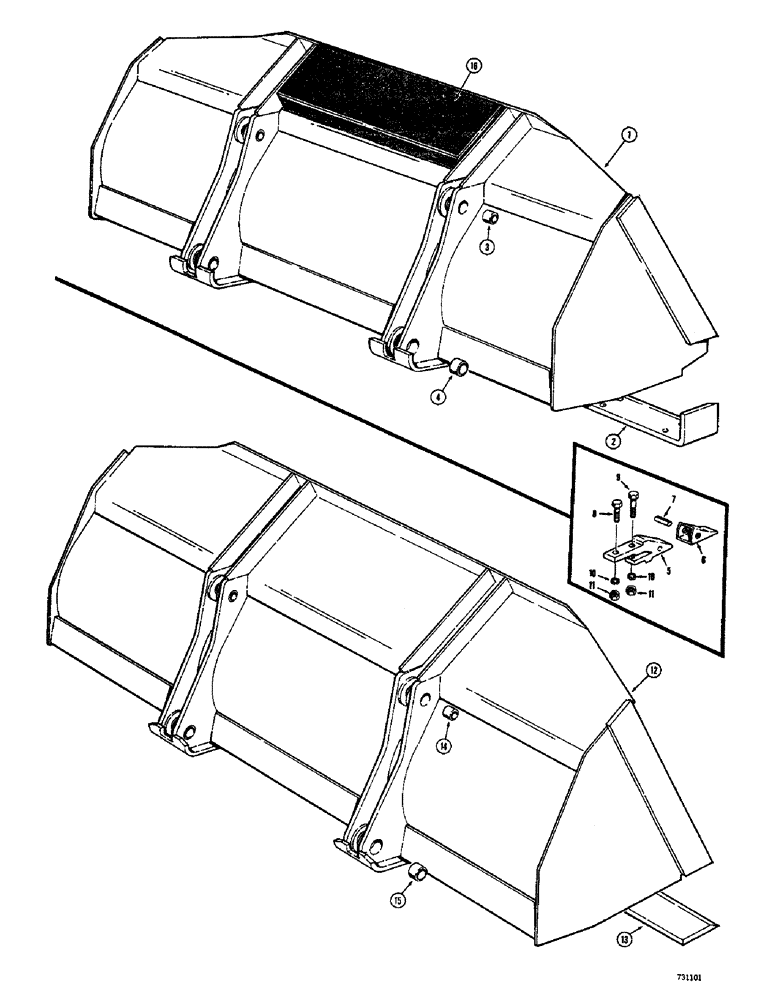

Запчасти Case 680CK (146) - LOADER BUCKETS, 1-1/4 CUBIC YARD LOADER BUCKET (MACHINERY (82) - FRONT LOADER & BUCKET

1

L13655

BUCKET - loader, 1-1/4 cu. yd. (84-3/8" wide), Includes: Ref. 2 - 4

1шт.

2

L13659

EDGE

CUTTING EDGE - bucket (84-3/8" wide)

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket ear, upper

4шт.

4

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- bucket ear, lower

4шт.

L16667

TOOTH

ASSEMBLY - bucket

8шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

6

D39093

TOOTH

POINT - tooth, bucket

1шт.

7

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth

1шт.

8

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Bucket teeth Hex, 5/8"-11 x 2 1/4", G5

8шт.

9

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth Hex, 5/8"-11 x 3", G5

8шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

16шт.

11

86625068

NUT,5/8"-11, G8

- hex. (5/8" - 11 NC), bucket teeth

16шт.

12

L13775

BUCKET - LOADER, 1-3/4 CU. YD. (96" wide), loader bucket, Includes: Ref. 13 - 15

1шт.

13

L13774

EDGE

CUTTING EDGE - bucket (96" wide), CU. YD. loader bucket

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket ear, upper, CU. YD. loader bucket

4шт.

15

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- bucket ear, lower, CU. YD. loader bucket

4шт.

16

L57199

COUNTERWEIGHT - front loader bucket, welded on, CU. YD. loader bucket

1шт.
