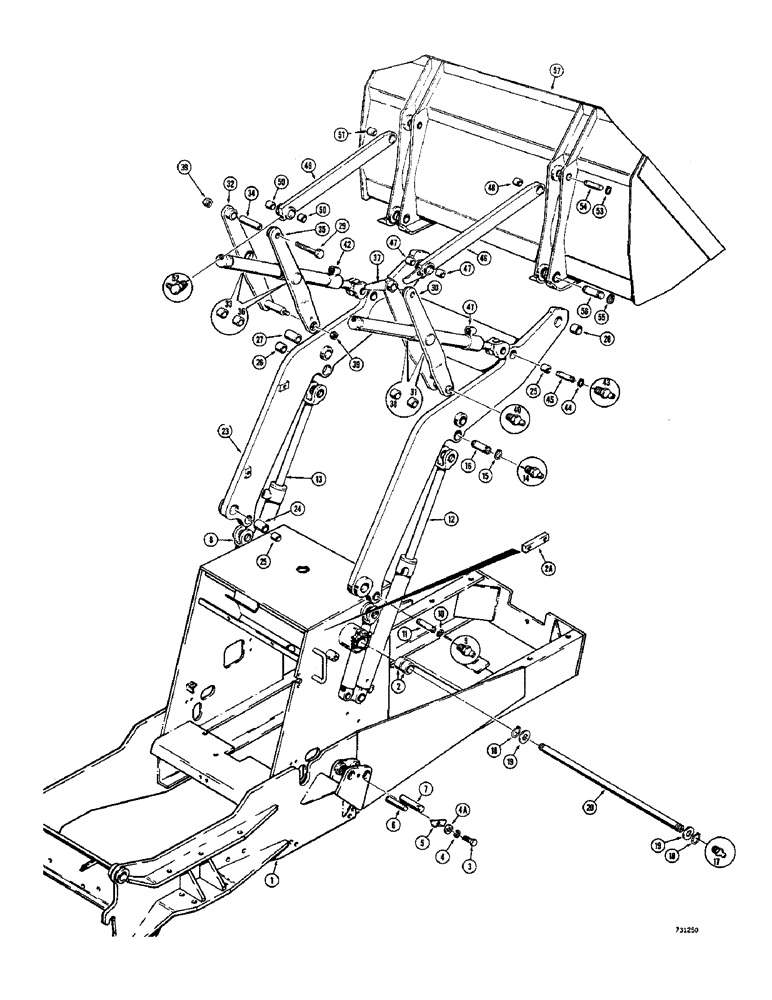

Запчасти Case 680CK (142) - LOADER LIFT FRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

1

L53499

CHASSIS ASSEMBLY - tractor, See Figure 132 for related parts

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- lift frame pivot bracket

4шт.

2a

L53941

PLATE - ROPS cab or canopy mounting (Must be ordered when mounting cab or canopy in field installations)

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

4a

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

5

L42511

BLOCK

PLATE - pin retaining

2шт.

6

L53816

AXLE PIN

PIN - hydra-leveling, Serial Range: cylinders-chassis

2шт.

7

L53815

AXLE PIN

PIN - lift, Serial Range: cylinders-chassis

2шт.

8

G33555

CYLINDER

- hydraulic, hydra-leveling, Parts list Figures 252 and 253A

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

10

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

11

D34656

PIN,38.1mm OD x 101.6mm L

- hydra-leveling cylinder to lift frame

2шт.

12

G33603

CYLINDER

- hydraulic, R.H. loader lift, Parts list Figures 256 and 257A

2шт.

13

G33602

CYLINDER

- hydraulic, L.H. loader lift, Parts list Figures 256 and 257A

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinders to lift frame

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

18

D34664

RING

- pin retaining

2шт.

19

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

2шт.

20

L53078

AXLE PIN

PIN - lift frame pivot

1шт.

23

L26718

FRAME ASSEMBLY - loader lift, Includes: Ref. 24 - 28

1шт.

24

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- lift frame at chassis

2шт.

25

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at hydra-leveling and bucket cylinders

4шт.

26

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift frame at lift cylinder

2шт.

27

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- lift frame at bucket linkage

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at bucket

2шт.

29

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

HHCS - 3/4" - 10 NC x 6-1/2"

2шт.

30

D34647

LINK

LEVER ASSEMBLY - bucket, outer (R.H.), Includes: Ref. 31

1шт.

31

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

32

D34647

LINK

LEVER ASSEMBLY - bucket, outer (L.H.), Includes: Ref. 33

1шт.

33

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

34

D34653

PIN

- link spacer, upper

2шт.

35

L13971

LEVER ASSEMBLY - bucket, inner (L.H.), Includes: Ref. 36

1шт.

36

D31312

WASHER

BUSHING - lever

1шт.

37

L54267

LEVER ASSEMBLY - bucket, inner (R.H.), Includes: Ref. 38

1шт.

38

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- lever

1шт.

39

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

41

G33562

CYLINDER

- hyd., R.H. loader bucket, Parts list Figures 254 and 255A

1шт.

42

G33561

CYLINDER

- hyd., L.H. loader bucket, Parts list Figures 254 and 255A

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

44

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

45

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder to lift frame

2шт.

46

D34651

LINK

ASSEMBLY - loader bucket, R.H., Includes: Ref. 47 and 48

1шт.

47

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, at bucket lever

2шт.

48

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- link, at bucket

1шт.

49

D34650

LINK

ASSEMBLY - loader bucket, L.H., Includes: Ref. 50 and 51

1шт.

50

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, at bucket lever

2шт.

51

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- link, at bucket

1шт.

52

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , LH link 90º, 1/8" NPT x .84" lg

1шт.

52

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree (1/8" NPT) R.H. link (Not shown)

1шт.

53

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

54

L47231

PIN - bucket, Serial Range: link-bucket

2шт.

55

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

56

L47232

PIN

- lift, Serial Range: frame-bucket

2шт.

57

REF

INSTRUCTION

BUCKET ASSEMBLY - loader, See Figure 146

1шт.
