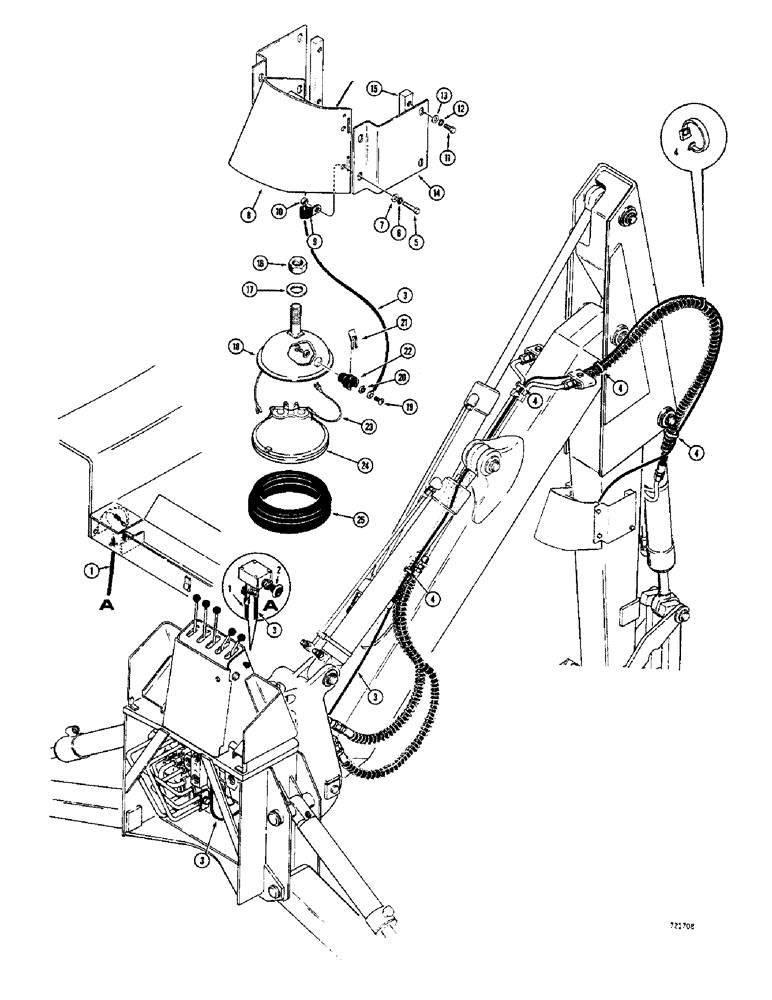

Запчасти Case 680CK (180) - DIPPER LIGHT, (USED WITH STANDARD DIPPER) (55) - ELECTRICAL SYSTEMS

1

L53995

WIRE - rear harness to dipper light switch (63" long")

1шт.

2

G13142

IGNITION SWITCH

SWITCH - dipper light

1шт.

3

L53996

WIRE - switch to dipper light (216" long)

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, wire retaining

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

7

95-8

WASHER,1/2"

- plain 1/2"

4шт.

8

D41427

SHIELD

- dipper light

1шт.

9

NLS

NO LONGER SERVICED

- wire

1шт.

10

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

11

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

13

95-8

WASHER,1/2"

- plain 1/2"

4шт.

14

L50503

PLATE - mounting, dipper lamp

2шт.

15

L50502

BLOCK

- tapped, weld on

2шт.

16

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

19

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4")

2шт.

20

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - lock, #8 (External tooth Shakeproof)

2шт.

21

10927

SPRING

- lamp

1шт.

22

B50293

TERMINAL CONNECTOR

- lamp

1шт.

23

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

24

D33182

LAMP

BULB - sealed beam

1шт.

25

D31441

RETAINER

- lamp

1шт.
