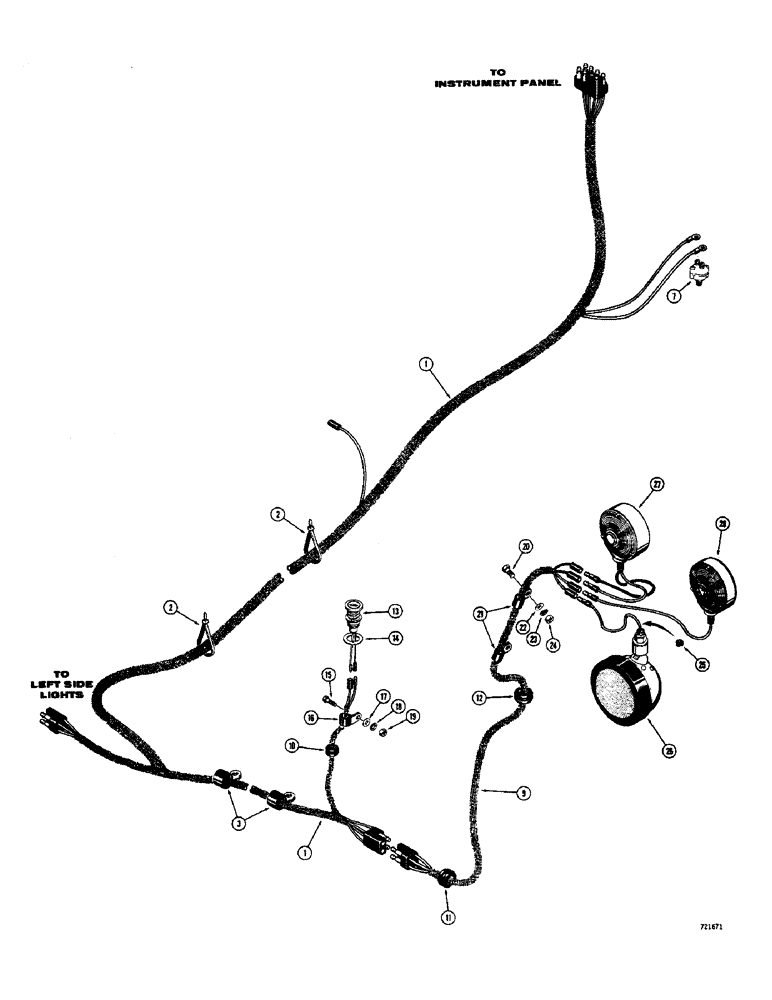

Запчасти Case 680CK (052) - ELECTRICAL SYSTEM, REAR HARNESS (55) - ELECTRICAL SYSTEMS

1

L53955

HARNESS

- main wiring, rear

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, Serial Range: harness-tube

2шт.

3

49774

CLAMP

- harness to reservoir mounting straps

2шт.

7

L47989

SWITCH

- brake, stop light

1шт.

8

L48480

SWITCH

- buzzer, low brake air pressure

1шт.

9

L53957

HARNESS

- rear lights, R.H. and L.H.

2шт.

10

A23870

GROMMET

- harness, at fuel tank top

1шт.

11

L17603

GROMMET

- harness, at fender and fuel tank side

2шт.

12

49562

GROMMET,11/16" ID x 1" Groove Dia

- harness, at fender top

2шт.

13

L11344

WARNING LIGHT

LIGHT - engine warning, Parts list Figure 54

1шт.

14

L11345

GASKET

- warning light

1шт.

15

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire to bracket

1шт.

17

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

25-104

NUT,1/4"-20, G5

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

21

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness to light bracket

4шт.

22

95-4

WASHER,1/4"

- plain () 1/4"

4шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

24

25-104

NUT,1/4"-20, G5

4шт.

25

A23870

GROMMET

- harness, at light bracket

2шт.

26

L19663

LIGHT

REAR LIGHT ASSEMBLY - 12 volt, Parts list Figure 54

2шт.

27

L26301

STOP AND TAILLIGHT - 12 volt, Parts list Figure 54

2шт.

28

L26302

LIGHT

FLASH AND DIRECTIONAL LIGHT - 12 volt, Parts list Figure 54

2шт.
