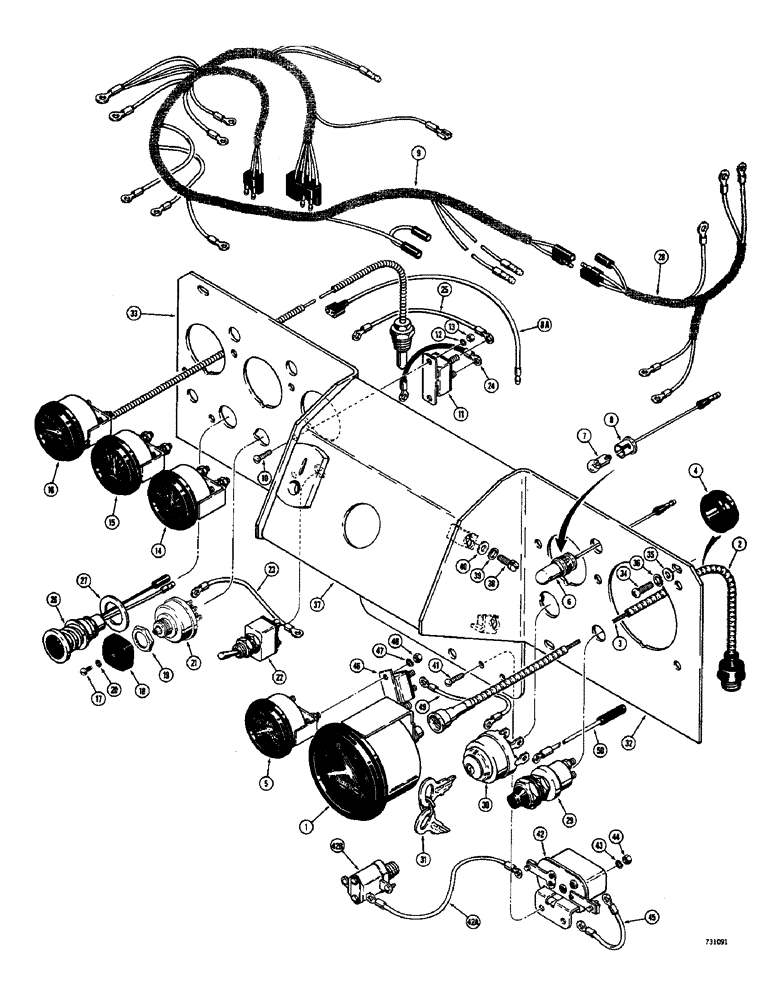

Запчасти Case 680CK (050) - ELECTRICAL SYSTEM, INSTRUMENT PANELS (55) - ELECTRICAL SYSTEMS

1

A11190

TACHOMETER

- engine speed (R.P.M.)

1шт.

2

L11334

CABLE

ASSEMBLY - tachometer, Inlcudes: Ref. 3

1шт.

3

A24523

KIT

CABLE KIT - tachometer core (Cut length)

1шт.

4

L17604

GROMMET

- tachometer cable at fire wall (If used)

1шт.

5

L12141

ELECTRICAL GAUGE

GAUGE - brake air pressure

1шт.

6

L55568

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, Inlcudes: Ref. 7 and 8

3шт.

7

A22349

BULB

- light, 12 volt

1шт.

8

NSS

NOT SOLD SEPARAT

SOCKET - light

1шт.

8a

L53961

ELECTRICAL WIRE

WIRE - connecting, harness to panel lights

1шт.

9

L53954

HARNESS

- wiring, L.H. panel

1шт.

10

182-126

SCREW,Sl Pan Hd, #10 - 24 x 5/8"

- machine, pan head (#10 - 24 NC x 5/8")

2шт.

11

L11342

BREAKER

CIRCUIT BREAKER - electrical, 25 AMP

1шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

14

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, alternator

1шт.

15

A19347

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

16

L54184

GAUGE ASSY.

GAUGE - converter oil temperature

1шт.

L10376

SWITCH

ASSEMBLY - lights, Inlcudes: Ref. 17 - 21

1шт.

17

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- special

1шт.

18

A20465

KNOB

- switch

1шт.

19

A20467

NUT

- special

1шт.

20

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

21

NSS

NOT SOLD SEPARAT

SWITCH - lights

1шт.

22

T31464

SWITCH

- toggle, rear flood light

1шт.

23

L53692

ELECTRICAL WIRE

WIRE - connector, toggle switch to master light switch

1шт.

24

L53959

ELECTRICAL WIRE

WIRE - connector, circuit breaker to master light switch

1шт.

25

L53958

ELECTRICAL WIRE

WIRE - connector, circuit breaker ammeter

1шт.

26

L11344

WARNING LIGHT

- engine, low or no oil pressure or high coolant temperature, Parts list Figure 54

1шт.

27

L11345

GASKET

- warning light

1шт.

28

L53953

HARNESS

- wiring, R.H. instrument panel

1шт.

29

D34924

SWITCH

- starter, push button

1шт.

L17820

SWITCH

AND KEY - electrical, Inlcudes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

31

A20346

KEY

- switch, ignition

1шт.

32

L53438

PANEL - instrument, R.H.

1шт.

33

L53439

SUPPORT

PANEL - instrument, L.H.

1шт.

34

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

RHMS - 1/4" - 20 NC x 3/4" (Phillips head) zinc plated

4шт.

35

195-518

WASHER,1/4", SAE

- plain (1/4") zinc plated

4шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

37

L53441

PANEL - instrument, center

1шт.

38

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head (#10 - 24 NC x 1/2")

4шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

40

95-3

WASHER,#12

- plain (#10)

4шт.

41

182-203

SCREW

- machine, pan head (1/4" - 20 NC x 5/8")

2шт.

42

L53446

BUZZER

- warning, low brake air pressure

1шт.

42a

A13754

ELECTRICAL WIRE

WIRE - connecting buzzer switch

1шт.

42b

L48480

SWITCH

- buzzer

1шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

25-104

NUT,1/4"-20, G5

2шт.

45

A31060

ELECTRICAL WIRE

WIRE - ground, buzzer

1шт.

46

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

47

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

48

129-37

NUT,#10-32

- hex. (#10 - 24 NC)

1шт.

49

L53960

ELECTRICAL WIRE

WIRE - circuit breaker to ingnition switch

1шт.

50

L57188

WIRE - ignition switch to cab accessories

1шт.
