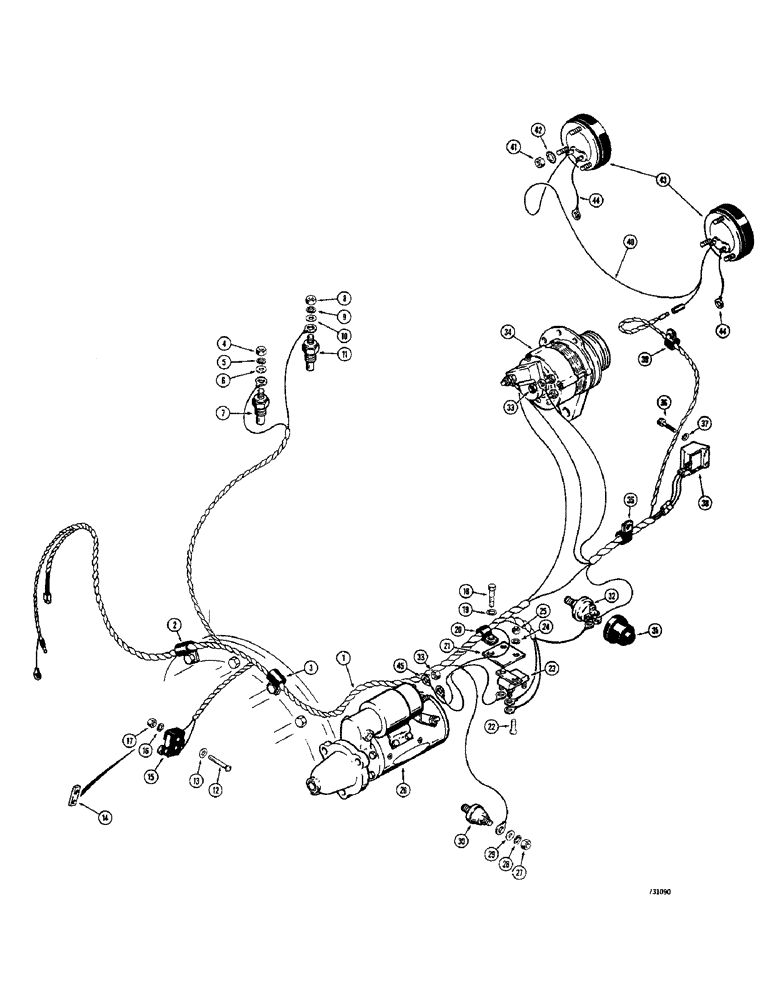

Запчасти Case 680CK (046) - ELECTRICAL SYSTEM, FRONT HARNESS (55) - ELECTRICAL SYSTEMS

1

L53956

HARNESS

HARNESS - main wiring, front

1шт.

2

49831

CLAMP

CLAMP - harness to fly wheel housing

1шт.

3

A22880

CLIP

CLAMP - harness to flywheel housing

1шт.

4

129-16

NUT,#8-32

NUT, #8-32

1шт.

5

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

6

195-509

WASHER,3/16"

WASHER - plain (#8)

1шт.

7

L50238

SWITCH

SENDING UNIT - engine water temperature warning light

1шт.

8

129-37

NUT,#10-32

NUT, #10-32

1шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

10

195-512

WASHER,#10

WASHER - plain () #10

1шт.

11

A21462

SENDER UNIT

SENDER SENDING UNIT - water temperature gauge

1шт.

12

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

SCREW - machine, round head (#6 - 32 NC x 1-1/4")

2шт.

13

195-6

WASHER,#6

WASHER - plain () if used #6

2шт.

14

L52496

PLATE

PLATE - switch mounting (Late production)

1шт.

15

L54683

SWITCH

SWITCH - neutral starting

1шт.

16

192-5

LOCK WASHER,#6

WASHER, LOCK, , If used #6

2шт.

17

129-5

NUT,#6-32

NUT, , If used #6-32

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLAMP - front harness at circuit breaker

1шт.

21

L18960

BRACKET

BRACKET - circuit breaker

1шт.

22

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - machine, round head (#10 - 24 NC x 1/2")

2шт.

23

L11434

CIRCUIT BREAKER - electrical, 60 amp

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

2шт.

26

A64907

ELECTRIC MOTOR

STARTER - engine, electrical (Parts list pages 38 thru 42)

1шт.

26

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

26

104212A1C

CORE-STARTER

Return Part Number

1шт.

27

129-37

NUT,#10-32

NUT, #10-32

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

29

195-512

WASHER,#10

WASHER - plain () #10

1шт.

30

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure indicator light

1шт.

31

L13821

BOOT

BOOT - protective, pressure switch

1шт.

32

D28796

SWITCH

SWITCH - engine oil pressure

1шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

3шт.

34

A41340

ALTERNATOR

ALTERNATOR - electrical, Parts list Figure 44

1шт.

35

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - harness, at suction line mounting bracket

1шт.

36

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

SCREW - hex, socket head (#10 - 24 NC x 3/8")

3шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

38

L11351

REGULATOR

SPARE PART VOLTAGE REGULATOR - electrical

1шт.

39

49832

CLAMP

CLAMP - wire, radiator shroud

1шт.

40

L11352

ELECTRICAL WIRE

WIRE WIRE - headlight connecting

1шт.

41

129-7

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

6шт.

42

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

43

D30243

LAMP

HEADLIGHT - 12 volt, Parts list Figure 54

2шт.

44

A15941

ELECTRICAL WIRE

WIRE WIRE - headlight ground

2шт.

45

NLS

NO LONGER SERVICED

WIRE - solenoid to circuit breaker

1шт.
