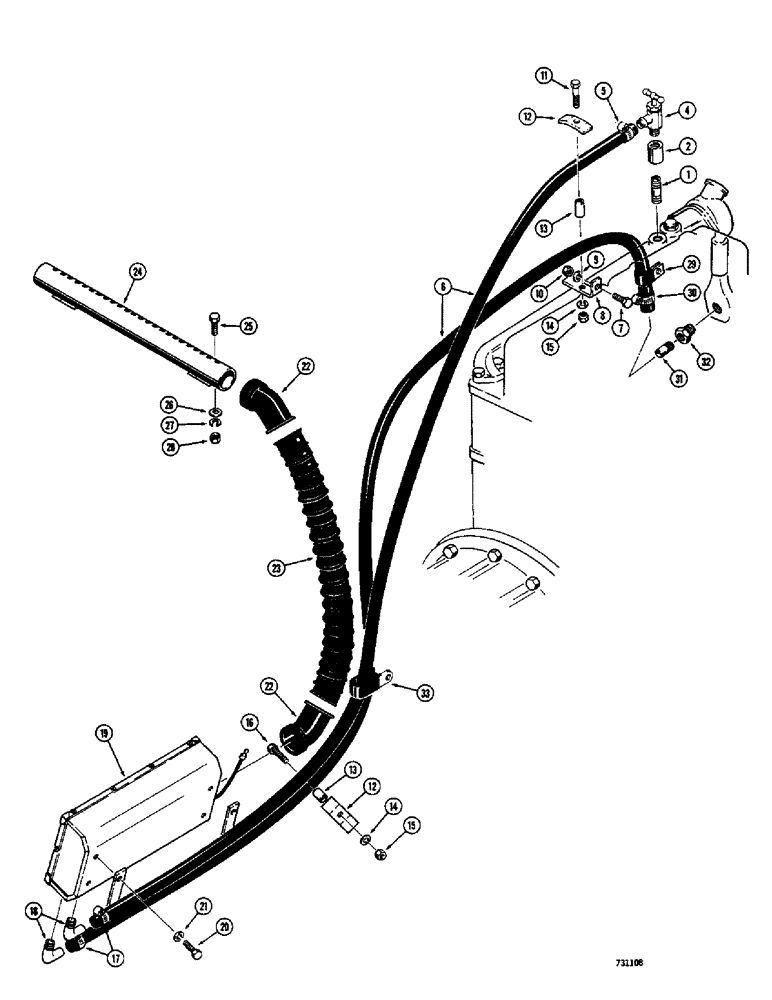

Запчасти Case 680CK (248) - CAB HEATER AND RELATED PARTS (50) - CAB CLIMATE CONTROL
№
Артикул
Название
Примечание
Количество
1
221-1164
HYD CONNECTOR
NIPPLE - pipe
1шт.
2
221-1328
X
COUPLING - pipe
1шт.
4
A16764
VALVE
- water shutoff
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
1шт.
6
L46646
HOSE
- heater, low pressure (95" long)
2шт.
7
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
8
L19212
BRACKET - hose mounting
1шт.
8a
195-518
WASHER,1/4", SAE
- plain (1/4") Not shown
1шт.
9
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
10
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
1шт.
11
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
1шт.
12
A14078
CLAMP
- hose
1шт.
13
D33554
BUSHING
SPACER - hose clamp
1шт.
14
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
15
9635082
NUT,5/16" - 18, Gr 5
1шт.
16
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
(If used) Hex, 5/16"-18 x 2", G5
1шт.
17
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
2шт.
18
A19941
PACKAGE
ELBOW - special, 90 degrees
2шт.
19
A12897
HEATER - 12 volt, Inlcudes: Ref. 19A
1шт.
19a
A18347
MOTOR HOUSING
MOTOR - heater fan (Not shown)
1шт.
20
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
21
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
22
L13465
ELBOW - special, 45 degree
2шт.
23
L13466
HOSE - low pressure (26" long) When stock is exhausted, order L18330 hose
1шт.
23
L18330
HOSE - low pressure (30" long)
1шт.
24
L15163
DEFROSTER
TUBE - defroster
1шт.
25
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
26
195-102
WASHER,1/4"
- standard wrot () 1/4"
2шт.
27
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
28
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
29
R14668
CLAMP
- hose (If used)
1шт.
30
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
1шт.
31
L17985
FITTING,3/8" - 18 NPT
NIPPLE - heater hose, special
1шт.
32
221-1092
REDUCER,Hex, 3/4" x 3/8" NPT
Bushing Hex, 3/4" x 3/8" NPT
1шт.
33
L50799
SHIN
CLAMP - heater hose, at side of cab
1шт.
Выбрано товаров: 35
