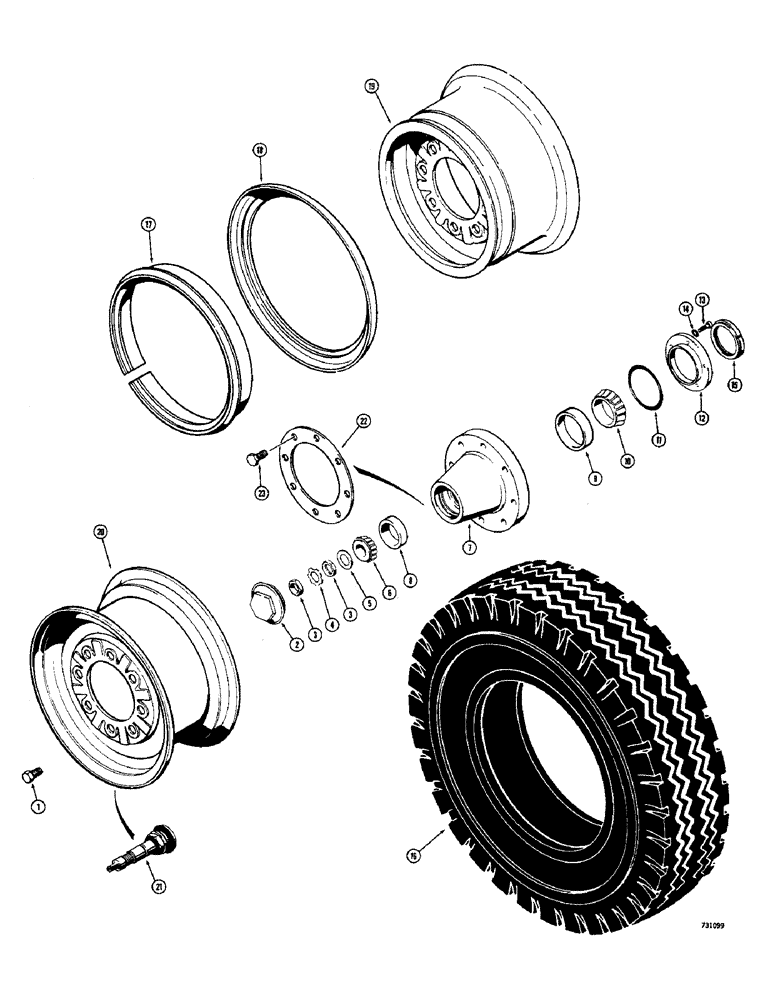

Запчасти Case 680CK (128) - FRONT STEERING WHEELS, RIM, HUB AND BEARINGS, USED ON MODELS (44) - WHEELS

1

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

2

A26011

CAP

- outer bearing, wheel

2шт.

3

25-1516

NUT,Jam, 1"-14, G5

- hex., lock (1" - 14 NF)

4шт.

4

A26542

LOCK WASHER

- lock, special

2шт.

5

A26681

BEARING WASHER

WASHER - thrust, outer bearing

2шт.

6

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - bearing, outer

2шт.

L11382

WHEEL ASSY.

HUB ASSEMBLY - front steering wheel, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - front steering wheel

1шт.

8

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, outer

1шт.

9

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, inner

1шт.

10

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - bearin, inner

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, retainer

2шт.

12

A26992

RETAINER

- seal

2шт.

13

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

10шт.

14

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, external tooth (1/4") Shakeproof

10шт.

15

A26991

SEAL

- front steering wheel

2шт.

16

REF

INSTRUCTION

TIRE - front

2шт.

L12274

WHEEL ASSEMBLY - front steering, Includes: Ref. 17 - 19

2шт.

17

L30746

LOCKING RING

RING - lock

1шт.

Not part of the L12274 Rim Assy

1шт.

18

L30745

RING

- side

1шт.

Not part of the L12274 Rim Assy

1шт.

19

NSS

NOT SOLD SEPARAT

RIM - wheel, front steering

1шт.

20

L11745

WHEEL (STEERING)

WHEEL - front steering

2шт.

21

A20058

VALVE STEM

- Wheel (Used with 8 ply tire)

2шт.

L55725

KIT

- front wheel spacer, Includes: Ref. 22 and 23

1шт.

22

L55724

SPACER

- wheel

2шт.

23

L13538

WHEEL BOLT

- wheel

16шт.
