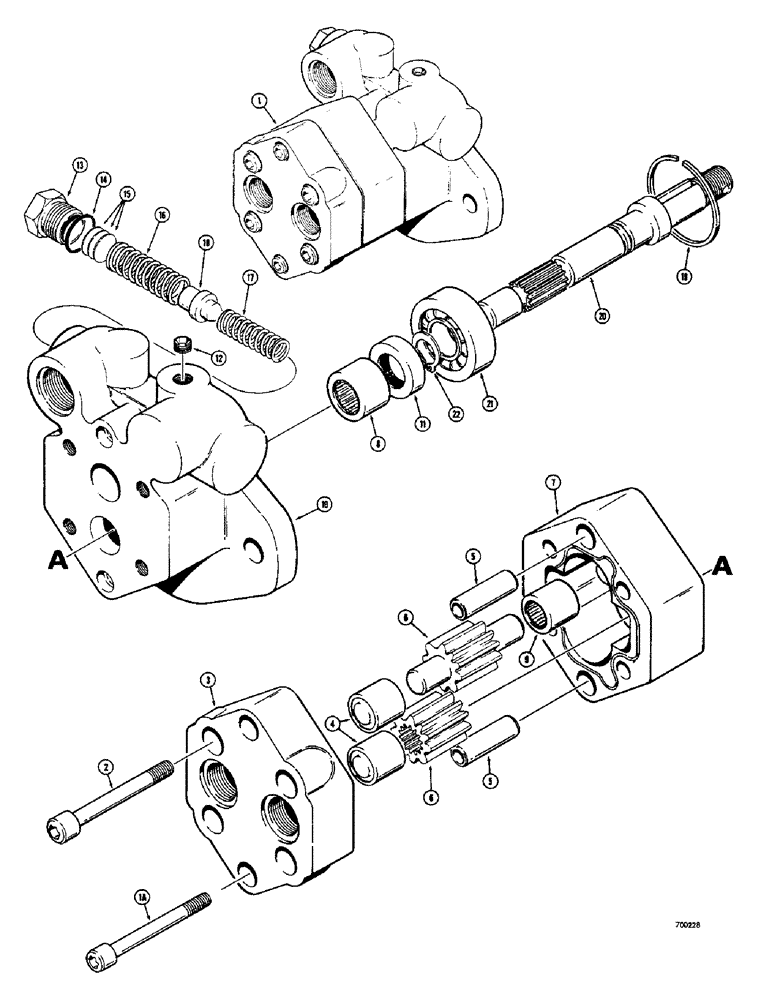

Запчасти Case 680CK (126) - STEERING HYDRAULICS, L17373 POWER STEERING PUMP (41) - STEERING

1

L17373

PUMP

ASSEMBLY - power steering, Includes: Ref. 1A - 22

1шт.

1-L17373 is no longer avail.--A139693 pump has approx. the same flow. The mounting and the drive end are simular. The port sizes are different. A relief valve (possibly D71668) needs to be plumbed into the system and reset to the 1200psi req'd. for the circuit. There are no instructions, anyone trying the installation will have to be a little inventive.

1шт.

1a

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

SCREW - hex. socket head (1/4"-20 NC x 2-1/4")

2шт.

2

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - hex. socket head (5/16" - 18 NC x 2-1/4")

4шт.

L32758

COVER ASSEMBLY - pump, rear, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump, rear

1шт.

4

L32759

BEARING

- needle

2шт.

5

NLS

NO LONGER SERVICED

PIN - dowel, 1-1/4" long

2шт.

6

L32850

GEAR SET - matched, drive and driven

1шт.

7

L32771

HOUSING - gear

1шт.

L32760

BODY ASSEMBLY - pump, power steering, Includes: Ref. 8 - 18

1шт.

L32851

PACKAGE, REPAIR

KIT - pump body, power steering, Includes: Ref. 8 - 10

1шт.

8

A30586

NEEDLE BEARING

BEARING - needle, shaft

1шт.

9

L32759

BEARING

- needle, driven gear

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - pump, power steering

1шт.

11

L32761

OIL RESERVOIR

SEAL - oil, shaft

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

13

L32764

PLUG - special (3/4" - 16 NF)

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

15

L32766

SHIM

- spacer, .0075" thick

1шт.

15

L32765

SHIM - spacer, .0149" thick

1шт.

15

L32767

SHIM

- spacer, .090" thick

1шт.

16

L32763

VALVE SPRING

SPRING - tension, outer

1шт.

17

L32768

VALVE SPRING

SPRING - tension, inner

1шт.

18

NLS

NO LONGER SERVICED

POPPET - valve type

1шт.

19

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , shaft 1.562", Int, #156

1шт.

20

L32769

SHAFT

- drive, pump

1шт.

21

40008

CLAMP

BEARING - ball

1шт.

22

C15585

RING, SNAP

RING - retaining, bearing

1шт.
