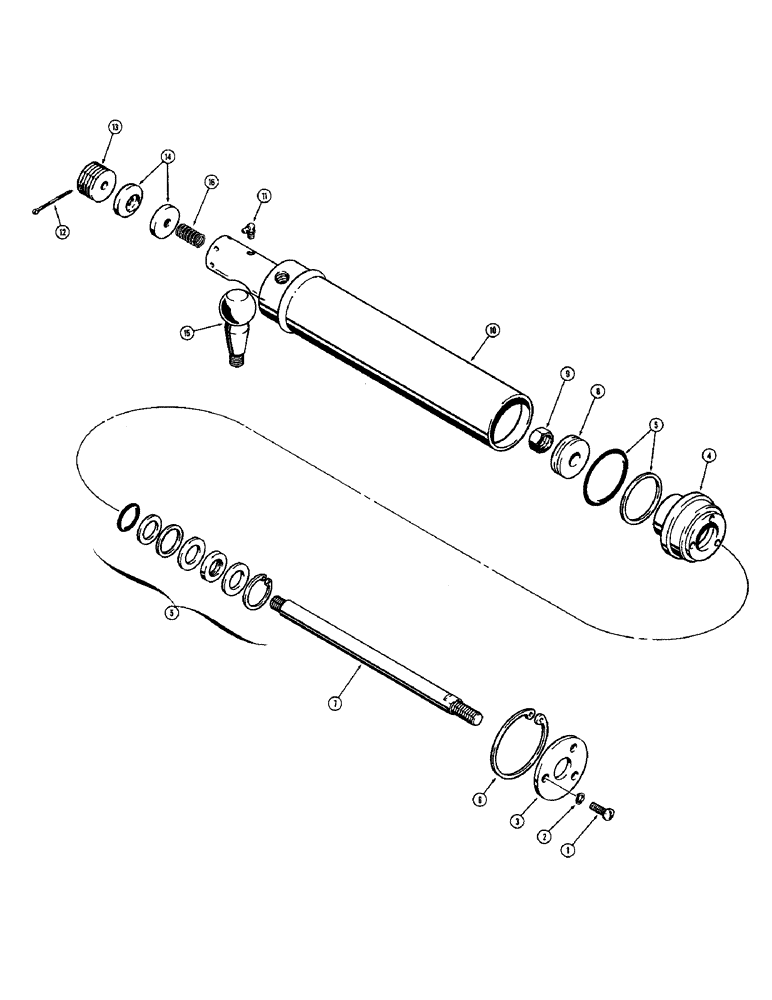

Запчасти Case 680CK (124) - STEERING HYDRAULICS, A55158 STEERING CYLINDER (41) - STEERING

A55158

CYLINDER BLOCK

CYLINDER - steering, 1-3/4" I.D. x 9" stroke, Includes: Ref. 1 - 16

2шт.

1

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

RHMS - #10 - 24 NC x 1/2"

3шт.

2

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

3

A35887

PLATE ASSY.

PLATE - end

1шт.

4

A24973

GLAND

ASSEMBLY - complete (Replaces A23973)

1шт.

5

A36396

SEAL KIT

SEAL KIT - gland

1шт.

6

A35885

RING

- snap, gland retaining

1шт.

7

A55955

ROD

- piston

1шт.

8

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY - cylinder

1шт.

9

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex, lock (3/8" - 24 NF)

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE WELDMENT - cylinder

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

13

A35890

PLUG

- adjusting

1шт.

14

A35889

SEAT

- ball stud

2шт.

15

A35870

STUD

- ball joint

1шт.

16

A35888

VALVE SPRING

SPRING - tension

1шт.

12

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
