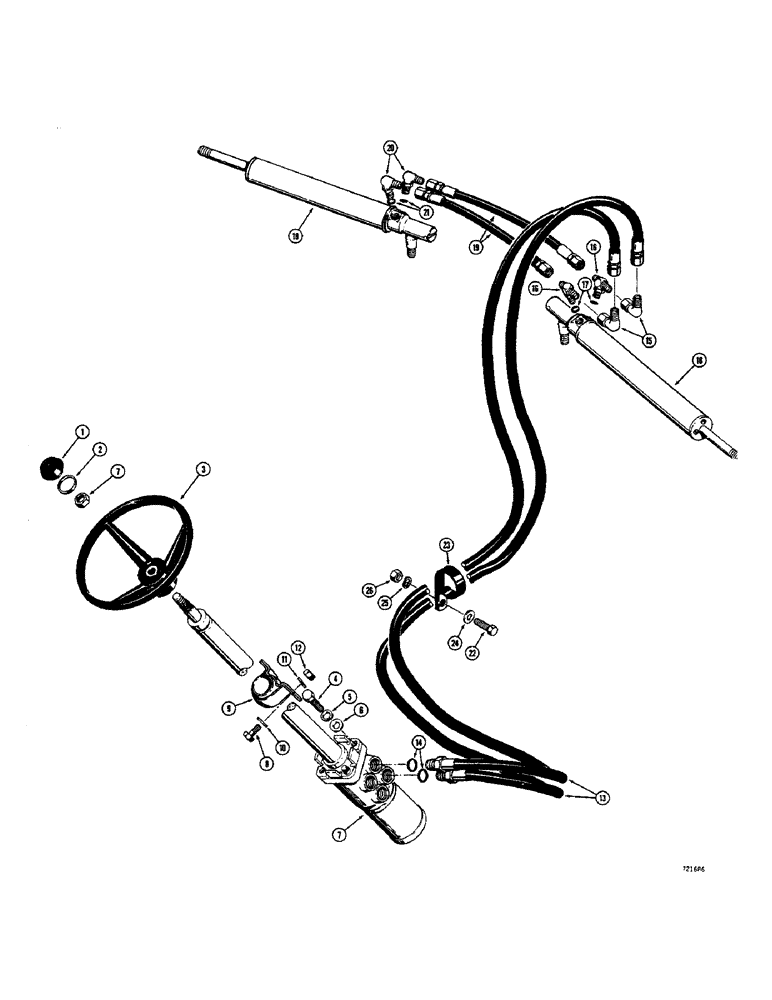

Запчасти Case 680CK (120) - STEERING HYDRAULICS (41) - STEERING

1

A62210

PLUG

CAP - steering wheel

1шт.

2

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RETAINER - cap

1шт.

3

A65544

STEERING WHEEL

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

6

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

7

L53642

PUMP

AND COLUMN - manual steering, Parts list Figure 122

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

L50073

BEARING CARRIER

BEARING - steering column support

1шт.

10

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

13

L53684

HOSE,0.38" ID x 63.00", SAE 100R1

ASSY, , Manual Pump to Steering Cylinders, Includes: Ref. 14 0.38" ID x 63.00", SAE 100R1

2шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- swivel, 90 degrees

2шт.

16

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, side, Includes: Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

18

A55158

CYLINDER BLOCK

CYLINDER - steering, Parts list Figure 124

2шт.

19

L12347

PIPE

HOSE - steering cylinder crossover (15-1/4" long)

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degrees, Includes: Ref. 21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose to flywheel housing

1шт.

24

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
