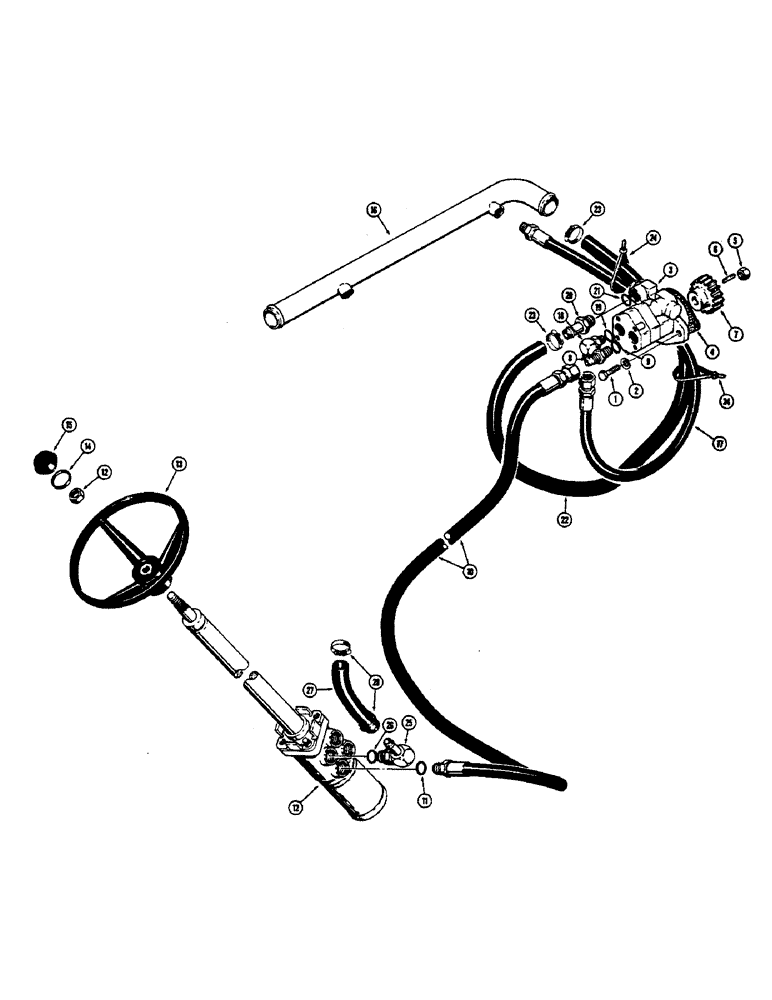

Запчасти Case 680CK (118) - STEERING HYDRAULICS, STEERING PUMP PRESSURE AND RETURN LINES (41) - STEERING

1

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

2шт.

2

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

3

L17373

PUMP

- power steering, Parts list Figure 126

1шт.

4

A58617

GASKET

- pump

1шт.

5

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., (1/2" - 20 NF)

1шт.

6

L43842

KEY

- special, gear retaining

1шт.

7

L43703

GEAR

- pump drive

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

10

L53685

HOSE ASSY.

HOSE - pressure, pump to manual steering pump (67" long), Includes: Ref. 11

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

L53642

PUMP

AND COLUMN - manual steering, Part list Figure 122

1шт.

13

A65544

STEERING WHEEL

1шт.

14

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RING - cap retainer

1шт.

15

A62210

PLUG

CAP - steering wheel

1шт.

16

REF

INSTRUCTION

TUBE - suction, equipment pump

1шт.

17

L18691

HOSE ASSY.

HOSE - suction tube to power steering pump (45" long)

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

20

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

Includes Ref. 21 5/8" Hose x 7/8"-14 ORB, Beaded

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

22

L53938

HOSE - return, pump relief to oil cooler

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose

2шт.

25

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

STEM - hose barb, 90 degrees, Includes: Ref. 26

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

D56400

HOSE

Return, Manual Steering Pump to Hydraulic Reservoir

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.
