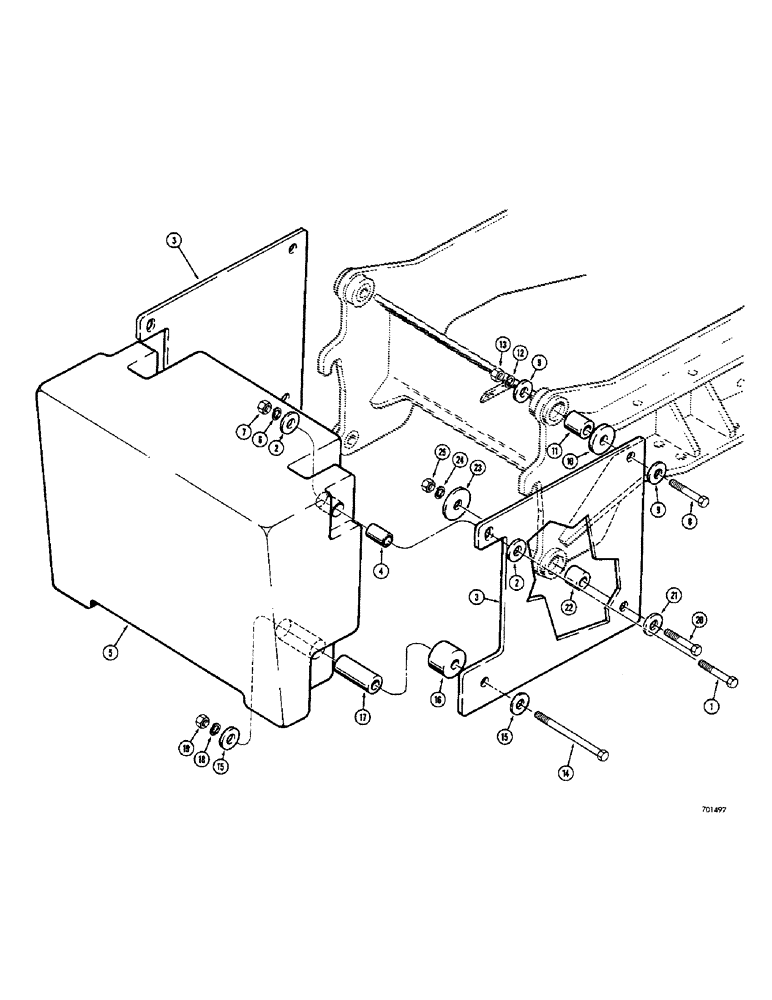

Запчасти Case 680CK (150) - REAR COUNTERWEIGHT AND MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

2

A30849

WASHER - speical

4шт.

3

L47894

PLATE - counterweight mounting

2шт.

4

L47899

BUSHING - counterweight, upper

2шт.

5

L10906

COUNTERWEIGHT - rear, 2600 lbs.

1шт.

6

192-171

LOCK WASHER,1"

standard sect. lock, 1"

2шт.

7

25-1016

NUT,1"-8, G5

2шт.

8

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

9

A30849

WASHER - special

4шт.

10

L47895

SPACER - mounting plate alignment

2шт.

11

L47896

HALF BLADE

BUSHING - upper mounting bolt at unit

2шт.

12

192-171

LOCK WASHER,1"

standard sect. lock, 1"

2шт.

13

25-1016

NUT,1"-8, G5

2шт.

14

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

HHCS - 1" - 8 NC x 9"

2шт.

15

A30849

WASHER - special

4шт.

16

L47897

SPACER - counterweight alignment, lower

2шт.

17

L47898

BUSHING - counterweight, lower

2шт.

18

192-171

LOCK WASHER,1"

standard sect. lock, 1"

2шт.

19

25-1016

NUT,1"-8, G5

2шт.

20

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

21

A30849

WASHER - 1" - 8 NC x 4"

2шт.

22

L47900

BUSHING - lower mounting at unit

2шт.

23

L42515

WASHER

- special

2шт.

24

192-171

LOCK WASHER,1"

standard sect. lock, 1"

2шт.

25

25-1016

NUT,1"-8, G5

2шт.
