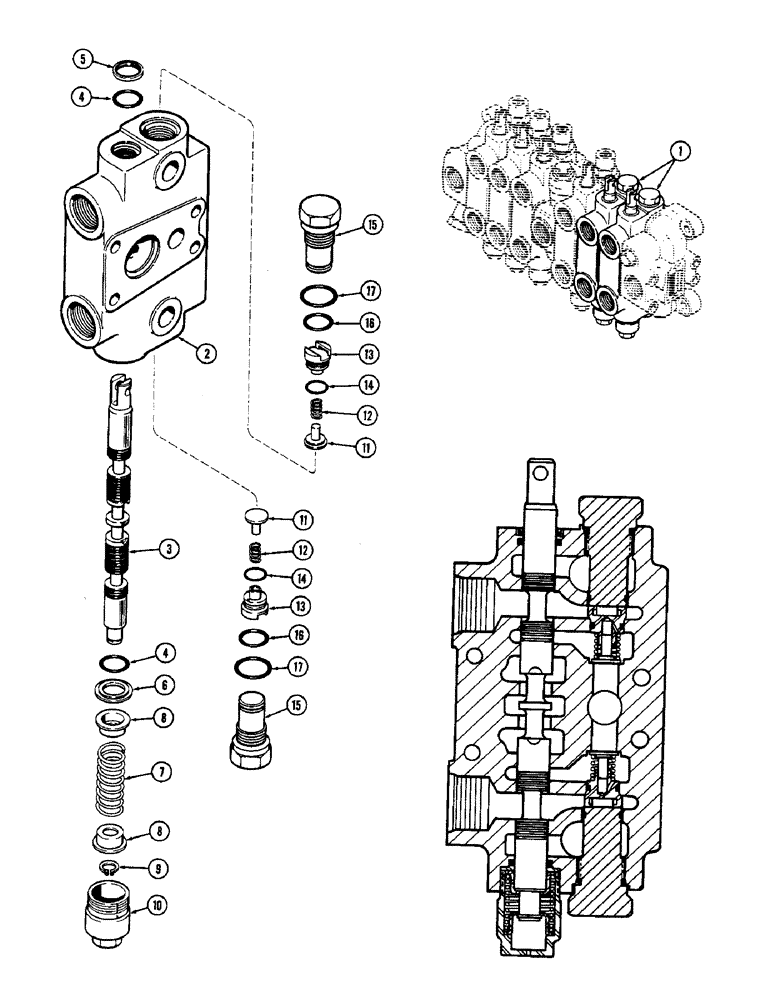

Запчасти Case 680CK (282) - G33121 STABILIZER SECTIONS (35) - HYDRAULIC SYSTEMS

1

G33121

VALVE

ASSY. - stabilizer sections, Includes: Ref. 2 - 17

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - stabilizer valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - stabilizer valve

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - body (3/4 x 15/16 x 3/32")

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool (3/4 x 1 x 1/8")

1шт.

6

G33803

RETAINER

- body "O" ring

1шт.

7

G34463

SPRING

- spool centering (2-9/32" free length)

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check (11/16" free length)

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

"O" RING - plug (5/8 x 3/4 x 1/16")

2шт.

15

G33122

PLUG,ORB

ASSY. - relief port, Includes: Ref. 16 and 17

2шт.

16

G33093

O-RING

"O" RING - plug (3/4 x 7/8 x 1/16")

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - plug (15/16 x 1-1/8 x 1/8")

1шт.
