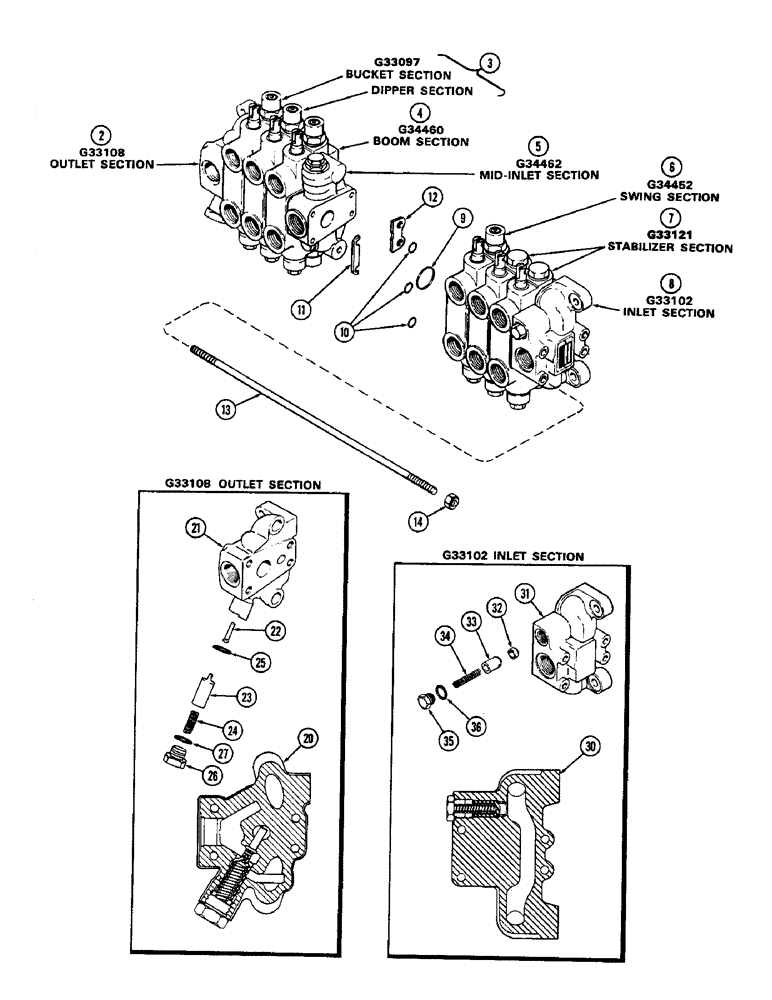

Запчасти Case 680CK (272) - G34451 BACKHOE CONTROL VALVE, G33108 OUTLET SECTION, G33102 (35) - HYDRAULIC SYSTEMS

G34451

VALVE ASSY. - control, Includes: Ref. 1 - 14

1шт.

2

G33108

MANIFOLD

OUTSET SECTION - (See ref. 20)

1шт.

3

G33097

VALVE

BUCKET & DIPPER SECTIONS - (See Figure 274)

2шт.

4

G34460

VALVE

BOOM SECTION - (See Figure 276)

1шт.

5

G34462

AIR INTAKE TUBE

MID-INLET SECTION - (See Figure 278)

1шт.

6

G34452

VALVE BLOCK

SWING SECTION - (See Figure 280)

1шт.

7

G33121

VALVE

STABILIZER SECTIONS - (See Figure 282)

2шт.

8

G33102

MANIFOLD

INLET SECTION - (See ref. 30)

1шт.

9

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

"O" RING - section ports (1-7/16 x 1-5/8 x 1/8")

8шт.

10

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - section ports (15/16 x 1-1/8 x 1/8")

24шт.

11

G33964

SHIM,.002" Thk

Section, Top .002" Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

8шт.

13

G34466

TIE-ROD

ROD - tie, valve sections (3/8" N.C. x 19-3/4")

4шт.

14

25-106

NUT,3/8"-16, G5

- tie rod (3/8" N.C. hex.)

8шт.

20

G33108

MANIFOLD

SECTION ASSY. - outlet, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

22

G33110

PISTON

- regeneration sensing, oulet section

1шт.

23

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, oulet section

1шт.

24

G33112

SPRING

- regeneration spool (2-3/16" free length), oulet section

1шт.

25

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - manifold (7/8 x 1-1/16 x 3/32"), oulet section

1шт.

26

G33113

PLUG

- regeneration spool, oulet section

1шт.

27

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - plug (1-1/16 x 1-5/16 x 1/8"), oulet section

1шт.

30

G33102

MANIFOLD

SECTION ASSY. - inlet, Includes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, inlet

1шт.

32

G33104

SEAT

- check valve poppet, inlet section

1шт.

33

G33105

VALVE POPPET

POPPET - check valve, inlet section

1шт.

34

G33106

SPRING

- check valve (2-1/16" free length), inlet section

1шт.

35

A39586

PLUG

- check valve, inlet section

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32"), inlet section

1шт.
