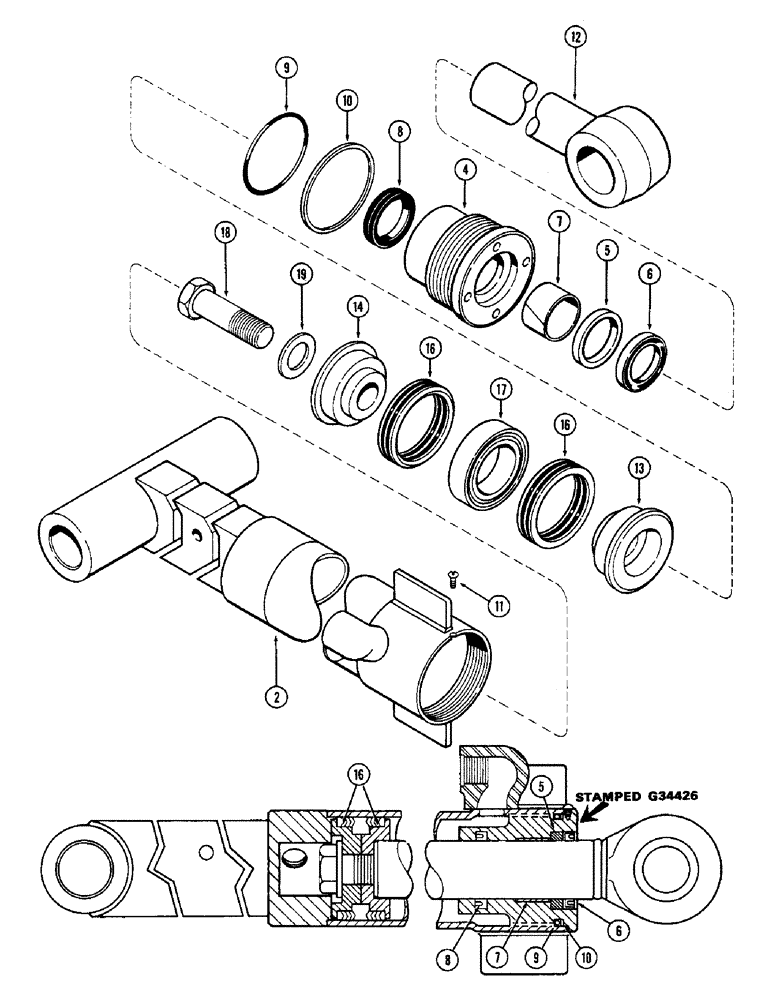

Запчасти Case 680CK (269C) - G34426 BACKHOE DIPPER EXTENSION CYLINDER, 3" DIA. CYLINDER (35) - HYDRAULIC SYSTEMS

2

G34427

TUBE,78.81 mm L

- cylinder body

1шт.

G34426

CYLINDER

ASSY. - dipper extension (Stamped G34426 on gland), Includes: Ref. 4 - 19

1шт.

G34328

GLAND

ASSY. - (Hand stamp for identification), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

7

G34302

BEARING

- center

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

8

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G34432

ROD

- piston (1-1/2" dia.)

1шт.

13

G33150

PISTON

- split (Rod end)

1шт.

14

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY . - piston, Includes: Ref. 16 and 17

1шт.

Part of cylinder repair seal kit P/N G34332

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2 N.F. hex.)

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G34332

SEAL

KIT - cylinder repair, Includes: Ref. 6 thru 10 and 14

1шт.
