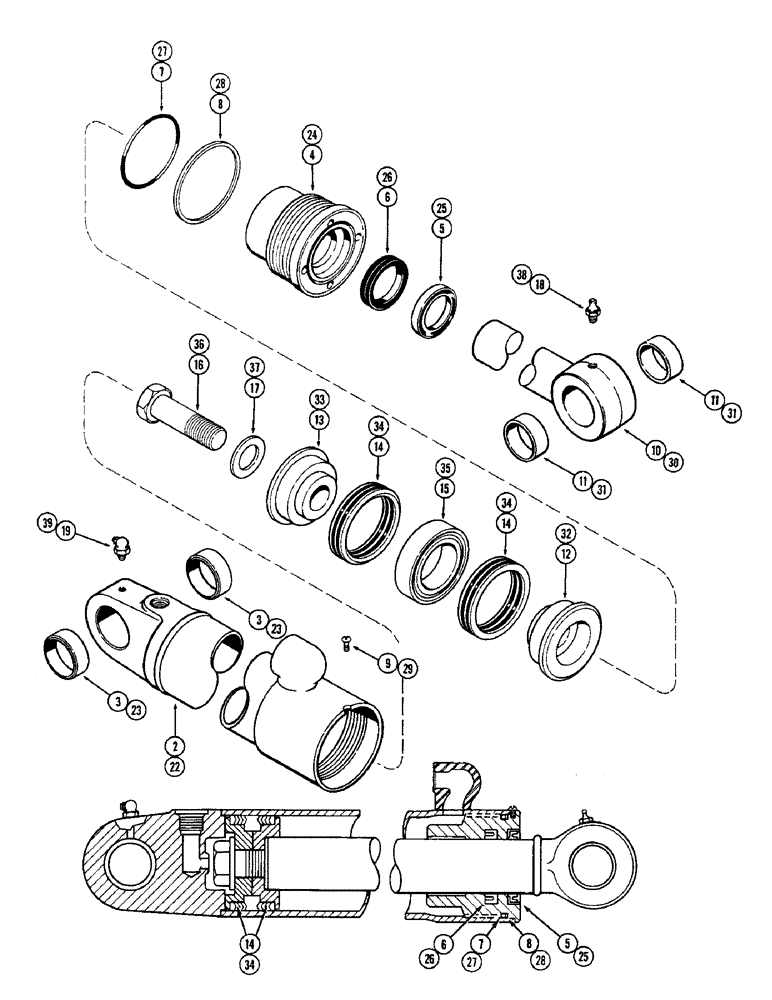

Запчасти Case 680CK (269A) - G34323 BACKHOE DIPPER CYL., 4-1/2" DIA. CYL. W/40-1/8" STROKE & 2 1/2" DIA. PISTON ROD, GLAND W/ INN (35) - HYDRAULIC SYSTEMS

G34323

CYLINDER ASSY. - dipper, Inlcudes: Ref. 2 - 19

1шт.

2

G34256

TUBE,49.56" L

ASSY. - cylinder body, Inlcudes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

G32741

GLAND

ASSY. - w/bushing, Inlcudes: Ref. 5 - 8

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer (2-1/2 x 3 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

6

D45571

ROD

SEAL - piston rod (2-1/2 x 3 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

8

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32567

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

G34324

ROD

ASSY. - piston (2-1/2" dia.), Inlcudes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D49163

PISTON

- split (Rod end)

1шт.

13

D46931

PISTON

- split (Bolt end)

1шт.

14

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G32567

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

17

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32567

SEAL

KIT - cylinder repair, Includes: Ref. 5 thru 8 and 14

1шт.

G34255

CYLINDER ASSY. - dipper, backhoe, Includes: Ref. 22 - 39

1шт.

22

G34256

TUBE,49.56" L

ASSY. - cylinder body, backhoe dipper, Includes: Ref. 23

1шт.

23

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube, backhoe dipper cylinder

2шт.

24

G32731

GLAND

ASSY. - w/bushing, backhoe dipper cylinder, Includes: Ref. 25 - 28

1шт.

25

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16"), backhoe dipper cylinder

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

26

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 7/16"), backhoe dipper cylinder

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

27

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8"), backhoe dipper cylinder

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

28

G32284

BACK-UP RING

- gland "O" ring back-up, backhoe dipper cylinder

1шт.

Part of cylinder repair seal kit P/N G32285

1шт.

29

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), backhoe dipper cylinder

1шт.

30

D44659

ROD

ASSY. - piston (2-1/4" dia.), backhoe dipper cylinder, Includes: Ref. 31

1шт.

31

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod, backhoe dipper cylinder

2шт.

32

D46425

PISTON

- split (Rod end), backhoe dipper cylinder

1шт.

33

D46931

PISTON

- split (Bolt end), backhoe dipper cylinder

1шт.

34

D47205

PACKING

ASSY. - piston ("V" type), backhoe dipper cylinder

2шт.

Part of cylinder repair seal kit P/N G32285

1шт.

35

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing, backhoe dipper cylinder

1шт.

36

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston, backhoe dipper cylinder

1шт.

37

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64"), backhoe dipper cylinder

1шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), backhoe dipper cylinder

1шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Backhoe dipper cylinder 90º, 1/8" NPT x .84" lg

1шт.

G32285

SEAL

KIT - cylinder repair, Includes: Ref. 25 thru 28 and 34, backhoe dipper

1шт.
