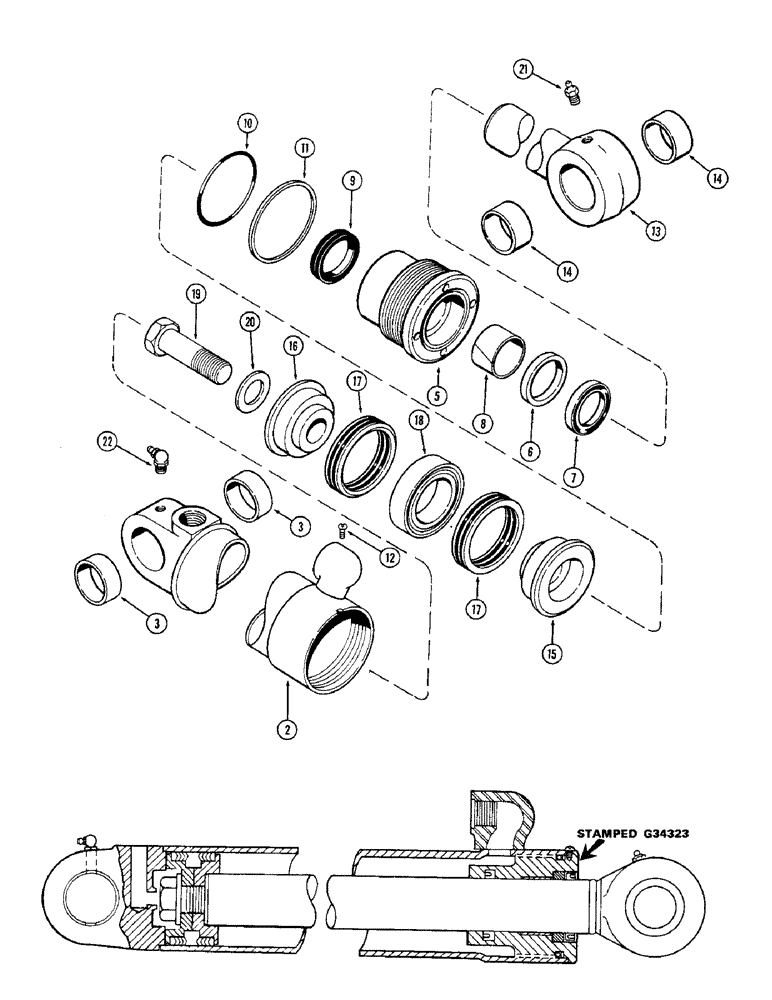

Запчасти Case 680CK (268) - G34323 BACKHOE DIPPER CYLINDER, 4-1/2" DIA. CYLINDER WITH 40 1/8" STROKE, GLAND WITH CENTER BEARING (35) - HYDRAULIC SYSTEMS

G34323

CYLINDER ASSY. - dipper (Stamped G34323 on gland), Inlcudes: Ref. 2 - 22

1шт.

G34323 Cylinder Assy effective with S/N 9111731

1шт.

2

G34256

TUBE,49.56" L

ASSY. - cylinder body, Inlcudes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G34329

GLAND

ASSY. - (Hand stamp for identification), Inlcudes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer (2-1/2 x 3 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G34333

1шт.

8

G34307

BEARING - piston rod, center

1шт.

Part of cylinder repair seal kit P/N G34333

1шт.

9

D45571

ROD

SEAL - piston rod (2-1/2 x 3 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34333

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34333

1шт.

11

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G34333

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

G34324

ROD

ASSY. - piston (2-1/2" dia.)

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D49163

PISTON

- split (Rod end)

1шт.

16

D46931

PISTON

- split (Bolt end)

1шт.

17

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of cylinder repair seal kit P/N G34333

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

20

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34333

SEAL

KIT - cylinder repair (Incl. all items w/*)

1шт.
