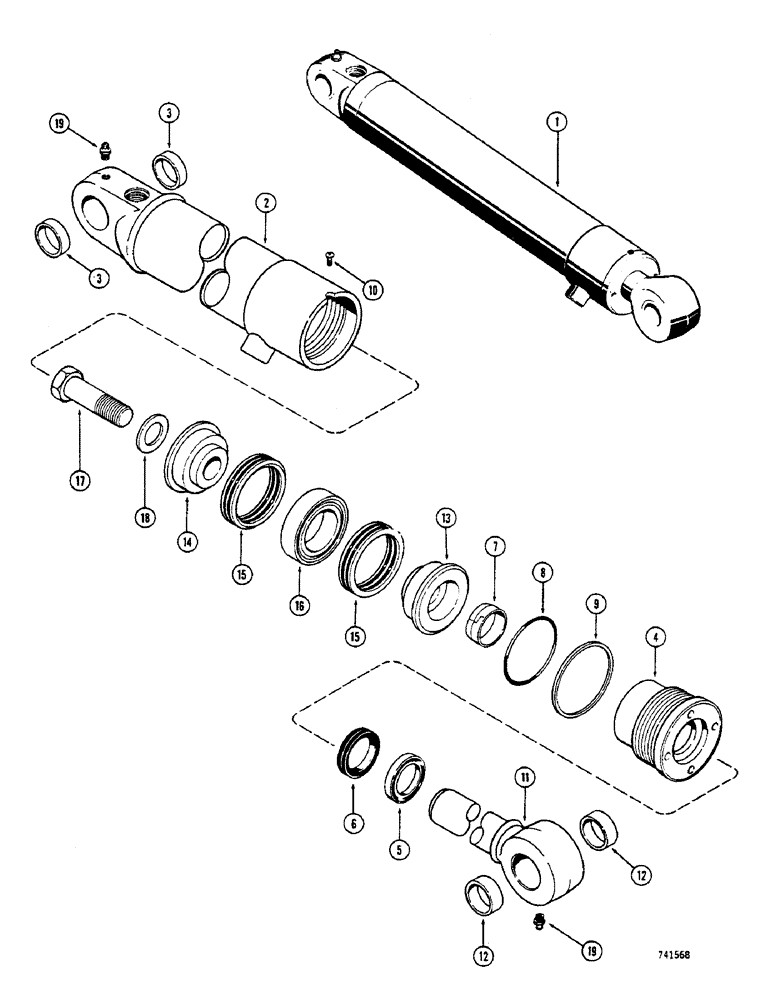

Запчасти Case 680CK (259A) - G33770 AND G33771 DROTT CLAM CYLINDERS, 3" DIA. CYLINDER WITH 10 1/2" STROKE, GLAND W/ INNER WIPER (35) - HYDRAULIC SYSTEMS

1

G33770

HYDRAULIC CYLINDER

CYLINDER ASSY. - clam, right hand, Inlcudes: Ref. 2 - 19

1шт.

1

G33771

CYLINDER BLOCK

CYLINDER ASSY. - clam, left hand, Inlcudes: Ref. 2 - 19

1шт.

2

D46911

CYLINDER

TUBE ASSY. - cylinder body, right hand, Inlcudes: Ref. 3

1шт.

2

D46910

TUBE

ASSY. - cylinder body, left hand, Inlcudes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G33485

GLAND

ASSY., Inlcudes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32292

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32292

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of cylinder repair seal kit P/N G32292

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32292

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33467

ROD

ASSY. - piston (1-1/2" dia.), Inlcudes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

G33150

PISTON

- split (Rod end)

1шт.

14

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Inlcudes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5 thru 9

1шт.
