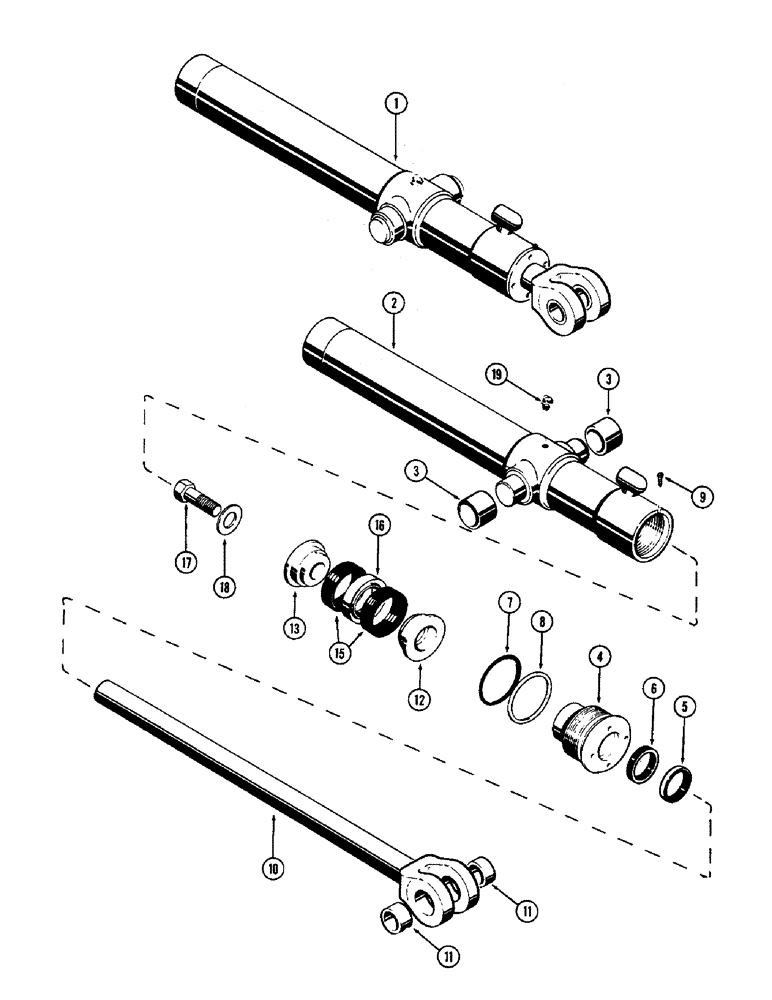

Запчасти Case 680CK (255A) - G33561 AND G33562 LOADER BUCKET CYLINDERS, 3" DIA. CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
G33561
CYLINDER
ASSY. - bucket, left hand, Inlcudes: Ref. 2 - 19
1шт.
1
G33562
CYLINDER
ASSY. - bucket, right hand, Inlcudes: Ref. 2 - 19
1шт.
2
D35103
TUBE
ASSY. - cylinder body, left hand, Inlcudes: Ref. 3
1шт.
2
D35102
TUBE
ASSY. - cylinder body, right hand, Inlcudes: Ref. 3
1шт.
3
D31511
BUSHING
- tube trunnion
2шт.
4
G33570
GLAND
ASSY. - w/bushing, Inlcudes: Ref. 5 - 8
1шт.
5
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")
1шт.
Part of cylinder repair seal kit P/N G33572
1шт.
6
D36970
CUP
SEAL - piston rod (1-3/4 x 2-1/4 x 2-1/4 x 7/16")
1шт.
Part of cylinder repair seal kit P/N G33572
1шт.
7
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
"O" RING - gland (3 x 3-1/4 x 1/8")
1шт.
Part of cylinder repair seal kit P/N G33572
1шт.
8
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- gland "O" ring back-up
1шт.
Part of cylinder repair seal kit P/N G33572
1шт.
9
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
10
G33563
ROD
ASSY. - piston (1-3/4" dia.), Inlcudes: Ref. 11
1шт.
11
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- piston rod
2шт.
12
G33331
PISTON
- split (Rod end)
1шт.
13
D28896
PISTON
- split (Bolt end)
1шт.
G33151
PACKING
ASSY. - piston, Inlcudes: Ref. 15 and 16
1шт.
Part of cylinder repair seal kit P/N G33572
1шт.
15
NSS
NOT SOLD SEPARAT
PACKING ASSY. - "V" type
2шт.
16
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
17
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
18
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- piston bolt (1-7/64 x 1-7/8 x 9/64")
1шт.
19
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease (1/8" P.T., 45 degree)
1шт.
G33572
SEAL
KIT - cylinder repair, Includes: Ref. 5 thru 8 and 13
1шт.
