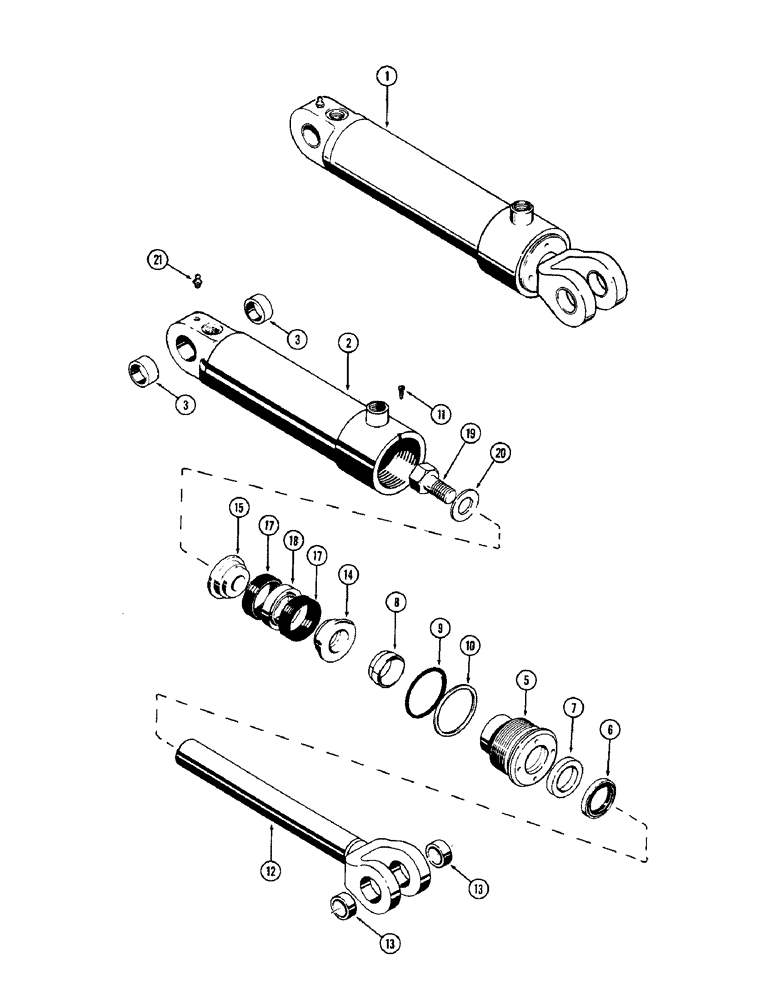

Запчасти Case 680CK (253A) - G33555 LOADER HYDRA-LEVELING CYLINDER, 3" DIA. CYLINDER WITH 7 1/4 STROKE GLAND W/ INNER WIPER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
G33555
CYLINDER
ASSY. - hydra-leveling, Inlcudes: Ref. 2 - 21
2шт.
2
D35129
CYLINDER
TUBE ASSY. - cylinder body, Inlcudes: Ref. 3
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube
2шт.
G33579
COVER
GLAND ASSY., Inlcudes: Ref. 5 - 10
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND
1шт.
6
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
7
D36970
CUP
SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
8
D27432
SHIM
- piston rod, inner
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
9
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
"O" RING - gland (3 x 3-1/4 x 1/8")
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
10
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- gland "O" ring back-up
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
11
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
12
G33556
ROD
ASSY. - piston (1-3/4" dia.), Inlcudes: Ref. 13
1шт.
13
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- piston rod
2шт.
14
G33331
PISTON
- split (Rod end)
1шт.
15
D28896
PISTON
- split (Bolt end)
1шт.
G33151
PACKING
ASSY. - piston, Inlcudes: Ref. 17 and 18
1шт.
Part of cylinder repair seal kit P/N G32289
1шт.
17
NSS
NOT SOLD SEPARAT
PACKING ASSY. - "V" type
2шт.
18
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
19
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
20
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- piston bolt (1-7/64 x 1-7/8 x 9/64")
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T., str.)
1шт.
G32289
SEAL
KIT - cylinder repair, Includes: Ref. 6 thru 10 and 15
1шт.
