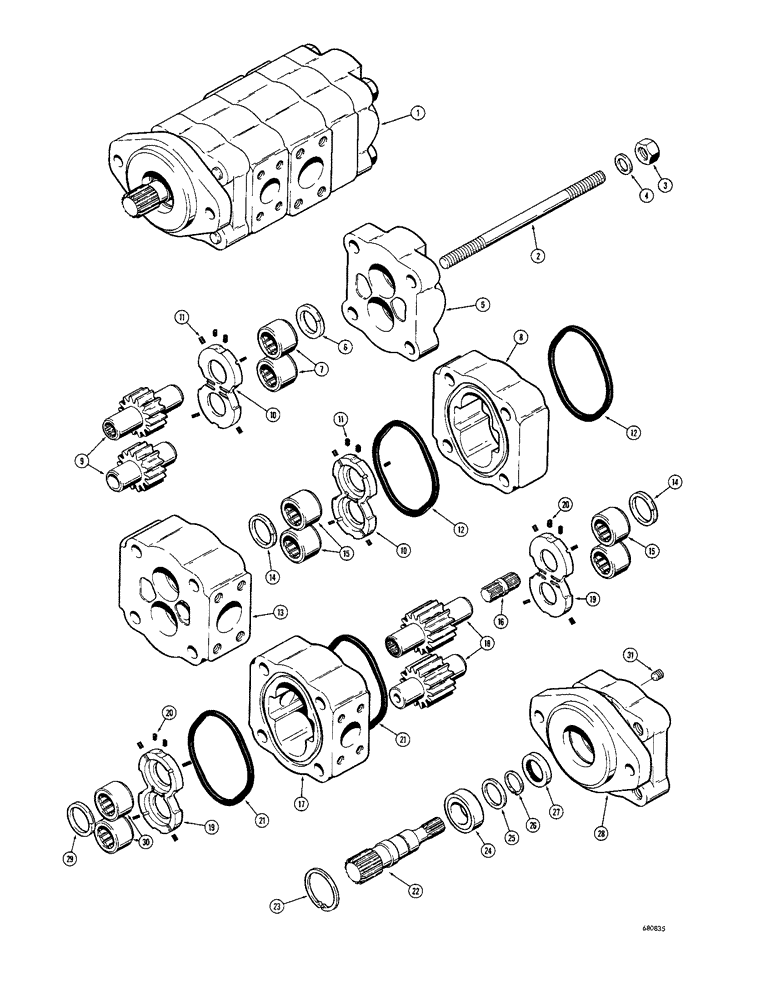

Запчасти Case 680CK (234) - L26379 EQUIPMENT PUMP (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L26379
PUMP
ASSEMBLY - hydraulic, 25 G.P.M. and 17 G.P.M. (42 G.P.M. total) at 2000 P.S.I. at 2000 R.P.M. (Commercial shearing #P30B597), Inlcuded: Ref. 2 - 31
1шт.
2
L32111
STUD
- special (5/8" - 11 NC x 9-3/4")
4шт.
3
86625068
NUT,5/8"-11, G8
- hex. (5/8" - 11 NC)
4шт.
4
D31957
WASHER
- special
4шт.
L32109
COVER
ASSEMBLY - closed end, Inlcuded: Ref. 5 - 7
1шт.
5
NSS
NOT SOLD SEPARAT
COVER - pump end
1шт.
6
L30296
RETAINER
RING - seal, bronze
1шт.
7
L32097
BEARING, ROLLER, CYL
- roller
2шт.
8
L32108
HOUSING
- gear (1" wide gears)
1шт.
9
L32107
GEAR
S - matched set, drive and driven (1" wide)
1шт.
10
L32101
PLATE
- thrust
2шт.
11
L32099
SEAL
- pocket, thrust plate
12шт.
12
L32100
SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro
- ring, square edge
2шт.
L32105
CARRIER
ASSEMBLY - bearing, Inlcuded: Ref. 13 - 15
1шт.
13
NSS
NOT SOLD SEPARAT
CARRIER - bearing
1шт.
14
L32096
RING
- seal, bronze
2шт.
15
L32097
BEARING, ROLLER, CYL
- roller
4шт.
16
L32104
SHAFT
- connecting, drive gears
1шт.
17
L32103
HOUSING - gear (1-1/2" wide gears)
1шт.
18
L32102
GEAR WHEEL
GEARS - matched set, drive and driven (1-1/2" wide)
1шт.
19
L32101
PLATE
- thrust
2шт.
20
L32099
SEAL
- pocket, thrust plate
12шт.
21
L32100
SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro
- ring, square edge
2шт.
22
L32098
SHAFT
- drive pump
1шт.
23
71466
SNAP RING,#206, 2.190", Int, Spiral
RING - shaft retainer
1шт.
24
NLS
NO LONGER SERVICED
BEARING - drive shaft
1шт.
25
L32092
WASHER
RETAINER - bearing
1шт.
26
D31951
SNAP RING
RING - snap, bearing retainer
1шт.
27
L32093
SEAL
- lip, drive shaft
1шт.
L32094
COVER ASSY
COVER ASSEMBLY - shaft end, Inlcuded: Ref. 28 - 31
1шт.
28
NSS
NOT SOLD SEPARAT
COVER - pump end
1шт.
29
L32096
RING
- seal, bronze
1шт.
30
L32097
BEARING, ROLLER, CYL
- roller
2шт.
31
L32320
PLUG
SCREW - special (7/16" - 20 NF x 3/8")
1шт.
Выбрано товаров: 34
