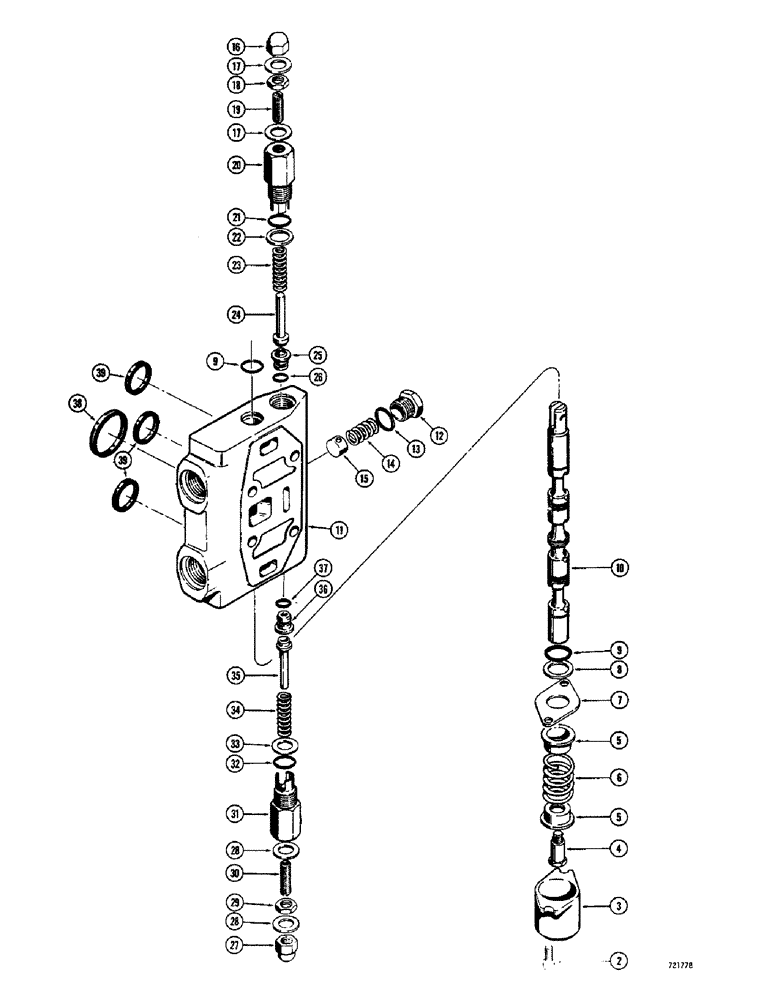

Запчасти Case 680CK (230) - BACKHOE CONTROL VALVE, L33847 BOOM SECTION (35) - HYDRAULIC SYSTEMS

1

L33847

BOOM

SECTION - backhoe control valve (Not shown), Inlcuded: Ref. 2 - 39

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - boom section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper, special

1шт.

5

D32130

GUIDE

- spring

2шт.

6

L33849

VALVE SPRING

SPRING - centering

1шт.

7

R20556

PLATE - retaining

1шт.

8

D32215

RING

- backup

1шт.

9

D29898

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - boom section

1шт.

12

39007

CAP

- check valve

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O"ring

1шт.

14

R15308

VALVE SPRING

SPRING - check valve

1шт.

15

D45694

SPOOL

POPPET - check valve

1шт.

D39454

CARTRIDGE

- secondary relief, upper (Not preset) must be set to correct pressure when installed on valve, Inlcuded: Ref. 16 - 26

1шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

- carn (3/8" - 24 NF)

1шт.

17

23150

WASHER

GASKET - copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

19

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

21

D26872

O-RING

SEAL - "O"ring, 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

- gasket

1шт.

23

D40778

VALVE SPRING

SPRING - relief valve

1шт.

D40189

PACKAGE

KIT - seat and poppet, Inlcuded: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42866

VALVE

CARTRIDGE - secondary relief, lower (Not preset) must be set to correct pressure when installed on valve, Inlcuded: Ref. 27 - 37

1шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

28

23150

WASHER

GASKET - copper

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

30

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

32

D26872

O-RING

SEAL - "O"ring, 1/2" I.D. x 5/8" O.D.

1шт.

33

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet, Inlcuded: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

3шт.

36

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

38

L32985

GASKET

- square section, 1-13/16" I.D. x 2" O.D.

1шт.

39

L35522

O-RING

SEAL - square section, 1-9/16" I.D. x 1-3/4" O.D.

3шт.
