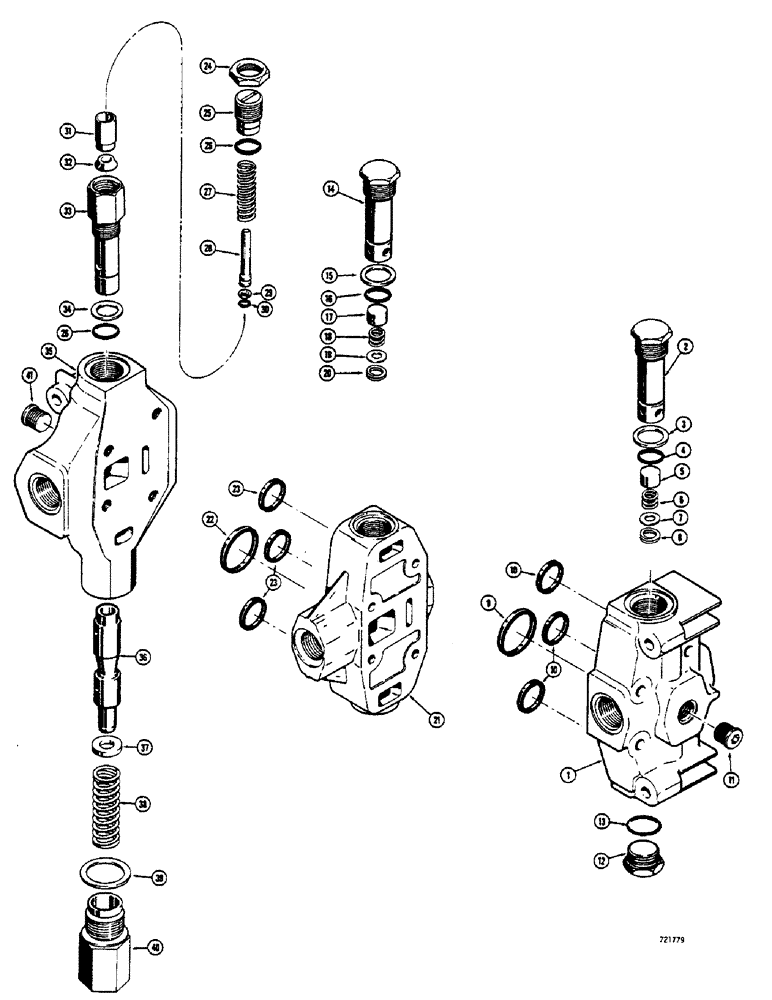

Запчасти Case 680CK (222) - BACKHOE CONTROL VALVE, L35520 END INLET SECTION, L35521 (35) - HYDRAULIC SYSTEMS

L35520

X

INLET SECTION - backhoe control valve, end, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

D40775

VALVE

ASSEMBLY - check, Includes: Ref. 2 - 8

1шт.

2

D40819

CARTRIDGE - check valve

1шт.

3

D40822

WASHER

GASKET - cartridge

1-2шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

D40820

POPPET - check valve

1шт.

6

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

7

D40821

RETAINER

- spring

1шт.

8

R15512

SNAP RING,#87, .929", Int, Spiral

RING - spirolox

1шт.

9

L32985

GASKET

- square section, 1-13/16" I.D. x 2" O.D.

1шт.

10

L35522

O-RING

SEAL - square section, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

11

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex. socket head (3/4" NPT)

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve body, Includes Ref. 13 Hex Hd, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

L35521

INLET SECTION - center, backhoe control valve, Includes: Ref. 14 - 23

1шт.

D40775

VALVE

ASSEMBLY - check, center inlet section, Includes: Ref. 14 - 20

1шт.

14

D40819

CARTRIDGE - check valve, center inlet section

1шт.

15

D40822

WASHER

GASKET - cartridge, center inlet section

1шт.

16

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring, center inlet section

1шт.

17

D40820

POPPET - check valve, center inlet section

1шт.

18

D26826

COMPRESSION SPRING

SPRING - check valve, center inlet section

1шт.

19

D40821

RETAINER

- spring, center inlet section

1шт.

20

R15512

SNAP RING,#87, .929", Int, Spiral

RING - spirolox, center inlet section

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - inlet section, secondary, center

1шт.

22

L32985

GASKET

- square section, 1-13/16" I.D. x 2" O.D., center inlet

1шт.

23

905952R1

COTTER PIN,M3.2 x 50

SEAL - square section, 1-9/16" I.D. x 1-3/4" O.D., center inlet

3шт.

D47623

VALVE BLOCK

OUTLET SECTION - backhoe control valve, Includes: Ref. 24 - 34

1шт.

D32126

FILTER

CARTRIDGE - relief, outlet section

1шт.

24

R12507

LOCK NUT

- lock, adjusting screw, outlet section

1шт.

25

R21364

SCREW

- spring adjusting, outlet section

1шт.

26

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring, outlet section

2шт.

27

D32476

SPRING

- compression, outlet section

1шт.

28

R16125

PLUNGER

- displacement, outlet section

1шт.

29

R12509

RING

- backup, outlet section

1шт.

30

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O"ring, outlet section

1шт.

31

R12510

SEAT

- floating, outlet section

1шт.

32

R16123

WASHER, THRUST

SNUBBER - check valve, outlet section

1шт.

33

D39700

KIT

SHELL ASSEMBLY - cartridge, outlet section

1шт.

34

D40822

WASHER

- gasket, outlet section

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - outlet section, outlet section

1шт.

36

D40827

SPOOL - regeneration, oulet section

1шт.

37

D36807

SPACER

- spool, outlet section

1шт.

38

D36600

VALVE SPRING

SPRING - spool, outlet section

1шт.

39

D40759

GASKET

- cap, outlet section

1шт.

40

D47666

CYLINDER END CAP

CAP - outlet section, outlet section

1шт.

41

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex. socket head (3/4" NPT), outlet section

1шт.
