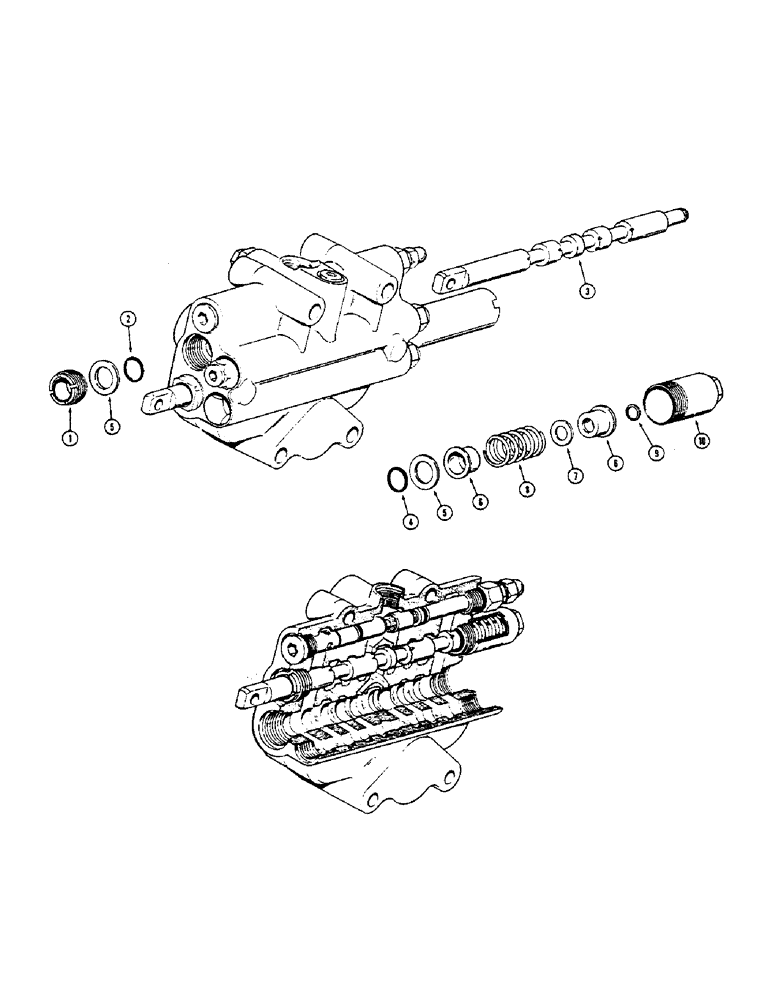

Запчасти Case 680CK (216) - LOADER CONTROL VALVE, DROTT CLAM SPOOL (35) - HYDRAULIC SYSTEMS

D37050

SPOOL

ASSEMBLY - clam, Includes: Ref. 1 - 10

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - clam control

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25291

CAP

- relief valve

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.
