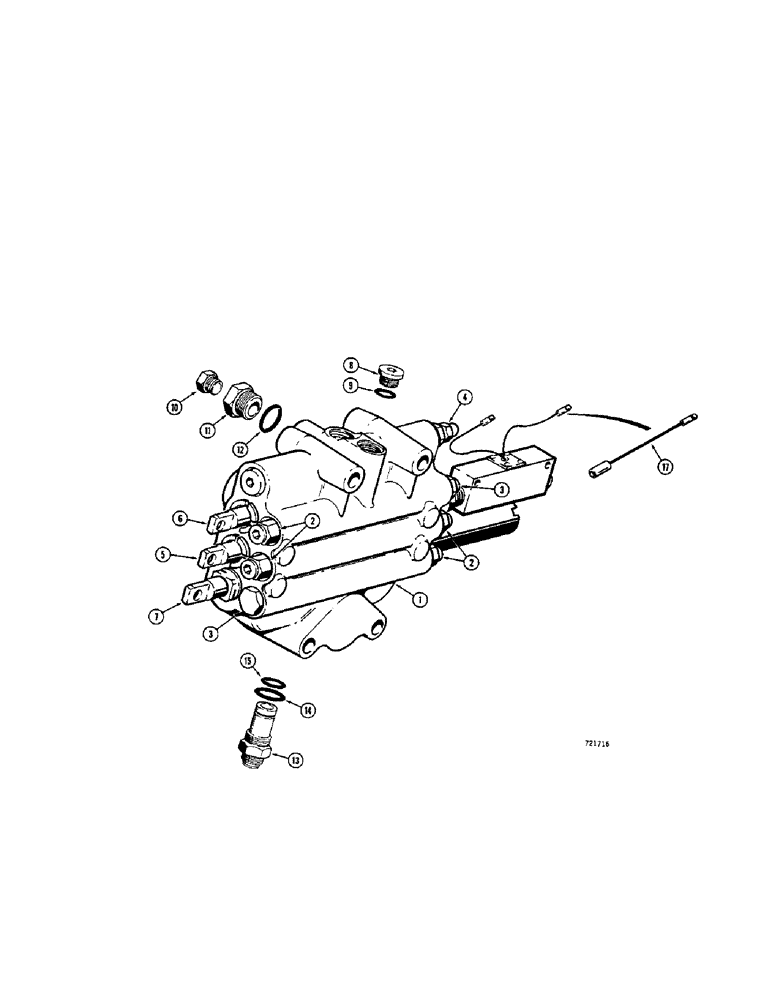

Запчасти Case 680CK (212[A]) - L52725 LOADER CONTROL VALVE - 3 SPOOL (35) - HYDRAULIC SYSTEMS

1

L52725

VALVE

- loader control, 3 spool, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, Parts list Figure 218

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, Parts list Figure 218

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, Parts list Figure 216

1шт.

5

L35090

SPOOL

- tilt with magnetic detent, Parts list Figure 215A

1шт.

6

D37050

SPOOL

- clam, without magnetic detent, Parts list Figure 216

1шт.

7

L32150

SPOOL

- lift, Parts list Figure 214

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

10

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

11

D38825

ADAPTER

- pressure check, Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, adapter

1шт.

13

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 14 and 15

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, connector (Large)

1шт.

15

L32680

RING

SEAL - "O"ring, connector (Small)

1шт.

17

L52720

ELECTRICAL WIRE

CONNECTOR AND WIRE - harness

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
