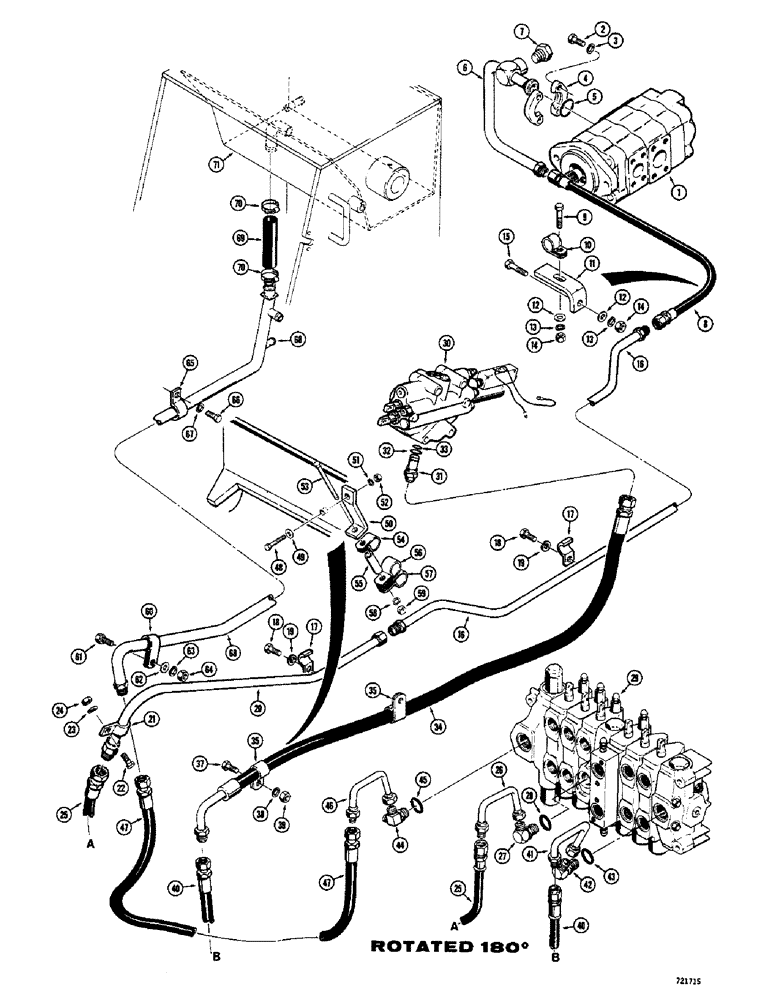

Запчасти Case 680CK (208) - BACKHOE HYD. - COMMERCIAL VALVE, CONTROL VALVE PRESSURE & RETURN LINES( BEFORE BACKHOE S/N 9111708 (35) - HYDRAULIC SYSTEMS

1

L26379

PUMP

- equipment hydraulic, Parts list Figure 234

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

A16961

FLANGE

- split, 3/4"

2шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

6

L53121

TUBE,8, 7.5" L

- pump to backhoe valve, center inlet (At pump)

1шт.

7

221-655

PLUG,Hex Hd, 3/4"-14

- pipe, hex. head (3/4" NPT)

1шт.

8

D31796

HOSE

- pump to backhoe (29" long)

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

11

L47867

BRACKET - hose clamp

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

13

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

15

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

16

L54278

TUBE - pump to backhoe valve, center inlet (Intermediate) 0.75" OD x 66, 2" L

1шт.

17

L25930

CLAMP

- tube

2шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

20

L54280

TUBE,0.75" OD

- pump to backhoe valve, center inlet (Rear)

1шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

25

L53654

HOSE - backhoe valve, center inlet (33-1/2" long)

1шт.

26

L26462

TUBE ASSY.

TUBE - to backhoe valve, center inlet

1шт.

27

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

29

L53732

LOCK VALVE

VALVE - hydraulic, backhoe control, Parts list Figure 220

1шт.

30

REF

INSTRUCTION

VALVE - loader control (See page 212 for proper valve)

1шт.

31

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 32 and 33

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, connector (Large)

1шт.

33

L32680

RING

SEAL - "O"ring, connector (Small)

1шт.

34

L55420

HOSE

- loader valve to backhoe valve, end inlet (64" long) when stock is exhausted, supply L55626 for service

1шт.

34

L55626

HOSE ASSY.

HOSE - loader valve to backhoe valve, end inlet (65" long)

1шт.

35

D25156

CLAMP

- hose

2шт.

37

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

L53653

HOSE ASSY.

HOSE - tube to backhoe valve, end inlet (41" long)

1шт.

41

L51552

TUBE

- at backhoe valve, end inlet

1шт.

42

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 43 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

43

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

44

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 45

1шт.

45

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

46

L51396

TUBE

- return, valve, Serial Range: outlet-reservoir

1шт.

47

L16417

HOSE ASSY.

HOSE - return, backhoe valve to reservoir (52-1/2" long)

1шт.

48

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

49

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

50

L47541

BRACKET

- hose clamp support

1шт.

51

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

52

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

53

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

54

D40471

CLAMP

- hose, upper

1шт.

55

G49622

SPACER,5/8" Tube x 1 7/16"

- hose clamp

1шт.

56

D40471

CLAMP

- hose, center

1шт.

57

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose, lower

1шт.

58

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

59

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

60

D40471

CLAMP

- tube

1шт.

61

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

62

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

63

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

64

9635082

NUT,5/16" - 18, Gr 5

- (5/16" - 18 NC)

1шт.

65

A14183

CLAMP - tube

1шт.

66

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

67

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

68

L53576

TUBE,1.25" OD

- return, backhoe valve to reservoir

1шт.

69

L53566

HOSE ASSY.

HOSE - return, backhoe, Serial Range: valve-reservoir

1шт.

70

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

71

REF

INSTRUCTION

TANK - hydraulic oil reservoir, See Figure 132 for complete chassis

1шт.
