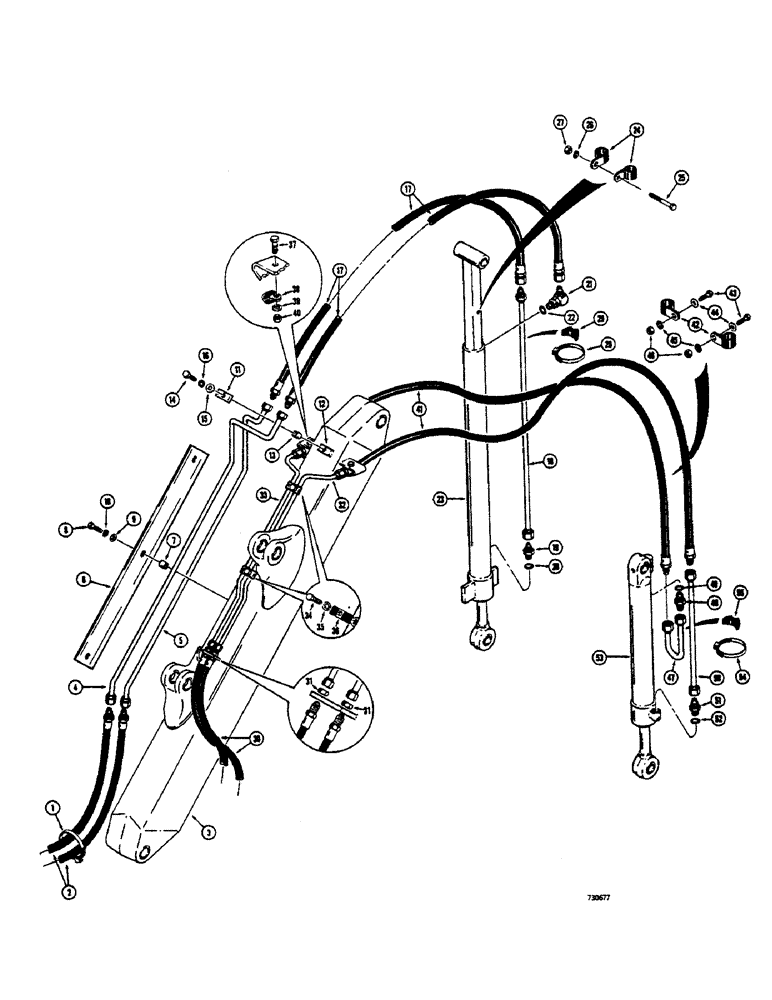

Запчасти Case 680CK (207C) - HYDRAULIC EXTENDABLE DIPPER, FOUR FOOT EXTENSION HYDRAULICS, ( EXTENSON HYD. AND CYLINDERS) (35) - HYDRAULIC SYSTEMS

1

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose retaining

1шт.

2

L54686

HOSE ASSY.

HOSE - extendahoe control valve to extension cylinder (80" long)

2шт.

3

REF

INSTRUCTION

BOOM - backhoe, Parts list Figure 176

1шт.

4

L54641

TUBE - boom, extendahoe control valve to extension cylinder (Closed end) 0.5" OD

1шт.

5

L54643

TUBE - boom, extendahoe control valve to extension cylinder (Rod end) 0.5" OD

1шт.

6

L54633

GUARD - tube, extendahoe hydraulic tubes

1шт.

7

L54631

SPACER - tube guard

3шт.

8

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

9

195-104

WASHER,3/8"

- flat () zinc plated 3/8"

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

A14078

CLAMP

- tubes

1шт.

12

D39023

BLOCK

- tube clamp

1шт.

13

D33551

BUSHING

SPACER - tube clamp

1шт.

14

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

1шт.

16

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

17

L54654

HOSE ASSY.

HOSE - boom tube to extension cylinder (31" long)

2шт.

18

L54652

TUBE

- extension cylinder

1шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, Incl. Ref 20 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

23

G34426

CYLINDER

- extension, Parts list Figure 269C

1шт.

24

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

25

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - saddle

1шт.

29

D38648

BLOCK

SADDLE - clamp

1шт.

30

L50242

HOSE ASSY.

HOSE - manifold to bucket cylinder, rod end and closed end (60" long)

2шт.

31

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex., jam (Special)

2шт.

32

D44680

TUBE - bucket cylinder, R.H.

1шт.

33

D44682

TUBE - bucket cylinder, L.H.

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

36

D40236

CLAMP

- tube

2шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

D40471

CLAMP

- tube

2шт.

39

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

40

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

41

L54504

HOSE ASSY.

HOSE - backhoe control valve to bucket cylinder (91" long)

2шт.

42

D40471

CLAMP

- hose

2шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

44

195-104

WASHER,3/8"

- flat () zinc plated 3/8"

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

47

L54509

TUBE,0.75" OD

- hose to bucket cylinder, closed end

1шт.

48

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 49 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

50

L54503

TUBE - hose to bucket cylinder, rod end 0.75" OD x 25.6" L

1шт.

51

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 52 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

53

G33834

CYLINDER

- bucket, Parts list Figures 270 and 271A

1шт.

54

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - saddle

1шт.

55

D38648

BLOCK

SADDLE - clamp

2шт.
