(288) - G33599 AND G33603 LOADER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER WITH 31" STROKE WITH GLAND I.D. RING

Запчасти Case 680CK (288) - G33599 AND G33603 LOADER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER WITH 31" STROKE WITH GLAND I.D. RING (35) - HYDRAULIC SYSTEMS

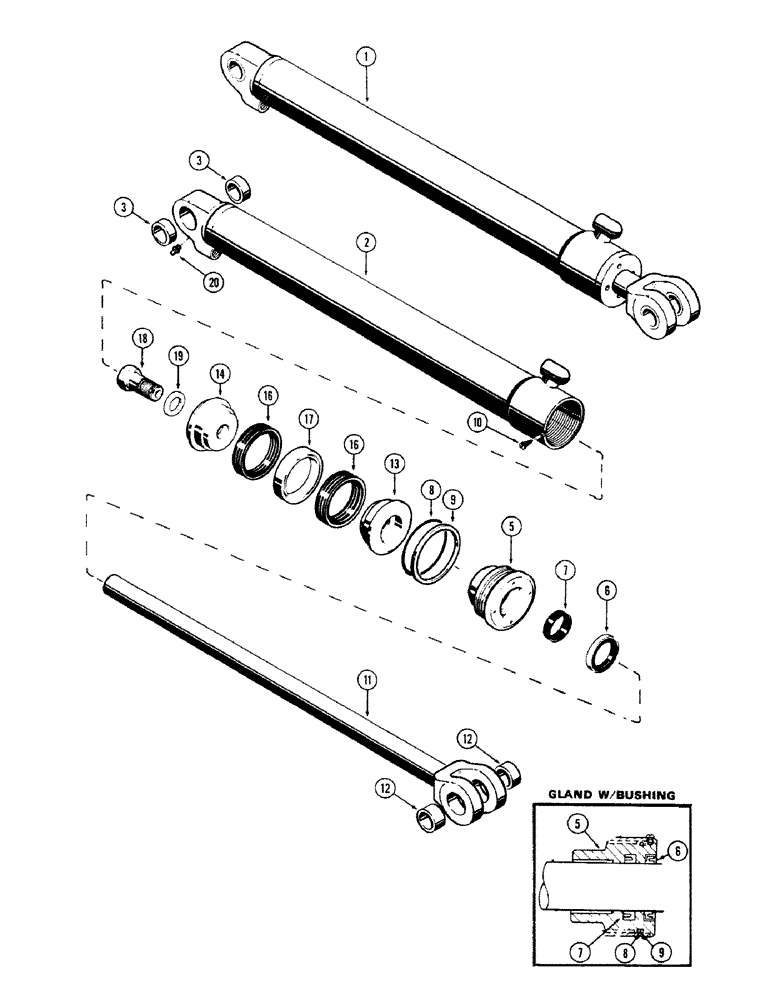

Схема запчастей Case 680CK - (288) - G33599 AND G33603 LOADER LIFT CYLINDERS, 3-1/2" DIA. CYLINDER WITH 31" STROKE WITH GLAND I.D. RING (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G33599

CYLINDER

ASSY. - lift, right hand

1шт.

1

G33603

CYLINDER

ASSY. - lift, left hand

1шт.

2

D35064

TUBE

ASSY. - cyl. body, right hand

1шт.

2

D35063

TUBE

ASSY. - cyl. body, left hand

1шт.

3

D35071

BUSHING

- tube

2шт.

G33191

GLAND

ASSY. - w/bushing (See inset)

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G33638

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2" x 13/32")

1шт.

Part of seal kit cylinder repair P/N G33638

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G33638

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G33638

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

G33600

ROD

ASSY. - pisotn (Used w/G33599 R.H. cyl.) (2" dia.) (w/identification ring)

1шт.

11

G33604

ROD

ASSY. - piston (Used w/G33603 L.H. cyl.) (2" dia.) (w/identification ring)

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G33167

PISTON

- split (Rod end) (w/identification ring)

1шт.

14

D28367

PISTON

- split (Bolt end)

1шт.

G33237

PACKING

ASSY. - piston

1шт.

Part of seal kit cylinder repair P/N G33638

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G33638

KIT

SEAL KIT - cylinder repair, Incl. Refs. 6, 7, 8, 9 and G33237

1шт.
