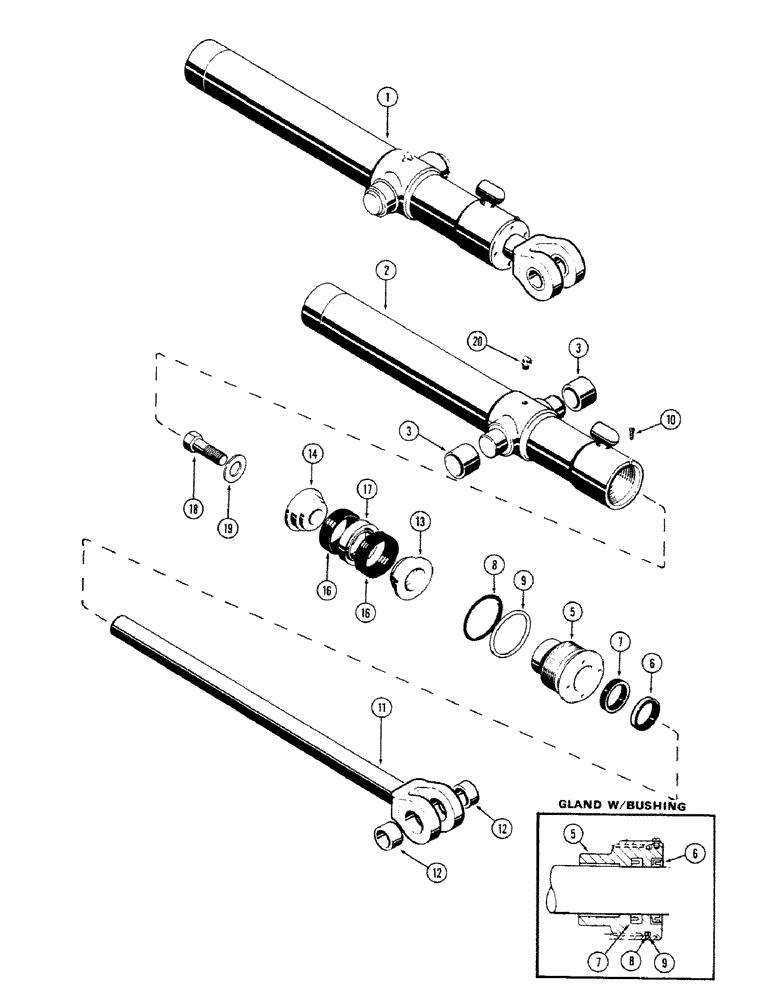

Запчасти Case 680CK (282) - G33561 AND G33562 LOADER TILT CYLINDERS, 3" DIA. CYLINDER WITH 23-1/2" STROKE W/ GLAND I.D. RING (35) - HYDRAULIC SYSTEMS

1

G32561

CYLINDER ASSY. - tilt, left hand, Includes: Ref. 2 - 20

1шт.

1

G32562

PLUNGER

CYLINDER ASSY. - tilt, right hand, Includes: Ref. 2 - 20

1шт.

2

D35103

TUBE

ASSY. - cyl. body, left hand, Includes: Ref. 3

1шт.

2

D35102

TUBE

ASSY. - cyl. body, right hand, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunion

2шт.

G33570

GLAND

ASSY. - w/bushing (See inset), Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G33572

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 13/32")

1шт.

Part of seal kit P/N G33572

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G33572

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G33572

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

G33563

ROD

ASSY. - piston (1-3/4" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G33331

PISTON

- split (Rod end) (w/identification ring)

1шт.

14

D28896

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 16 and 17

1шт.

Part of seal kit P/N G33572

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degrees)

1шт.

G33572

SEAL

KIT - cylinder repair, Incl. Refs. 6, 7, 8, 9 and G33151

1шт.
